Cisco® 200-301 Exam (page: 7)
Cisco® Certified Network Associate (CCNA)
Updated on: 25-Dec-2025

Viewing Page 7 of 281
200-301 PDF 1395 Questions

What are two descriptions of three-tier network topologies? (Choose two.)

  1. The distribution layer runs Layer 2 and Layer 3 technologies
  2. The network core is designed to maintain continuous connectivity when devices fail
  3. The access layer manages routing between devices in different domains
  4. The core layer maintains wired connections for each host
  5. The core and distribution layers perform the same functions

Answer(s): A,B



Which type of IPv6 address is publicly routable in the same way as IPv4 public addresses?

  1. multicast
  2. unique local
  3. link-local
  4. global unicast

Answer(s): D



What is the expected outcome when an EUI-64 address is generated?

  1. The interface ID is configured as a random 64-bit value
  2. The characters FE80 are inserted at the beginning of the MAC address of the interface
  3. The seventh bit of the original MAC address of the interface is inverted
  4. The MAC address of the interface is used as the interface ID without modification

Answer(s): C



A corporate office uses four floors in a building.
-Floor 1 has 24 users.
-Floor 2 has 29 users.
-Floor 3 has 28 users.
-Floor 4 has 22 users.

Which subnet summarizes and gives the most efficient distribution of IP addresses for the router configuration?

  1. 192.168.0.0/24 as summary and 192.168.0.0/28 for each floor
  2. 192.168.0.0/23 as summary and 192.168.0.0/25 for each floor
  3. 192.168.0.0/25 as summary and 192.168.0.0/27 for each floor
  4. 192.168.0.0/26 as summary and 192.168.0.0/29 for each floor

Answer(s): C

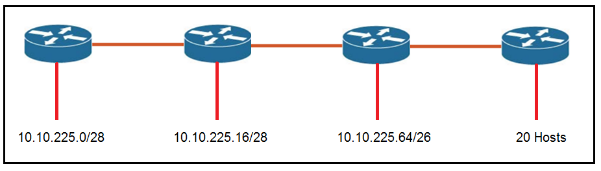

Refer to the exhibit. An engineer must add a subnet for a new office that will add 20 users to the network. Which IPv4 network and subnet mask combination does the engineer assign to minimize wasting addresses?

  1. 10.10.225.48 255.255.255.240
  2. 10.10.225.32 255.255.255.240
  3. 10.10.225.48 255.255.255.224
  4. 10.10.225.32 255.255.255.224

Answer(s): D
