Cisco® 200-301 Exam (page: 8)
Cisco® Certified Network Associate (CCNA)
Updated on: 25-Dec-2025

Viewing Page 8 of 281
200-301 PDF 1395 Questions

What is a characteristic of spine-and-leaf architecture?

  1. Each link between leaf switches allows for higher bandwidth.
  2. It provides greater predictability on STP blocked ports.
  3. It provides variable latency.
  4. Each device is separated by the same number of hops.

Answer(s): D



An office has 8 floors with approximately 30-40 users per floor. One subnet must be used. Which command must be configured on the router Switched Virtual
Interface to use address space efficiently?

  1. ip address 192.168.0.0 255.255.0.0
  2. ip address 192.168.0.0 255.255.254.0
  3. ip address 192.168.0.0 255.255.255.128
  4. ip address 192.168.0.0 255.255.255.224

Answer(s): B



DRAG DROP (Drag and Drop is not supported)
Drag and drop the descriptions of IP protocol transmissions from the left onto the IP traffic types on the right.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



A device detects two stations transmitting frames at the same time. This condition occurs after the first 64 bytes of the frame is received. Which interface counter increments?

  1. runt
  2. collision
  3. late collision
  4. CRC

Answer(s): C

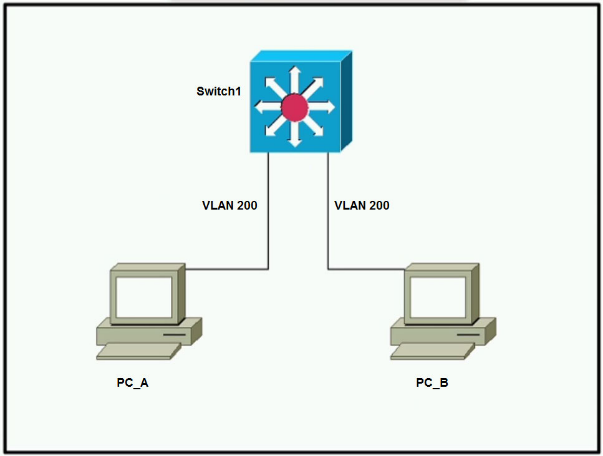

Refer to the exhibit. Which outcome is expected when PC_A sends data to PC_B after their initial communication?

  1. The source MAC address is changed.
  2. The destination MAC address is replaced with ffff.ffff.ffff.
  3. The source and destination MAC addresses remain the same.
  4. The switch rewrites the source and destination MAC addresses with its own.

Answer(s): C
