Cisco 200-301 Exam (page: 20)
Cisco Certified Network Associate (CCNA)
Updated on: 09-Feb-2026

Viewing Page 20 of 281
200-301 PDF 1395 Questions

DRAG DROP (Drag and Drop is not supported)

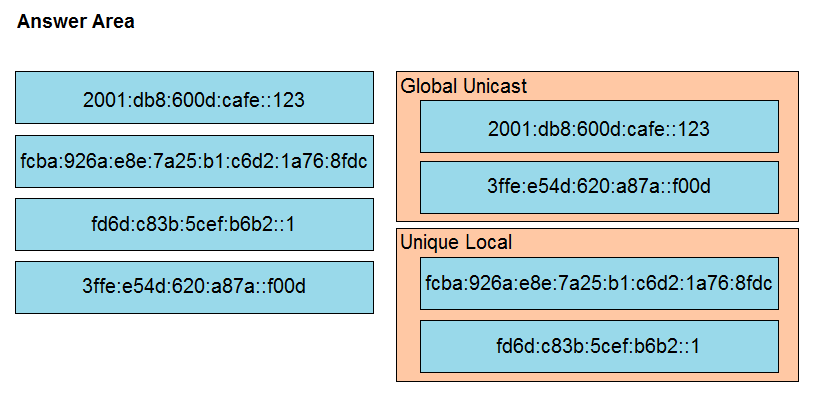

Drag and drop the IPv6 addresses from the left onto the corresponding address types on the right.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:


Reference:

https://learningnetwork.cisco.com/s/question/0D53i00000Kt6kl/ipv6-unique-local-addresses



Which type of organization should use a collapsed-core architecture?

  1. small and needs to reduce networking costs
  2. large and must minimize downtime when hardware fails
  3. large and requires a flexible, scalable network design
  4. currently small but is expected to grow dramatically in the near future

Answer(s): A

Explanation:

It is ideal for small companies: The collapsed core model is a reduced version of the three-tier model. The deduction was made to create a network for small and medium-sized campuses. Therefore, smaller institutions can get the advantage of using a collapsed core network while still gaining the same benefits they would if they were using a three-tier model. Small organizations often cannot afford the hardware and human resources to run the network can benefit greatly with less oversight necessary.
And reduces cost: In a traditional three-tier campus network, the core layer is typically a complex and expensive piece of hardware. This layer is eliminated with collapsed core architecture, reducing both cost and complexity.



A network administrator is setting up a new IPv6 network using the 64-bit address 2001:0EB8:00C1:2200:0001:0000:0000:0331/64. To simplify the configuration, the administrator has decided to compress the address. Which IP address must the administrator configure?

  1. ipv6 address 2001:EB8:C1:22:1::331/64
  2. ipv6 address 21:EB8:C1:2200:1::331/64
  3. ipv6 address 2001:EB8:C1:2200:1:0000:331/64
  4. ipv6 address 2001:EB8:C1:2200:1::331/64

Answer(s): D



DRAG DROP (Drag and Drop is not supported)

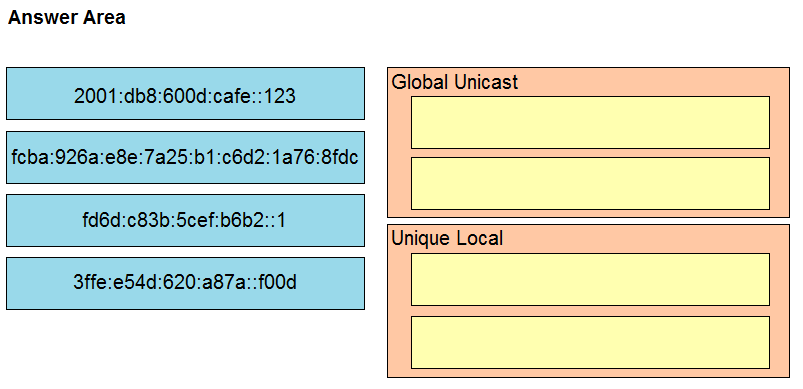

Drag and drop the IPv6 addresses from the left onto the corresponding address types on the right.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



What is an appropriate use for private IPv4 addressing?

  1. to allow hosts inside to communicate in both directions with hosts outside the organization
  2. on internal hosts that stream data solely to external resources
  3. on the public-facing interface of a firewall
  4. on hosts that communicate only with other internal hosts

Answer(s): D
