Cisco 200-301 Exam (page: 40)
Cisco Certified Network Associate (CCNA)
Updated on: 12-Feb-2026

Viewing Page 40 of 281
200-301 PDF 1395 Questions

Two switches are connected and using Cisco Dynamic Trunking Protocol. SW1 is set to Dynamic Auto and SW2 is set to Dynamic Desirable. What is the result of this configuration?

  1. The link becomes an access port.
  2. The link is in an error disabled state.
  3. The link is in a down state.
  4. The link becomes a trunk port.

Answer(s): D



A Cisco IP phone receives untagged data traffic from an attached PC. Which action is taken by the phone?

  1. It drops the traffic.
  2. It allows the traffic to pass through unchanged.
  3. It tags the traffic with the native VLAN.
  4. It tags the traffic with the default VLAN.

Answer(s): B

Explanation:

Untagged traffic from the device attached to the Cisco IP Phone passes through the phone unchanged, regardless of the trust state of the access port on the phone.


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst2960/software/release/12-2_40_se/configuration/guide/scg/swvoip.pdf



Which design element is a best practice when deploying an 802.11b wireless infrastructure?

  1. allocating nonoverlapping channels to access points that are in close physical proximity to one another
  2. disabling TCP so that access points can negotiate signal levels with their attached wireless devices
  3. configuring access points to provide clients with a maximum of 5 Mbps
  4. setting the maximum data rate to 54 Mbps on the Cisco Wireless LAN Controller

Answer(s): A

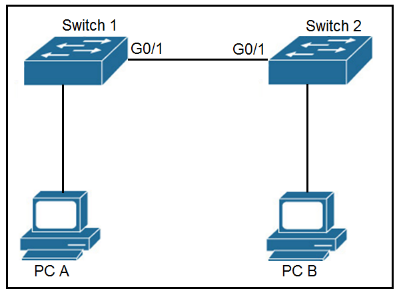

Refer to the exhibit. The network administrator wants VLAN 67 traffic to be untagged between Switch 1 and Switch 2, while all other VLANs are to remain tagged.
Which command accomplishes this task?

  1. switchport access vlan 67
  2. switchport trunk allowed vlan 67
  3. switchport private-vlan association host 67
  4. switchport trunk native vlan 67

Answer(s): D



Which two command sequences must be configured on a switch to establish a Layer 3 EtherChannel with an open-standard protocol? (Choose two.)

  1. interface GigabitEthernet0/0/1 channel-group 10 mode auto
  2. interface GigabitEthernet0/0/1 channel-group 10 mode on
  3. interface port-channel 10 no switchport ip address 172.16.0.1 255.255.255.0
  4. interface GigabitEthernet0/0/1 channel-group 10 mode active
  5. interface port-channel 10 switchport switchport mode trunk

Answer(s): C,D



Viewing Page 40 of 281
