Cisco 200-301 Exam (page: 42)
Cisco Certified Network Associate (CCNA)
Updated on: 12-Feb-2026

Viewing Page 42 of 281
200-301 PDF 1395 Questions

In a CDP environment, what happens when the CDP interface on an adjacent device is configured without an IP address?

  1. CDP becomes inoperable on that neighbor
  2. CDP uses the IP address of another interface for that neighbor
  3. CDP operates normally, but it cannot provide IP address information for that neighbor
  4. CDP operates normally, but it cannot provide any information for that neighbor

Answer(s): B



DRAG DROP (Drag and Drop is not supported)

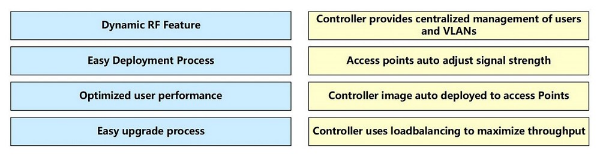

Drag and drop the benefits of a Cisco Wireless Lan Controller from the left onto the correct examples on the right.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

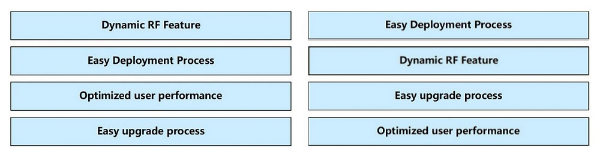

Explanation:



When configuring an EtherChannel bundle, which mode enables LACP only if a LACP device is detected?

  1. Passive
  2. Desirable
  3. On
  4. Auto
  5. Active

Answer(s): A

Explanation:

The LACP is Link Aggregation Control Protocol. LACP is an open protocol, published under the 802.3ad.
The modes of LACP are active, passive or on. The side configured as “passive” will waiting the other side that should an Active for the Etherchannel to be established.
PAgP is Port-Aggregation Protocol. It is Cisco proprietary protocol. The mode are On, Desirable or Auto. Desirable “" Auto will establish an EtherChannel.
An example of how to configure an Etherchannel:

SwitchFormula1>enable -
SwitchFormula1#configure terminal
SwitchFormula1(config)# interface range f0/5 -14
SwitchFormula1(config-if-range)# channel-group 13 mode ?
active Enable LACP unconditionally
auto Enable PAgP only if a PAgP device is detected
desirable Enable PAgP unconditionally
on Enable Etherchannel only
passive Enable LACP only if a LACP device is detected



Refer to the exhibit. Which VLAN ID is associated with the default VLAN in the given environment?

  1. VLAN 1
  2. VLAN 5
  3. VLAN 10
  4. VLAN 20

Answer(s): A



Which two VLAN IDs indicate a default VLAN? (Choose two.)

  1. 0
  2. 1
  3. 1005
  4. 1006
  5. 4096

Answer(s): B,C

Explanation:

VLAN 1 is a system default VLAN, you can use this VLAN but you cannot delete it. By default VLAN 1 is use for every port on the switch.
Standard VLAN range from 1002-1005 it's Cisco default for FDDI and Token Ring. You cannot delete VLANs 1002-1005. Mostly we don't use VLAN in this range.
