Cisco 200-301 Exam (page: 50)
Cisco Certified Network Associate (CCNA)
Updated on: 12-Feb-2026

Viewing Page 50 of 281
200-301 PDF 1395 Questions

When using Rapid PVST+, which command guarantees the switch is always the root bridge for VLAN 200?

  1. spanning-tree vlan 200 priority 614440
  2. spanning-tree vlan 200 priority 0
  3. spanning-tree vlan 200 root primary
  4. spanning-tree vlan 200 priority 38813258

Answer(s): B



Refer to the exhibit. Which command must be executed for Gi1/1 on SW1 to passively become a trunk port if Gi1/1 on SW2 is configured in desirable or trunk mode?

  1. switchport mode dynamic auto
  2. switchport mode dot1-tunnel
  3. switchport mode dynamic desirable
  4. switchport mode trunk

Answer(s): A

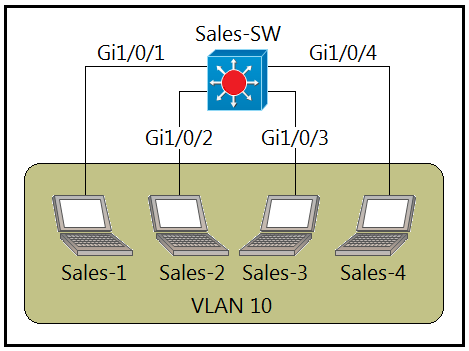

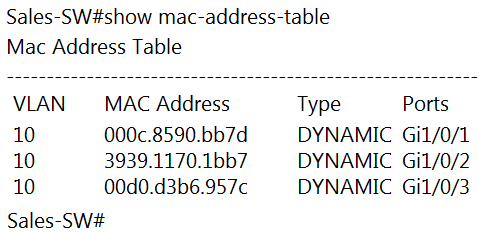

Refer to the exhibit. The entire contents or the MAC address table are shown. Sales-4 sends a data frame to Sales-1.


What does the switch do as it receives the frame from Sales-4?

  1. Map the Layer 2 MAC address to the Layer 3 IP address and forward the frame.
  2. Insert the source MAC address and port into the forwarding table and forward the frame to Sales-1.
  3. Perform a lookup in the MAC address table and discard the frame due to a missing entry.
  4. Flood the frame out of all ports except on the port where Sales-1 is connected.

Answer(s): B



Refer to the exhibit. An engineer must configure GigabitEthernet1/1 to accommodate voice and data traffic. Which configuration accomplishes this task?

  1. interface gigabitethernet1/1 switchport mode access switchport access vlan 300 switchport voice vlan 400
  2. interface gigabitethernet1/1 switchport mode trunk switchport trunk vlan 300 switchport trunk vlan 400
  3. interface gigabitethernet1/1 switchport mode access switchport voice vlan 300 switchport access vlan 400
  4. interface gigabitethernet1/1 switchport mode trunk switchport trunk vlan 300 switchport voice vlan 400

Answer(s): A



An engineer needs to add an old switch back into a network. To prevent the switch from corrupting the VLAN database, with action must be taken?

  1. Add the switch in the VTP domain with a lower revision number.
  2. Add the switch in the VTP domain with a higher revision number.
  3. Add the switch with DTP set to dynamic desirable.
  4. Add the switch with DTP set to desirable.

Answer(s): A
