Cisco 200-301 Exam (page: 21)
Cisco Certified Network Associate (CCNA)
Updated on: 09-Feb-2026

Viewing Page 21 of 281
200-301 PDF 1395 Questions

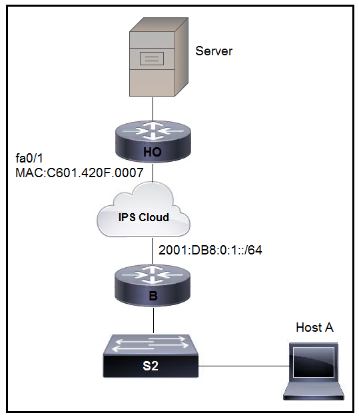

Refer to the exhibit. An engineer is configuring the HO router. Which IPv6 address configuration must be applied to the router fa0/1 interface for the router to assign a unique 64-bit IPv6 address to itself?

  1. ipv6 address 2001:DB8:0:1:FFFF:C601:420F:7/64
  2. ipv6 address 2001:DB8:0:1:FE80:C601:420F:7/64
  3. ipv6 address 2001:DB8:0:1:C601:42FF:FE0F:7/64
  4. ipv6 address 2001:DB8:0:1:C601:42FF:800F:7/64

Answer(s): C



What is a similarity between 1000BASE-LX and 1000BASE-T standards?

  1. Both use the same data-link header and trailer formats.
  2. Both cable types support RJ-45 connectors.
  3. Both support up to 550 meters between nodes.
  4. Both cable types support LR connectors.

Answer(s): A

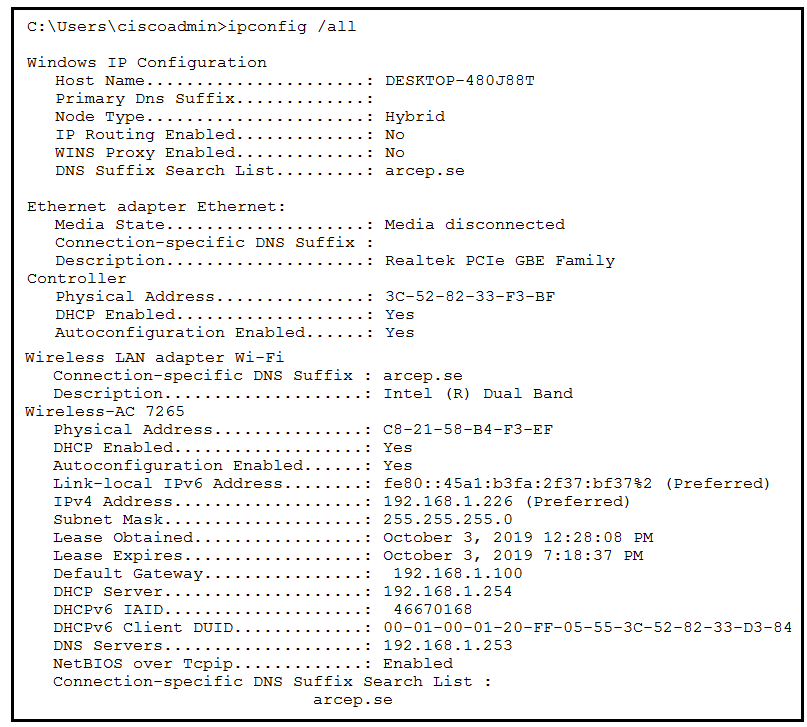

Refer to the exhibit. The given Windows PC is requesting the IP address of the host at www.cisco.com. To which IP address is the request sent?

  1. 192.168.1.253
  2. 192.168.1.100
  3. 192.168.1.226
  4. 192.168.1.254

Answer(s): A



Which function forwards frames to ports that have a matching destination MAC address?

  1. frame flooding
  2. frame filtering
  3. frame pushing
  4. frame switching

Answer(s): D



Which type of IPv6 address is similar to a unicast address but is assigned to multiple devices on the same network at the same time?

  1. global unicast address
  2. link-local address
  3. anycast address
  4. multicast address

Answer(s): C
