QUESTION: 91

Which two network actions occur within the data plane? (Choose two.)

Run routing protocols.
Make a configuration change from an incoming NETCONF RPC.
Add or remove an 802.1Q trunking header.
Match the destination MAC address to the MAC address table.
Reply to an incoming ICMP echo request.

Answer(s): C,D

Reveal Solution Next Question

QUESTION: 92

What are network endpoints?

support inter-VLAN connectivity
a threat to the network if they are compromised
act as routers to connect a user to the service provider network
enforce policies for campus-wide traffic going to the Internet

Answer(s): B

Reveal Solution Next Question

QUESTION: 93

Refer to the exhibit. The link between PC1 and the switch is up, but it is performing poorly. Which interface condition is causing the performance problem?

There is an issue with the fiber on the switch interface.
There is a duplex mismatch on the interface.
There is an interface type mismatch.
There is a speed mismatch on the interface.

Answer(s): B

Reveal Solution Next Question

QUESTION: 94

Why was the RFC 1918 address space defined?

conserve public IPv4 addressing
support the NAT protocol
preserve public IPv6 address space
reduce instances of overlapping IP addresses

Answer(s): A

Reveal Solution Next Question

QUESTION: 95

DRAG DROP (Drag and Drop is not supported)

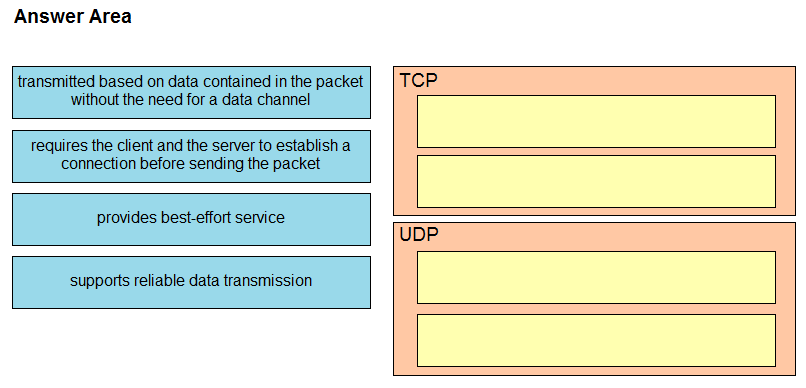

Drag and drop the TCP or UDP details from the left onto their corresponding protocols on the right.
Select and Place:

See Explanation section for answer.

Answer(s): A

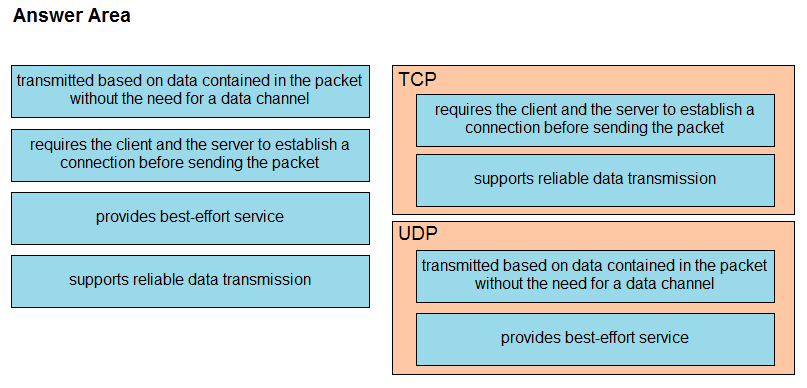

Explanation:

Reveal Solution Next Question

10
…
17
18
19
20
21
…
30
40
