Cisco 200-301 Exam (page: 18)
Cisco Certified Network Associate (CCNA)
Updated on: 09-Feb-2026

Viewing Page 18 of 281
200-301 PDF 1395 Questions

What is the maximum bandwidth of a T1 point-to-point connection?

  1. 1.544 Mbps
  2. 2.048 Mbps
  3. 34.368 Mbps
  4. 43.7 Mbps

Answer(s): A



What are two similarities between UTP Cat 5e and Cat 6a cabling? (Choose two.)

  1. Both support speeds up to 10 Gigabit.
  2. Both support speeds of at least 1 Gigabit.
  3. Both support runs of up to 55 meters.
  4. Both support runs of up to 100 meters.
  5. Both operate at a frequency of 500 MHz.

Answer(s): B,D



What is a characteristic of cloud-based network topology?

  1. onsite network services are provided with physical Layer 2 and Layer 3 components
  2. wireless connections provide the sole access method to services
  3. physical workstations are configured to share resources
  4. services are provided by a public, private, or hybrid deployment

Answer(s): D



Which network action occurs within the data plane?

  1. reply to an incoming ICMP echo request
  2. make a configuration change from an incoming NETCONF RPC
  3. run routing protocols (OSPF, EIGRP, RIP, BGP)
  4. compare the destination IP address to the IP routing table

Answer(s): D

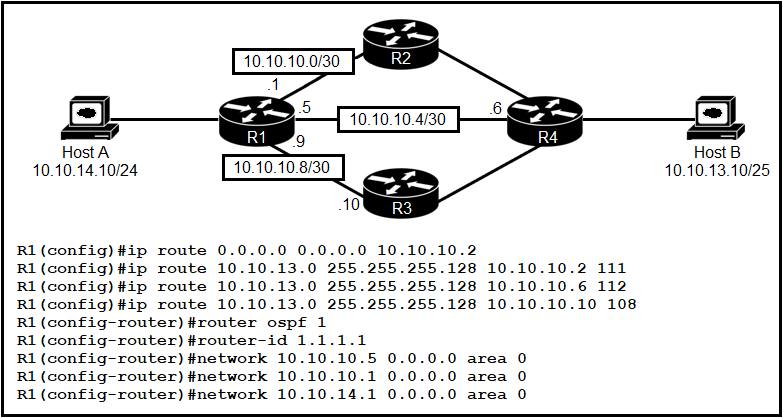

Refer to the exhibit. R1 has just received a packet from host A that is destined to host B. Which route in the routing table is used by R1 to reach host B?

  1. 10.10.13.0/25 [1/0] via 10.10.10.2
  2. 10.10.13.0/25 [108/0] via 10.10.10.10
  3. 10.10.13.0/25 [110/2] via 10.10.10.6
  4. 10.10.13.0/25 [110/2] via 10.10.10.2

Answer(s): B
