Refer to the CLI output below:What statement about the output above is correct?
Answer(s): B
The CLI output indicates a tunnel creation process, where "SW hw tun created" refers to the switch hardware tunnel being created. The line mentioning "BYP-10.10.10.101 -> SW hw tun created to 10.10.10.151 tunnel 15." implies that a tunnel was established to the secondary tunnel endpoint with the IP address 10.10.10.151. This is a common configuration for User-Based Tunneling (UBT) setups where traffic is tunneled to a specific endpoint.

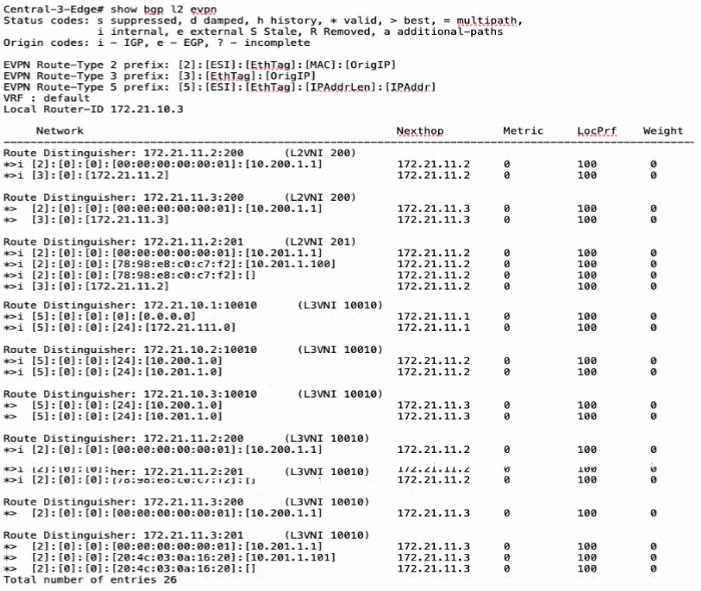

Which statement is true given the following CLI output from a CX 6300?
Answer(s): A
The CLI output displays EVPN routes and their corresponding next hops. The "Route Distinguisher" entries followed by IP addresses in the 172.21.11.x range indicate these are loopback addresses used by the underlay network. The underlay network provides the basic routing and forwarding plane for the overlay network that EVPN is part of. These loopback addresses are crucial for the proper functioning of the EVPN control plane.

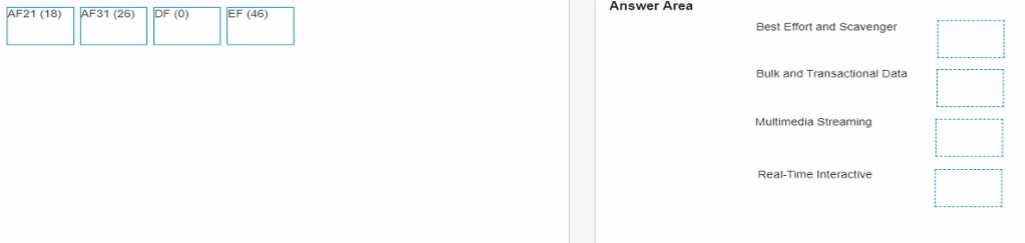

DRAG DROP (Drag and Drop is not supported)Your customer is requesting a 4-ciass LAN queuing model tor QoS. Following best practices, match the PHB/DSCP values to the application types.
Best Effort and Scavenger = DF (0)Bulk and Transactional Data = AF21 (18)Multimedia Streaming = AF31 (26)Real-Time Interactive = EF (46)

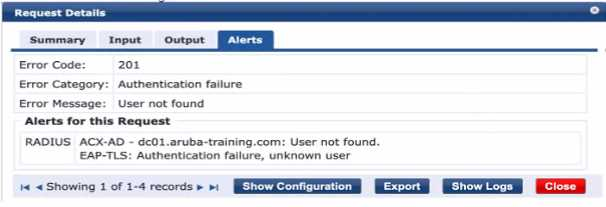

You configured" a bridged mode SSID with WPA3-Enterprise and EAP-TLS security. When you connect an Active Directory joined client that has valid client certificates. ClearPass shows the following error.What is needed to resolve this issue?
Answer(s): C
The error message "User not found" indicates that the authentication source, in this case, Active Directory (AD), is not able to locate the user account based on the current search parameters. This often occurs when the User Principal Name (UPN) that the client is using to authenticate is not included in the search parameters of the AD authentication source within ClearPass. By modifying the AD authentication source to include the UPN in the search, ClearPass will be able to correctly locate the user account and proceed with the authentication using the valid client certificates.
Refer to the exhibit.Which statement is true?
The exhibit shows a series of 802.1X authentication steps with multiple "Deauthentication" frames, which indicate that the client is not successfully completing the authentication process. Since the frames show repeated attempts at authentication followed by deauthentication, this suggests that the client is failing the 802.1X authentication process, which is required for network access in a WPA2/WPA3-Enterprise security environment.
