Cisco 200-301 Exam (page: 29)
Cisco Certified Network Associate (CCNA)
Updated on: 09-Feb-2026

Viewing Page 29 of 281
200-301 PDF 1395 Questions

DRAG DROP (Drag and Drop is not supported)

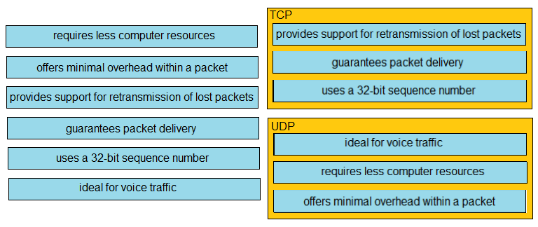

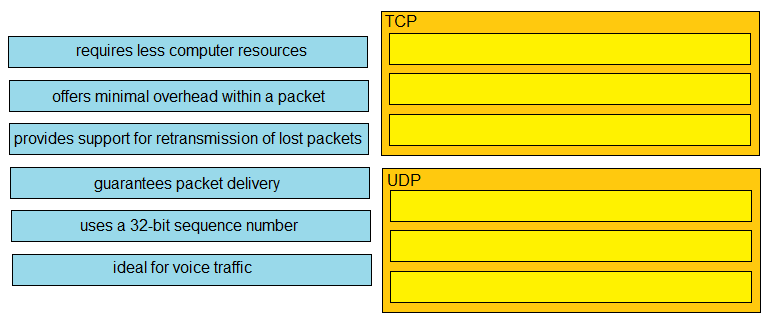

Drag and drop the characteristics of transport layer protocols from the left onto the corresponding protocols on the right.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



A network engineer must configure an interface with IP address 10.10.10.145 and a subnet mask equivalent to 11111111.11111111.11111111.11111000. Which subnet mask must the engineer use?

  1. /29
  2. /30
  3. /27
  4. /28

Answer(s): A

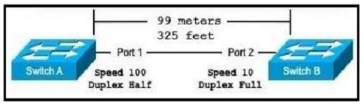

Refer to the exhibit. The switches are connected via a Cat5 Ethernet cable that is tested successfully. The interfaces are configured as access ports and are both in a down status. What is the cause of the issue?

  1. The speed settings on the switches are mismatched
  2. The distance between the two switches is not supported by Cat5
  3. The switches are configured with incompatible duplex settings
  4. The portfast command is missing from the configuration

Answer(s): A



Which two IP addressing schemes provide internet access to users on the network while preserving the public IPv4 address space? (Choose two.)

  1. IPv6 addressing
  2. PAT with private internal addressing
  3. single public Class A network
  4. private networks only
  5. custom addresses from ARIN

Answer(s): A,B

Explanation:

PAT with private internal addressing is the usual method of allowing Internet access while preserving IPv4 addresses. Another alternative is using IPV6, which will allow internet access without using any IPv4 addresses. The other answer choices will consume a great deal of public IPV4 addresses, or will not allow for internet access.



The address block 192.168.32.0/24 must be subnetted into smaller networks. The engineer must meet these requirements:
-Create 8 new subnets.
-Each subnet must accommodate 30 hosts.
-Interface VLAN 10 must use the last usable IP in the first new subnet.
-A Layer 3 interface is used.

Which configuration must be applied to the interface?

  1. no switchport mode trunk ip address 192.168.32.97 255.255.255.224
  2. switchport ip address 192.168.32.65 255.255.255.240
  3. no switchport ip address 192.168.32.30 255.255.255.224
  4. no switchport mode access ip address 192.168.32.62 255.255.255.240

Answer(s): C
