QUESTION: 21

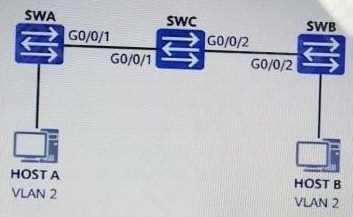

As shown in the figure, the network administrator creates VLAN2 on SWA and SWB. The ports connecting the hosts on the two switches are configured as Access ports. They are assigned to VLAN2. G0/0/1 of SWA and G0/0/2 of SWB are configured as Trunki ports. All VLANs are allowed to pass. What is needed to achieve normal communication between two hosts? () (Single-choice question)

Configure G0/0/1 on SWC as a trunk port and allow VLAN2 to pass. Set G0/0/2 as an access port. PVID is 2.
Create VLAN2 on SWC, configure G0/0/1 and G0/0/2 as trunk ports, and allow VLAN2 to pass
Just create BLAN2 on SWC
Configure G0/0/1 on SWC as a teunk port and allow VLAN2 to pass through

Answer(s): B

Reveal Solution Next Question

QUESTION: 22

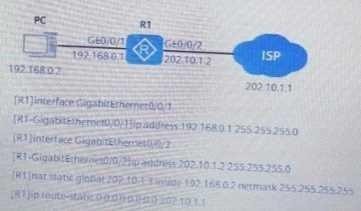

As shown in the figure, a static NAT command is deployed on router R1. When the PC accesses the Internet, the destination address in the data packet will not change. ()(True or False)

True
False

Answer(s): A

Reveal Solution Next Question

QUESTION: 23

The ACL configuration information of a certain router is shown in the figure. Which of the following statements is correct? () (Single-choice question)

The packet whose source IP address is 192.168.1.254 is matched by the permit rule
Packets with source IP addresses of 192.168.1.1 and 192.168.1.254 are matched by the permit rule
The packet with the source IP address of 192.168.1.1 is matched by the pemit rule
The packet with the source IP address 192.168.1.1 is matched by the deny rule

Answer(s): C

Reveal Solution Next Question

QUESTION: 24

The administrator made the configuration on the router as shown in the figure. At the same time, the administrator wants to assign a shorter lease period to the DHCP address. Which of the following commands should be used? () (Single-choice question)

ip pool pooll
netyork10.10.10.0ask255.255.255.0
gateway-list 10.10.10.1
