QUESTION: 16

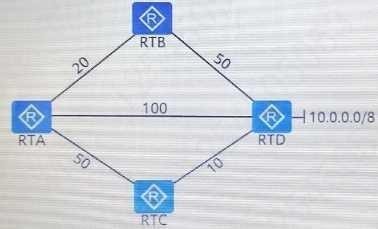

The network shown in the figure below. All routers run OSPF. The link cost value is shown in the figure. What is the cost value of the route entry to the network 10.0.0.0/8 in the RTA routing table? () (Single-choice question)

100
70
20
60

Answer(s): D

Reveal Solution Next Question

QUESTION: 17

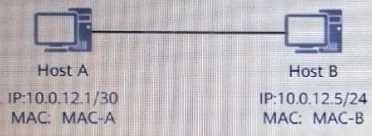

As shown in the figure below, which of the following statements is correct? () (Single-choice question)

Host A can ping host B
Only if the masks of host A and host B are set to be the same, host A and host B can communicate
The IP address mask b of host A and host B are different. Therefore, host A and host B cannot communicate
The broadcast address of host A and host B are the same

Answer(s): A

Reveal Solution Next Question

QUESTION: 18

As shown in the figure below. Which port of the following switches will be blocked? () (Single-choice question)

SWC's G0/0/2
SWA's G0/0/3
SWC's G0/0/1
G0/0/3 of SWB

Answer(s): C

Reveal Solution Next Question

QUESTION: 19

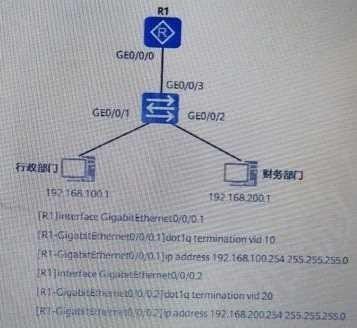

Refer to the configuration of the single-arm routing in the figure below, you can judge that even if the ARP proxy is not enabled on the sub-interface of R1, the administrative department and the financial department can also visit each other. () (True or False)
