QUESTION: 46

Use the ACL shown in the figure on the router RTA to match routing entries. Then which of the following entries will be matched?

(RTA) acl 2002
(RTA-acl-basic-2002) rule deny source 172.16.1.1 0.0.0.0
(RTA-acl-basic-2002) rule deny source 172.16.0.0 0.255.0.0

172.18.0.0/16
172.16.1.0/24
192.17.0.0/24
172.16.1.1/24

Answer(s): A

Reveal Solution Next Question

QUESTION: 47

The topology shown in the figure and the configuration on the interconnection ports of the switch. Can it be judged that the data frame tagged as VLAN10 can be forwarded normally between the two switches? () (True or False)

(LSW1) interface GigabitEthernet 0/0/1
(LSW1-GigabitEthernet0/0/1) port link-type trunk
(LSW1-GigabitEthernet0/0/1) port trunk pvid vlan 20
(LSW1-GigabitEthernet0/0/1) port trunk allow-passvlan 10
#
(LSW2) interface GigabitEthernet 0/0/1
(LSW2-GigabitEthernet0/0/1) port link-type trunk
(LSW2-GigabitEthernet0/0/1 port trunk pvid vlan 10
(LSW2-GigabitEthernet0/0/1) port trunk allow-passvlan 10

True
False

Answer(s): A

Reveal Solution Next Question

QUESTION: 48

The MAC address table of existing switches is shown in the figure. Which of the following statements are correct? () (Single-choice question)

＜Huawei＞display mac address
MAC address table of slot 0:
MAC Address VLAN/PEVLAN CEVLAN Port Type LSP/LSR-ID
VSI/SI MAC-Tunnel
5489 9811 0b49 1 Eth0/0/3 static 0/

Total matching items on slot 0 displayed =1
MAC address table of slot 0:
MAC Address VLAN/ PEVLAN CEVLAN Port Type LSP/LSR-ID
VSI/SI MAC-Tunnel
5489-989d-1d30 1 Eth0/0/1 dynamic 0/-
5489-9885-18a8 1 Eth0/0/2 dynamic 0/-
Total matching items on slot 0 displayed ＝2

The MAC address 5489-9811-0b49 is manually configured by the administrator
After the switch restarts, all MAC addresses need to be relearned
The MAC address 5489-989d-1d30 is manually configured by the administrator
The MAC address 5489-9885-18a8 is manually configured by the administrator

Answer(s): A

Reveal Solution Next Question

QUESTION: 49

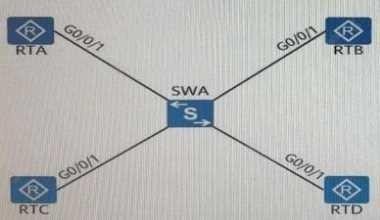

In the broadcast network as shown in the figure, 0SPF runs on four routers. And in the same area. The same network segment. SPF will automatically elect one DR and multiple BDRs to achieve a better backup effect. ()(True or False)
