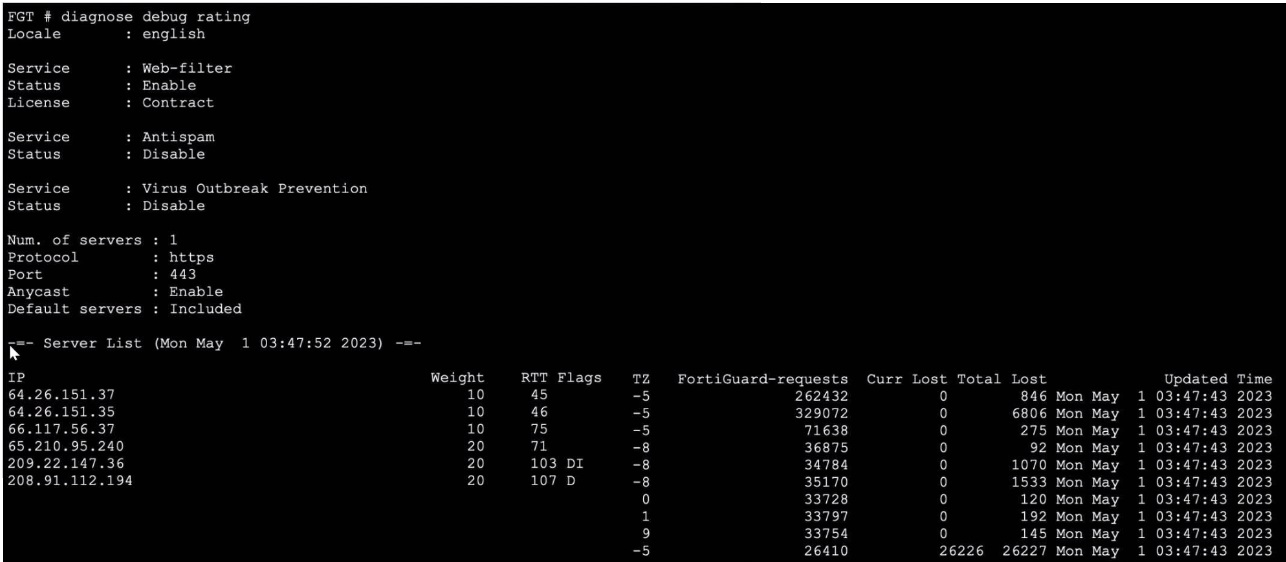

Exhibit.Refer to the exhibit, which shows the output of a diagnose command.What can you conclude about the debug output in this scenario?
Answer(s): C
The exhibit displays the output from the diagnose debug rating command on a FortiGate device. This command is used to display information about FortiGuard Web Filtering or other security-related queries performed by FortiGate to FortiGuard servers. Official Fortinet documentation outlines the meaning of each field in the server list. The FortiGate maintains a list of available FortiGuard servers, selecting the optimal server based on factors such as weight, round-trip time (RTT), and regional settings.The very first entry in the server list after 'Server List' is the server FortiGate initially uses, prioritized by factors such as proximity and RTT. Here, 64.26.151.37 is listed first, and the FortiGuard-requests value confirms that this server handled the highest number of requests. The IPs, weights, and lost/failed counters are monitored for server performance and selection over time. FortiGate's default operational logic is to try the first entry for contract validation and use the next in the list if the first is unavailable or has high latency or packet loss.There is no direct correlation between the Weight and the number of FortiGuard-requests. The servers with higher or lower weights may still handle different request volumes based on availability and performance.The TZ (time zone) value's sign (positive or negative) does not affect server preference; it is informational, showing the server's location relative to UTC, not a rating metric.DNS query results for FortiGuard servers are not shown here, and the provided servers are not returned in DNS query order.This command and interpretation are detailed in the FortiOS Administration Guide's section describing FortiGuard server selection and contract validation processes.FortiOS Administration Guide: FortiGuard Service Connectivity and DebuggingOfficial Technical Notes on diagnose debug rating output structure

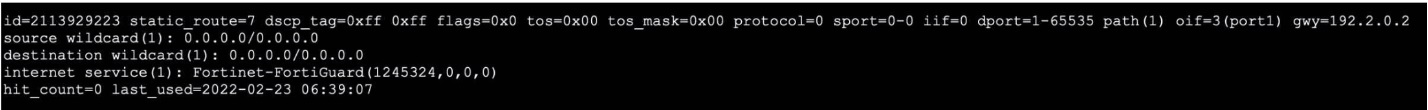

Refer to the exhibit, which shows the output of a policy route table entry.Which type of policy route does the output show?
Answer(s): D
Without access to the exhibit showing the policy route table entry, I cannot determine which type of policy route is displayed. Policy routes in FortiGate can be based on various criteria such as source/destination IP, protocol, or application. To provide an accurate explanation, the specific output characteristics would need to be visible (e.g., whether it shows policy-based routing based on source address, destination address, service type, or other parameters).

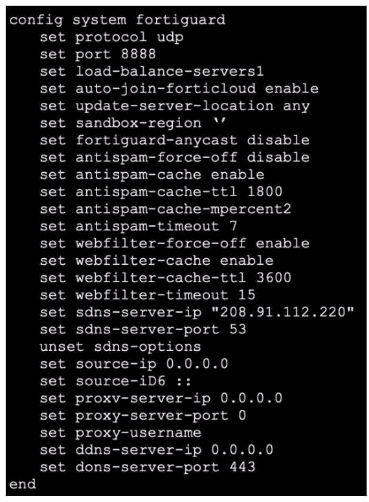

Exhibit.Refer to the exhibit, which shows a FortiGate configuration.An administrator is troubleshooting a web filter issue on FortiGate. The administrator has configured a web filter profile and applied it to a policy; however the web filter is not inspecting any traffic that is passing through the policy.What must the administrator do to fix the issue?
Answer(s): A
The exhibit showsa FortiGate configurationunderconfig system fortiguardrelated to web filtering and FortiGuard options. There is a line:set webfilter-force-off enableAccording to official Fortinet documentation, the 'webfilter-force-off' option, when enabled, causes the FortiGate tobypassweb filteringfor all traffic---even if a webfilter profileis applied toa policy. Thisoverride is typicallyused for troubleshootingor performancereasons and isdocumented asan explicit bypassfeature.Ifan administratorwants to enforceweb filteringinspection, thissettingmustbe disabled. The correctway to restoreweb filteringfunctionalityis to run:set webfilter-force-off disableOnce done, traffic passing throughpolicies withweb filter profileswill be inspectedand filteredas per configuration. Other settingssuch as timeoutor cache TTLdo not bypassweb filtering; they only affectoperational nuances.FortiOS AdministrationGuide: Web Filtering, FortiGuard Options, ''webfilter-force-off'' CLI

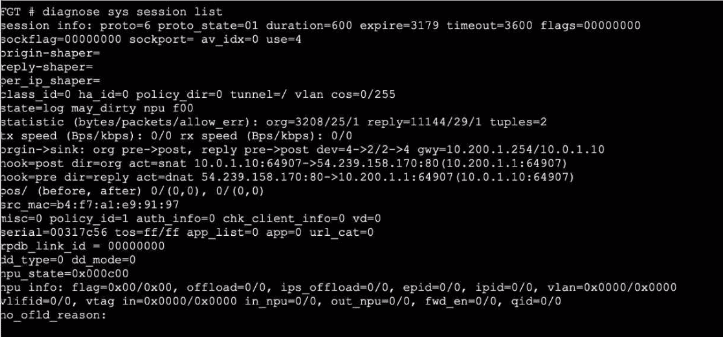

MULTIPLE CHOICEExhibit 1.Exhibit 2.Refer to the exhibits, which show the configuration on FortiGate and partial internet session information from a user on the internal network.An administrator would like to lest session failover between the two service provider connections.Which two changes must the administrator make to force this existing session to immediately start using the other interface? (Choose two.)
Answer(s): A,D
FortiOS Admin Guide: Static Routing, SNAT Route Change Feature

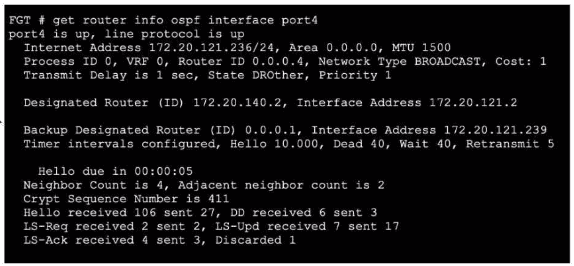

MULTIPLE CHOICERefer to the exhibit, which shows the output of a debug command.Which two statements about the output are true? (Choose two.)
Answer(s): A,B
FortiOS Admin Guide: OSPF, Debug Outputs

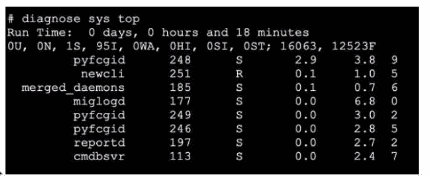

MULTIPLE CHOICERefer to the exhibit.Which three pieces of information does the diagnose sys top command provide? (Choose three.)
Answer(s): A,C,D
https://community.fortinet.com/t5/FortiGate/Technical-Tip-Using-the-diagnose-sys-top-CLI-co-mand/ta-p/190238

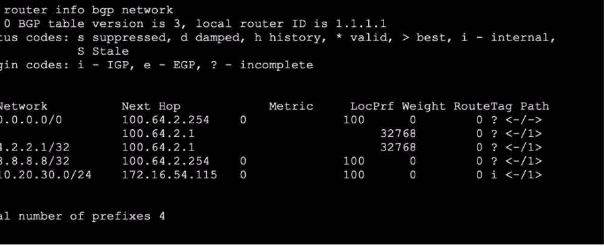

MULTIPLE CHOICERefer to the exhibit, which shows the output o! the BGP database.Which two statements are correct? (Choose two.)
For Option A:In Fortinet BGP (and standard BGP), when a prefix is displayed with an 'i' (lowercase i) in the Path column, it represents aninternalprefix that originated from the local router, typically configured via the BGP 'network' command. In the exhibit, the prefix 10.20.30.0/24 is listed with a Path value ofi, indicating it was injected into BGP by the local router using the network statement, not via redistribution from another routing protocol. The same logic applies toias documented: 'Origin code 'i' means the route was injected via the network command.'For Option D:Theget router info bgp networkoutput is a summary table displaying both local and received BGP routes. It lists all known routes to the BGP process, whether received from peers or originated locally. The exhibit shows all BGP prefixes known to the local router, matching the official admin guide's description of this command's output.Explanation for B and C:The phrase ''legacy route advertisement'' is not formalized in BGP documentation or Fortinet's admin guide; the output uses standard BGP mechanics.If a route was redistributed into BGP from another routing protocol, the Path field would display a '?' (question mark) for incomplete (redistributed) origin. Here the /24 route has 'i' so it is NOT a redistribution.FortiOS Administration Guide: BGP Configuration and Route Table InterpretationOfficial BGP Command Reference:Show BGP Network, Path Codes, Route Origination Indicators
MULTIPLE CHOICEIn which two slates is a given session categorized as ephemeral? (Choose two.)
Answer(s): A,C
The study guide states:''FortiGate categorizes an entry in the session table as an ephemeral session when it is a TCP session that is not fully established (three-way handshake not completed), or when it is a UDP session with only one packet received.''This directly proves:A is correct because a UDP session with only one packet received is ephemeral.C is correct because a TCP session waiting for the SYN/ACK is not fully established, so it is ephemeral. The study guide's TCP state table shows that the handshake is only completed when the session reaches ESTABLISHEDWhy the other options are wrong:B is wrong because once UDP traffic has been seen in both directions, it is no longer the ''single packet received'' condition described for ephemeral sessions. The study guide says for UDP: 00 = one way, 01 = both waysD is wrong because a TCP session waiting for FIN/ACK is already in the closing stage after establishment, not in the ''not fully established'' stage. The study guide explains that after both sides close the session, FortiGate can keep it briefly in the table in state value 5 for out-of-order packets after FIN/ACK
