QUESTION: 26

Refer to the exhibit.

The VXLAN fabric is deployed with this configuration:

•The VLAN 50 interface has no IP address on VTEP1 and VTEP4
•The VLAN 100 interface has no IP address on VTEP2 and VTEP3
•The nve1 interface is configured on all VTEPs

Host A experiences timeouts when attempting to ping host B. Which set of actions allows host A to reach host B?

On VTEP1, associate VNI 50000 to Test_Telco VRF
On VTEP4, associate VNI 50000 to Test_Telco VRF
On VTEP2, associate VNI 30000 to Test_Telco VRF
On VTEP4, associate VNI 20000 to Test_Telco VRF
On VTEP1, associate VNI 30000 to Test_Telco VRF
On VTEP4, associate VNI 20000 to Test Telco VRF
On VTEP2, associate VNI 55000 to Test_Telco VRF
On VTEP4, associate VNI 50000 to Test_Telco VRF

Answer(s): A

Reveal Solution Next Question

QUESTION: 27

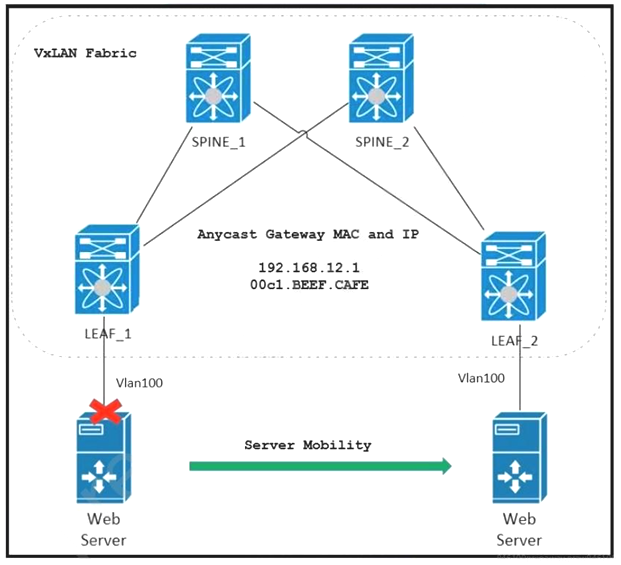

Refer to the exhibit.

To avoid service disruption, an engineer must move the server from LEAF_1 to LEAF_2. After running the test, the engineer noticed that LEAF_2 failed to forward network traffic into the VXLAN fabric. The BGP, interface NVE, and VNI were confirmed to be configured as expected. Which two actions must be taken on LEAF_2 to resolve the issue? (Choose two.)

Add fabric forwarding mode anycast-gateway on interface Vlan100.
Configure correspondent IP addressing on every interface.
Change the fabric forwarding anycast-gateway-mac MAC address.
Remove ip forward from interface Vlan30 and add it on interface Vlan100.
Enable HMM tracking to advertise host routes into the VXLAN fabric.

Answer(s): C,E

Reveal Solution Next Question

QUESTION: 28

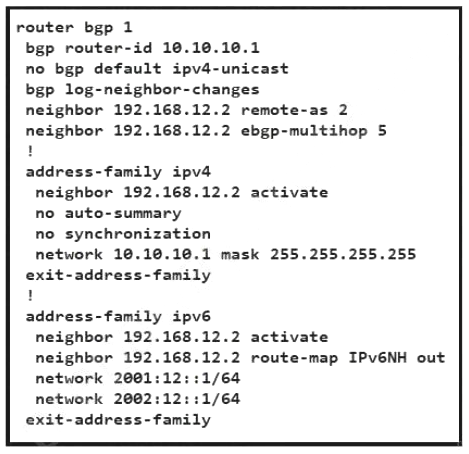

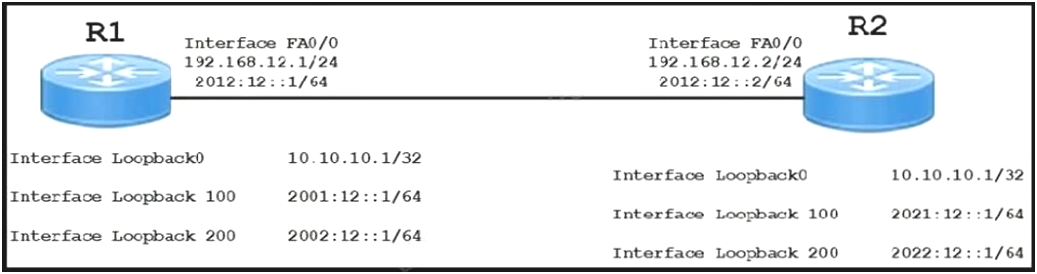

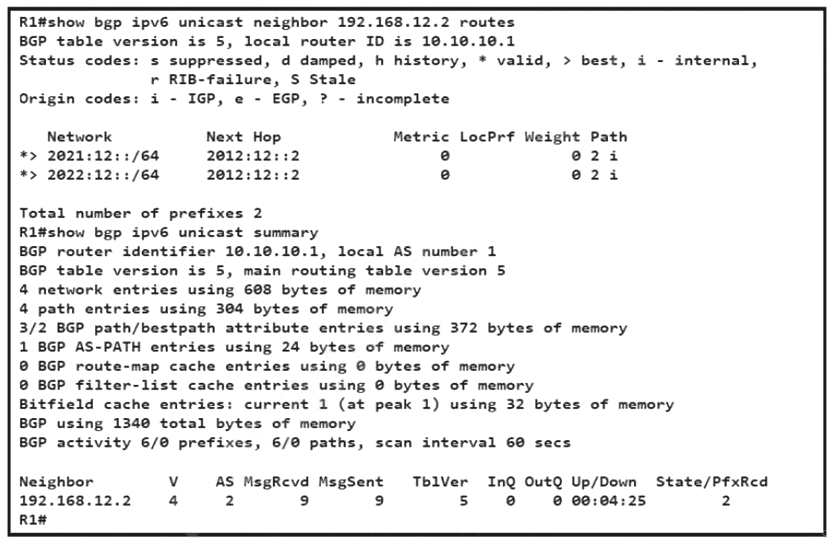

Refer to the exhibit.

A network engineer must use BGP to route IPv4 and IPv6 routes between R1 and R2. The IPv4 addresses are exchanged as expected between the routers through BGP. The routers have reached an Established BGP state. However, the IPv6 routes from R2 fail to show in the routing table of R1. Which action resolves the issue?

Enable IPv6 routing on R1.
Create a route map that sets the IPv6 next hop.
Configure an IPv6 BGP neighbor on R1.
Advertise L2VPN EVPN under IPv4 unicast address family.

Answer(s): B

Reveal Solution Next Question

QUESTION: 29

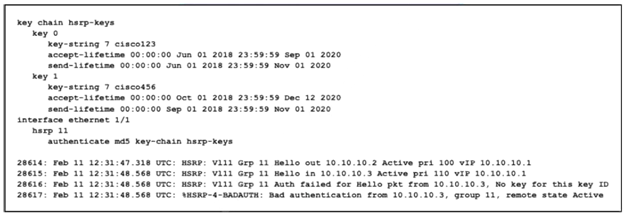

Refer to the exhibit.

A network engineer notices a sudden interruption to the HSRP adjacency between the switches. The packet loss is reported on the servers for which the default gateway is set as the virtual IP of the HSRP. All servers on the VLAN can exchange ping messages. Which configuration set must be applied on the HSRP peers to resolve the adjacency issue?
