Cisco 300-615 Exam (page: 10)
Cisco Troubleshooting Data Center Infrastructure (DCIT)
Updated on: 15-Feb-2026

Viewing Page 10 of 51
300-615 PDF 268 Questions

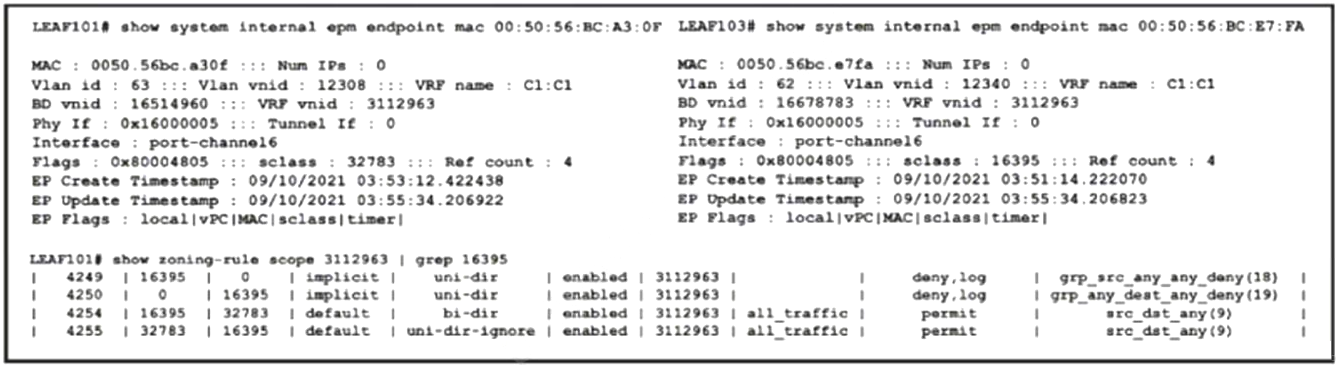

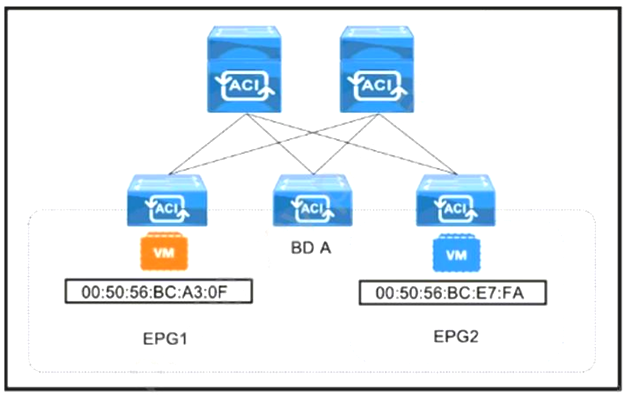

Refer to the exhibit.




The connectivity fails between endpoints from different EPGs that use the same bridge domain. All endpoints are on the same subnet configured under the shared bridge domain. Which action resolves the issue?

  1. Enable unicast routing on the bridge domain.
  2. Configure a contract between the EPGs.
  3. Set the preferred group option on the VRF.
  4. Attach the same bridge domain to the EPGs.

Answer(s): B

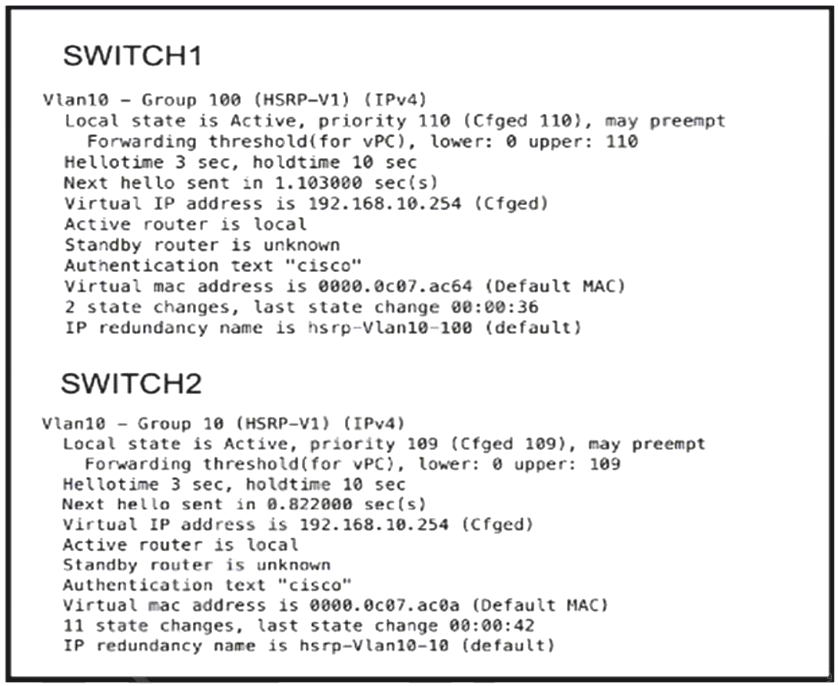

Refer to the exhibit.





The servers experience intermittent connectivity issues in VLAN 10. Which action resolves the issue?

  1. Configure the same HSRP group on the peer switches.
  2. Enable HSRP hellos between the peer switches.
  3. Disable the preempt feature on one of the peer switches.
  4. Change the virtual IP address on one of the peer switches.

Answer(s): A

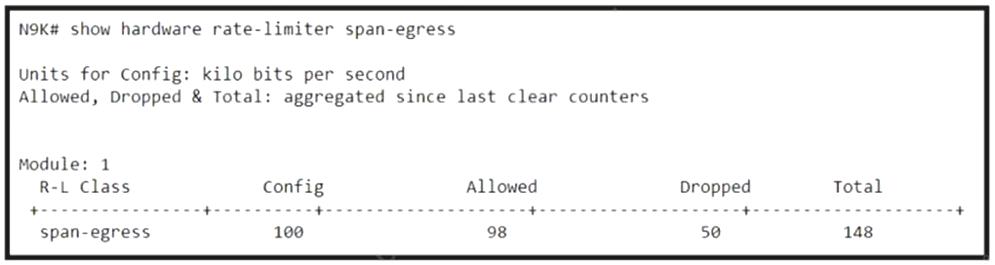

Refer to the exhibit.



A client is reporting packet drops destined for the call recording server connected to Cisco Nexus 9000 Series Switch. Which action resolves the issue?

  1. Increase the MTU size on the Ethernet interface connected to the recording server.
  2. Increase the TCAM hardware rate limit.
  3. Increase the TCAM resources on the switch.
  4. Increase the rate limit on the Ethernet interface connected to the recording server.

Answer(s): D

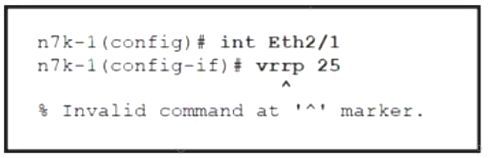

Refer to the exhibit.



An engineer fails to implement VRRP on a Cisco Nexus 7000 Series Switch. Which action resolves the issue?

  1. Activate the VRRP license.
  2. Configure the VRRP instance globally.
  3. Enable the VRRP feature.
  4. Set the VRRP group number.

Answer(s): B

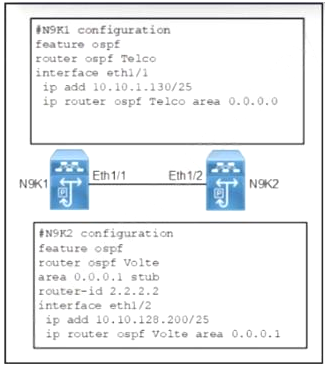

Refer to the exhibit.



Two Cisco Nexus 9000 Series Switches fail to establish OSPF neighborship. Which action set resolves the issue?


  1. Configure ospf area 1 as a standard area on N9K2.
    Configure eth1/2 with IP address 10.10.128.130/25.
    Assign eth1/1 to ospf area 0.0.0.1.

  2. Configure ospf area 1 as a standard area on N9K2.
    Configure elh1/1 with IP address 10.10 128.130/25.
    Assign eth1/1 to ospf area 0.0.0.1.

  3. Configure ospf area 0 as a stub area on N9K1.
    Configure eth1/2 with IP address 10.10.1.200/25.
    Assign eth1/2 to ospf area 0.0.0.0.

  4. Configure ospf area 0 as a stub area on N9K1.
    Configure eth1/1 with IP address 10.10.128.130/25.
    Assign eth1/2 to ospf area 0.0.0.0

Answer(s): A
