Cisco 200-301 Exam (page: 56)
Cisco Certified Network Associate (CCNA)
Updated on: 12-Feb-2026

Viewing Page 56 of 281
200-301 PDF 1395 Questions

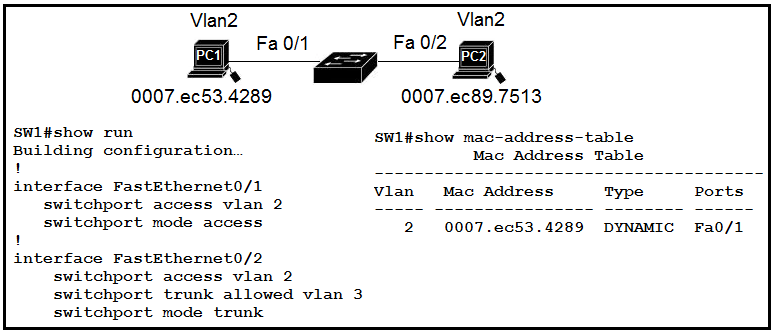

Refer to the exhibit. An engineer has started to configure replacement switch SW1. To verify part of the configuration, the engineer issued the commands as shown and noticed that the entry for PC2 is missing. Which change must be applied to SW1 so that PC1 and PC2 communicate normally?

  1. SW1(config)#interface fa0/2 SW1(config-if)#no switchport access vlan 2 SW1(config-if)#no switchport trunk allowed vlan 3 SW1(config-if)#switchport trunk allowed vlan 2
  2. SW1(config)#interface fa0/2 SW1(config-if)#no switchport access vlan 2 SW1(config-if)#switchport trunk native vlan 2 SW1(config-if)#switchport trunk allowed vlan 3
  3. SW1(config)#interface fa0/2 SW1(config-if)#no switchport mode trunk SW1(config-if)#no switchport trunk allowed vlan 3 SW1(config-if)#switchport mode access
  4. SW1(config)#interface fa0/1 SW1(config-if)#no switchport access vlan 2 SW1(config-if)#switchport access vlan 3 SW1(config-if)#switchport trunk allowed vlan 2

Answer(s): C

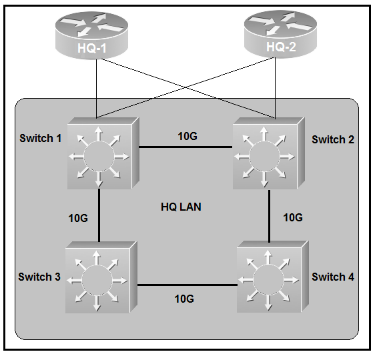

Refer to the exhibit. Which switch becomes the root of the spanning tree?


Switch 1
BID: 32778 0018.184e.3c00

Switch 2
BID: 24586 001a.e3ff.a680

Switch 3
BID: 28682 0022.55cf.cc00

Switch 4
BID: 64000 4e15.8403.08f

  1. Switch 1
  2. Switch 2
  3. Switch 3
  4. Switch 4

Answer(s): B



DRAG DROP (Drag and Drop is not supported)

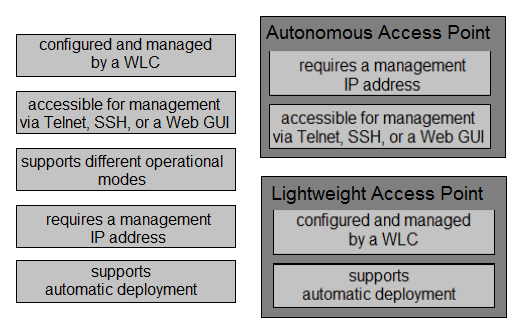

Drag and drop the facts about wireless architectures from the left onto the types of access point on the right. Not all options are used.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:

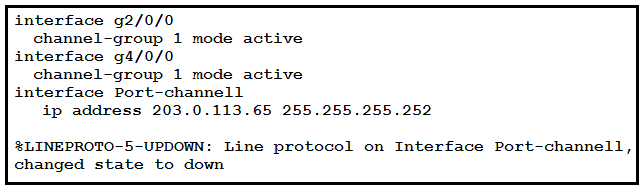

Refer to the exhibit. An engineer is configuring a Layer 3 port-channel interface with LACP. The configuration on the first device is complete, and it is verified that both interfaces have registered the neighbor device in the CDP table. Which task on the neighbor device enables the new port channel to come up without negotiating the channel?

  1. Configure the IP address of the neighboring device.
  2. Bring up the neighboring interfaces using the no shutdown command.
  3. Change the EtherChannel mode on the neighboring interfaces to auto.
  4. Modify the static EtherChannel configuration of the device to passive mode.

Answer(s): D



Refer to the exhibit. Which configuration establishes a Layer 2 LACP EtherChannel when applied to both switches?

  1. Interface range G1/1 “" 1/3 switchport mode trunk channel-group 1 mode active no shutdown
  2. Interface range G1/1 “" 1/3 switchport mode access channel-group 1 mode passive no shutdown
  3. Interface range G1/1 “" 1/3 switchport mode trunk channel-group 1 mode desirable no shutdown
  4. Interface range G1/1 “" 1/3 switchport mode access channel-group 1 mode on no shutdown

Answer(s): D
