Cisco 200-301 Exam (page: 55)
Cisco Certified Network Associate (CCNA)
Updated on: 12-Feb-2026

Viewing Page 55 of 281
200-301 PDF 1395 Questions

Aside from discarding, which two states does the switch port transition through while using RSTP (802.1w)? (Choose two.)

  1. blocking
  2. speaking
  3. listening
  4. learning
  5. forwarding

Answer(s): D,E


Reference:

https://www.cisco.com/c/en/us/support/docs/lan-switching/spanning-tree-protocol/24062-146.html



DRAG DROP (Drag and Drop is not supported)

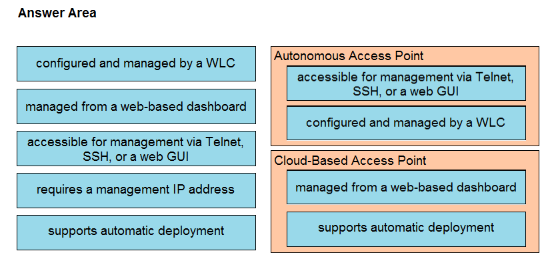

Drag and drop the facts about wireless architectures from the left onto the types of access point on the right. Not all options are used.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



Which interface mode must be configured to connect the lightweight APs in a centralized architecture?

  1. WLAN dynamic
  2. trunk
  3. access
  4. management

Answer(s): C

Explanation:

While the Cisco WLCs always connect to 802.1Q trunks, Cisco lightweight APs do not understand VLAN tagging and should only be connected to the access ports of the neighbor switch.
This is an example switch port configuration from the Catalyst 3750: interface GigabitEthernet1/0/22 description Access Port Connection to Cisco Lightweight AP switchport access vlan 5 switchport mode access no shutdown


Reference:

https://www.cisco.com/c/en/us/support/docs/wireless/4400-series-wireless-lan-controllers/69719-wlc-lwap-config.html

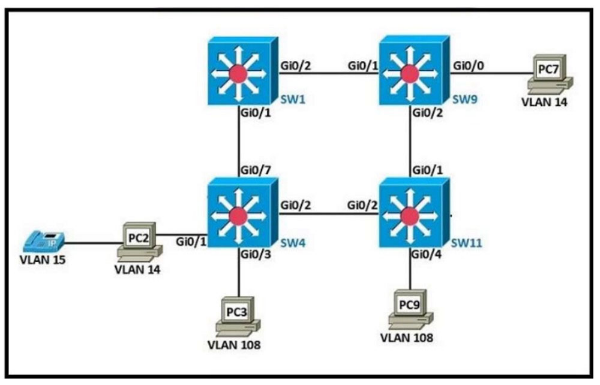

Refer to the exhibit.


The following must be considered:
-SW1 is fully configured for all traffic.
-The SW4 and SW9 links to SW1 have been configured.
-The SW4 interface Gi0/1 and Gi0/0 on SW9 have been configured.
-The remaining switches have had all VLANs added to their VLAN database.

Which configuration establishes a successful ping from PC2 to PC7 without interruption to traffic flow between other PCs?

  1. SW4 interface Gi0/7 switchport mode trunk switchport trunk allowed vlan 108 ! interface Gi/0/2 switchport mode access switchport access vlan 14 SW11# interface Gi0/2 switchport mode trunk switchport trunk allowed vlan 14,108 ! interface Gi0/1 switchport mode trunk switchport trunk allowed vlan 14,108 SW9# interface Gi0/2 switchport mode access switchport access vlan 14
  2. SW4 interface Gi0/2 switchport mode trunk switchport trunk allowed vlan 14,108 SW11# interface Gi0/2 switchport mode trunk switchport trunk allowed vlan 14,108 !! interface Gi0/1 switchport mode trunk switchport trunk allowed vlan 14,108 SW9# interface Gi0/2 switchport mode trunk switchport trunk allowed vlan 14
  3. SW4 interface Gi0/2 switchport mode trunk switchport trunk allowed vlan 14 SW11# interface Gi0/1 switchport mode trunk switchport trunk allowed vlan 14 SW9# interface Gi0/2 switchport mode trunk switchport trunk allowed vlan 108
  4. SW4 interface Gi/0/2 switchport mode access switchport access vlan 14 SW11# interface Gi0/2 switchport mode trunk switchport trunk allowed vlan 14 ! interface Gi0/0 switchport mode access switchport access vlan 14 ! interface Gi0/1 switchport mode trunk SW9# interface Gi0/2 switchport mode access switchport access vlan 14

Answer(s): B

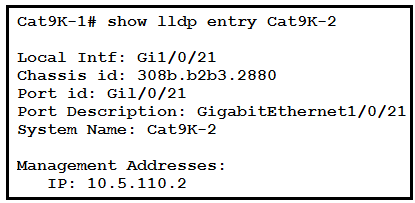

Refer to the exhibit. The network administrator must prevent the switch Cat9K-2 IP address from being visible in LLDP without disabling the protocol. Which action must be taken to complete the task?

  1. Configure the no lldp mac-phy-cfg command globally on Cat9K-2.
  2. Configure the no lldp receive command on interface G1/0/21 on Cat9K-1.
  3. Configure the no lldp transmit command on interface G1/0/21 on Cat9K-1.
  4. Configure the no lldp tlv-select management-address command globally on Cat9K-2.

Answer(s): D
