Cisco Certified Network Associate (CCNA) 200-301 Exam Questions in PDF

Free Cisco 200-301 Dumps Questions (page: 26)

200-301 PDF — 1395 Questions

What are the two functions of SSIDs? (Choose two.)

  1. uses the maximum of 32 alphanumeric characters
  2. controls the speed of the Wi-Fi network
  3. used exclusively with controller-based Wi-Fi networks
  4. supports a single access point
  5. broadcasts by default

Answer(s): A,E



Which two characteristics describe the access layer in a three-tier network architecture? (Choose two.)

  1. serves as the network aggregation point
  2. physical connection point for a LAN printer
  3. designed to meet continuous redundant uptime requirements
  4. layer at which a wireless access point connects to the wired network
  5. provides a boundary between Layer 2 and Layer 3 communications

Answer(s): B,D

Explanation:

The Access Layer is the one closer to the users. In fact, at this layer, we find the users themselves and the access-layer switches. The main purpose of this layer is to physically connect users to the network. In other words, there is just a cable between end-user PCs, printers, and wireless access points and access-layer switches.



Which PoE mode enables powered-devices detection and guarantees power when the device detected?

  1. auto
  2. static
  3. dynamic
  4. active

Answer(s): A



Refer to the exhibit. The router has been configured with a super net to accommodate the requirements for 380 users on a Subnet. The requirement already considers 30% future growth. Which configuration verifies the IP subnet on router R4?

  1. Subnet: 10.7.54.0 Subnet mask: 255.255.128.0 Broadcast address: 10.5.55.255 Usable IP address range: 10.7.54.1 “" 10.7.55.254
  2. Subnet: 10.7.54.0 Subnet mask: 255.255.255.0 Broadcast address: 10.7.54.255 Usable IP address range: 10.7.54.1 “" 10.7.55.254
  3. Subnet: 10.7.54.0 Subnet mask: 255.255.254.0 Broadcast address: 10.7.54.255 Usable IP address range: 10.7.54.1 “" 10.7.55.254
  4. Subnet: 10.7.54.0 Subnet mask: 255.255.254.0 Broadcast address: 10.7.55.255 Usable IP address range: 10.7.54.1 “" 10.7.55.254

Answer(s): D

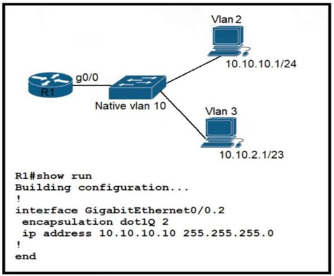

Refer to the exhibit. Configurations for the switch and PCs are complete. Which configuration must be applied so that VLANs 2 and 3 communicate back and forth?

  1. interface GigabitEthernet0/0 ip address 10.10.2.10 255.255.252.0
  2. interface GigabitEthernet0/0.10 encapsulation dot1Q 3 ip address 10.10.2.10 255.255.254.0
  3. interface GigabitEthernet0/0.3 encapsulation dot1Q 3 native ip address 10.10.2.10 255.255.252.0
  4. interface GigabitEthernet0/0.3 encapsulation dot1Q 10 ip address 10.10.2.10 255.255.255.252

Answer(s): B



Viewing page 26 of 281
