QUESTION: 6

SIMULATION

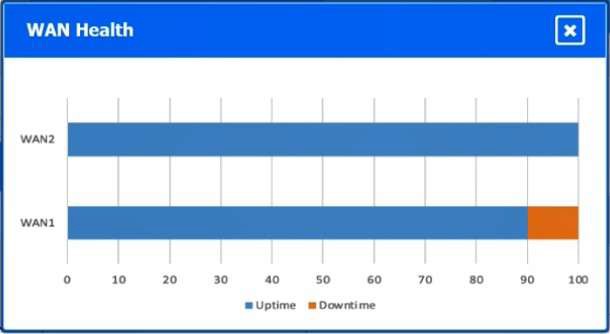

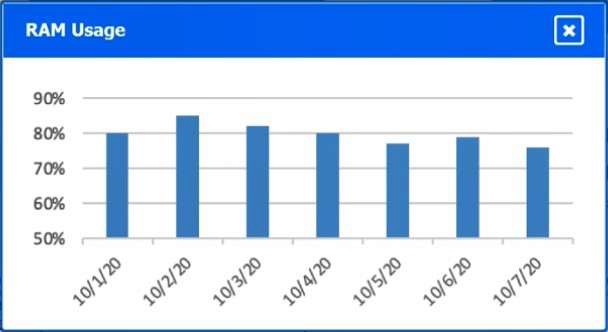

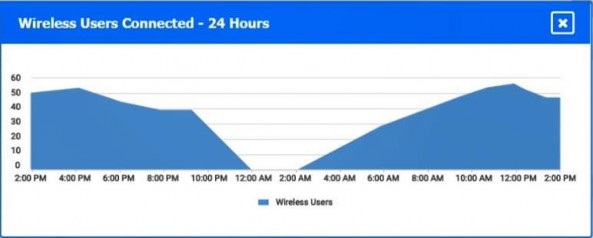

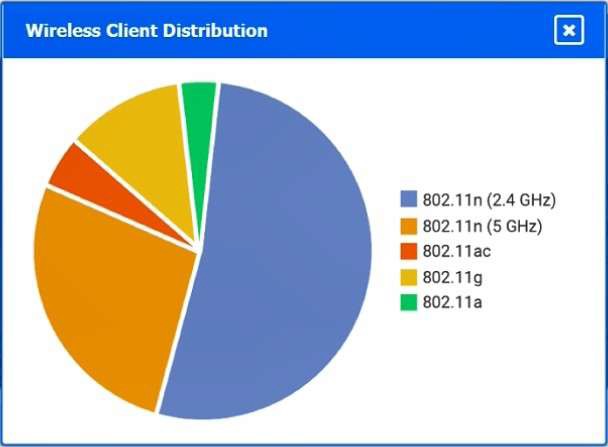

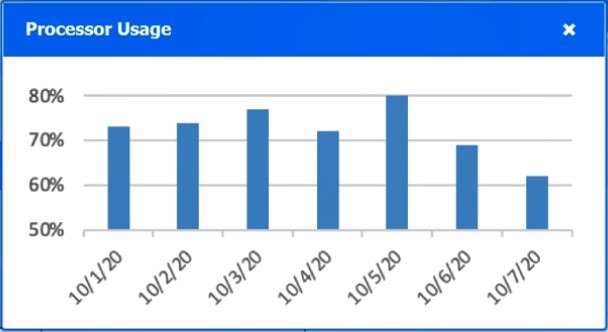

After a recent power outage, users are reporting performance issues accessing the application servers. Wireless users are also reporting intermittent Internet issues.

INSTRUCTIONS

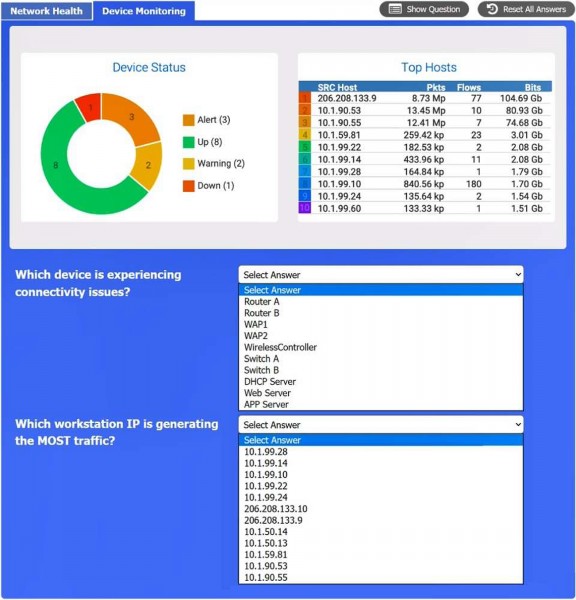

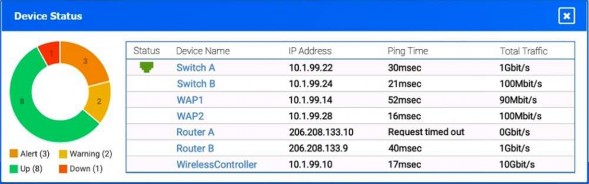

Click on each tab at the top of the screen. Select a widget to view information, then use the drop-down menus to answer the associated questions.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.

See Explanation section for answer.

Answer(s): A

Explanation:

WAN 1:
Uplink Speed: 10G
Total Usage: 26.969GB Up / 1.748GB Down
Average Throughput: 353MBps Up / 23.42MBps Down Loss: 2.51%
Average Latency: 24ms Jitter: 9.5ms
WAN 2:
Uplink Speed: 1G
Total Usage: 930GB Up / 138GB Down
Average Throughput: 12.21MBps Up / 1.82MBps Down Loss: 0.01%
Average Latency: 11ms Jitter: 3.9ms
Although WAN 1 offers greater bandwidth and throughput, it exhibits higher latency and jitter, which could detract from VoIP performance. In contrast, WAN 2, despite its lower bandwidth, offers much lower latency, nearly negligible packet loss, and reduced jitter. These characteristics are essential for VoIP applications, which demand consistent and quick packet delivery.
Therefore, for VoIP communications, WAN 2 is recommended due to its enhanced stability in latency and jitter handling, which are pivotal for the clarity and reliability of voice calls. WAN 1 could be better utilized for other tasks that require high bandwidth and are less affected by latency variations, such as large-scale data transfers.

Reveal Solution Next Question

QUESTION: 7

Which of the following steps of the troubleshooting methodology would most likely include checking through each level of the OSI model after the problem has been identified?

Establish a theory.
Implement the solution.
Create a plan of action.
Verify functionality.

Answer(s): A

Reveal Solution Next Question

QUESTION: 8

While troubleshooting a VoIP handset connection, a technician's laptop is able to successfully connect to network resources using the same port. The technician needs to identify the port on the switch. Which of the following should the technician use to determine the switch and port?

LLDP
IKE
VLAN
netstat

Answer(s): A

Reveal Solution Next Question

QUESTION: 9

A network administrator needs to set up a file server to allow user access. The organization uses DHCP to assign IP addresses. Which of the following is the best solution for the administrator to set up?
