Cisco® 350-601 Exam (page: 9)
Cisco® Implementing and Operating Data Center Core Technologies (DCCOR)
Updated on: 01-Sep-2025

Viewing Page 9 of 106
350-601 PDF 549 Questions

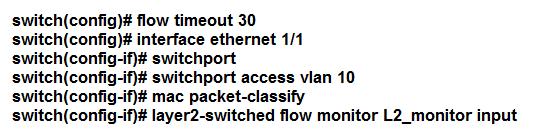

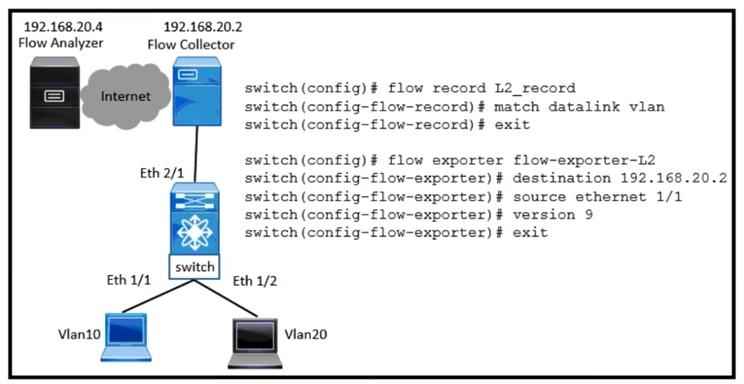

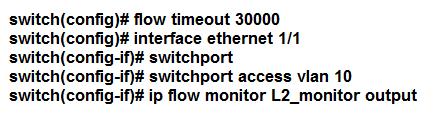

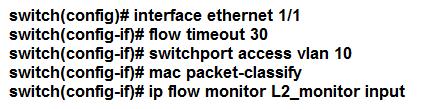

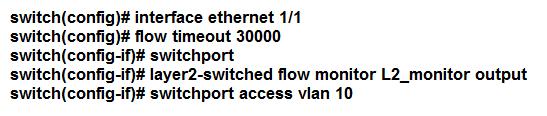

Refer to the exhibit. VLAN 10 is experiencing delays and packet drops when the traffic is forwarded through the switch. The destination flow analyzer accepts traffic captures of not more than 30 seconds. Which configuration implements the traffic capture that meets the requirements?






Answer(s): D

Explanation:


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/system_management/configuration/guide/ b_Cisco_Nexus_9000_Series_NX-OS_System_Management_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX-
OS_System_Management_Configuration_Guide_7x_chapter_011100.html



An engineer performs a set of configuration changes for the vPC domain using Session Manager. Which two commands are used to verify the configuration and apply the device changes when no errors are returned? (Choose two.)

  1. commit
  2. verify
  3. apply
  4. checkpoint
  5. write

Answer(s): A,B

Explanation:

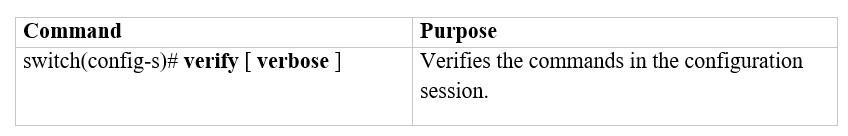

Verifying a Session -
To verify a session, use the following command in session mode.

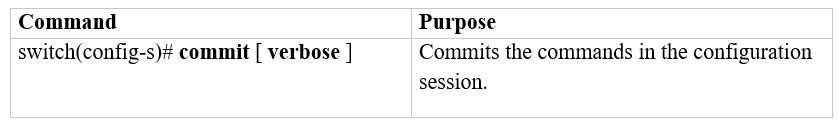

Committing a Session -
To commit a session, use the following command in session mode.


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/configuration/guide/cli/CLIConfigurationGuide/sm_rollback.html

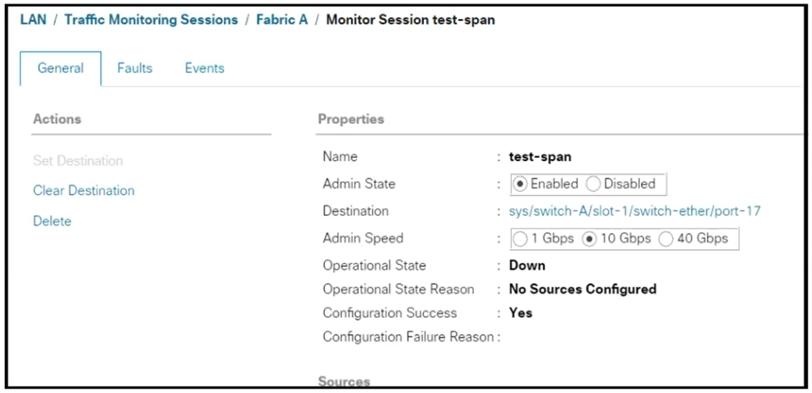

Refer to the exhibit. An engineer must monitor all LAN traffic on Fabric A from a blade server. Which source should be configured in the test-span monitor session to complete this task?

  1. all uplink FCoE ports
  2. all vNICs from the service profile that correspond to this server
  3. all uplink Ethernet ports
  4. all vHBAs from the service profile that correspond to this server

Answer(s): B

Explanation:


Reference:

https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/UCSM_GUI_Configuration



An engineer configured an environment that contains the vPC and non-vPC switches. However, it was noticed that the downstream non-vPC switches do not receive the same STP bridge ID from the upstream vPC switch peers. Which vPC feature must be implemented to ensure that vPC and non-vPC switches receive the same STP bridge ID from the upstream vPC switch peers?

  1. vpc local role-priority 4000
  2. peer-switch
  3. system-mac 0123.4567.89ab
  4. peer-gateway

Answer(s): B

Explanation:


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/6-x/interfaces/configuration/guide/b_Cisco_Nexus_9000_Series_NX-
OS_Interfaces_Configuration_Guide/b_Cisco_Nexus_9000_Series_NX-OS_Interfaces_Configuration_Guide_chapter_0111.html



A network architect wants to propose a scalable network monitoring solution in which data is repeatedly acquired from network devices. The solution must use a push model and provide close to real-time access to operational data. Which technology must be used to meet these requirements?

  1. CLI-based scripting
  2. logging
  3. SNMPv3
  4. streaming telemetry

Answer(s): D

Explanation:


Reference:

https://blogs.cisco.com/developer/its-time-to-move-away-from-snmp-and-cli-and-use-model-driven-telemetry
