Cisco® 350-601 Exam (page: 11)
Cisco® Implementing and Operating Data Center Core Technologies (DCCOR)
Updated on: 01-Sep-2025

Viewing Page 11 of 106
350-601 PDF 549 Questions

An engineer must configure OSPF routing on Cisco Nexus 9000 Series Switches. The IP subnet of the Eth1/2 interfaces for both switches must be advertised via
OSPF. However, these interfaces must not establish OSPF adjacency or send routing updates. The current OSPF adjacency over the interfaces Eth1/1 on SW1 and Eth1/1 on SW2 must remain unaffected. Which configuration must be applied to both Nexus switches to meet these requirements?





Answer(s): C

Explanation:


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/6-x/unicast/configuration/guide/l3_cli_nxos/l3_ospf.html



A network engineer must perform a backup and restore of the Cisco Nexus 5000 Series Switch configuration. The backup must be made to an external backup server. The only protocol permitted between the Cisco Nexus Series switch and the backup server is UDP. The backup must be used when the current working configuration of the switch gets corrupted. Which set of steps must be taken to meet these requirements?

  1. 1. Perform a running-config backup to an SFTP server. 2. Copy backup-config from the SFTP server to the running-config file.
  2. 1. Perform a startup-config backup to a TFTP server. 2. Copy backup-config from the backup server to the running-config file.
  3. 1. Perform a running-config backup to an SCP server. 2. Copy running-config in the boot flash to the running-config file.
  4. 1. Perform a startup-config backup to an FTP server. 2. Copy startup-config in the boot flash to the running-config file.

Answer(s): B

Explanation:

Of the answer choices given, only TFTP uses UDP. SFTP runs on TCP 22 (but can be assigned whatever port you want, but only TCP). TFTP runs on UDP port
69. SCP runs on TCP port 22.
FTP runs on TCP port 21 to establish connection and TCP 20 to transfer data.

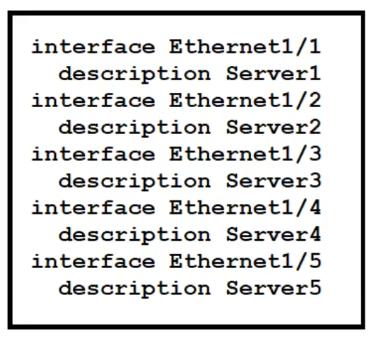

Refer to the exhibit. Which command is run from the Guest Shell to set the description on the first five interfaces of the Cisco Nexus switch?

  1. [guestshell@guestshell ~]$ for x in {1..5}; dohost ג€conf t ; interface eth1/$x ; description Server$xג€;
  2. [guestshell@guestshell ~]$ for x in {1..5}; do dohost ג€conf t ; interface eth1/$x ; description Server$xג€; done
  3. [guestshell@guestshell ~]$ for x in (1..5); do dohost ג€conf tג€; ג€interface eth1/$xג€ ; ג€description Server$xג€; done
  4. [guestshell@guestshell ~]$ for x in (1..5); dohost ג€conf t ; interface eth1/$x ; description Server$xג€;

Answer(s): B

Explanation:


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/programmability/guide/b_Cisco_Nexus_9000_Series_NX-
OS_Programmability_Guide_7x/Guest_Shell.html



An engineer must configure multiple EPGs on a single access port in a large Cisco ACI fabric without using VMM integration. The relevant access policies and tenant policies have been created. A single AAEP is used to configure the access ports in the fabric. Which two additional steps must be taken to complete the configuration? (Choose two.)

  1. The EPGs must link directly to the corresponding AAEP
  2. A contract must be defined between the EPGs
  3. The EPGs must be configured as static ports
  4. The corresponding bridge domains must be configured in legacy mode
  5. The EPGs must be linked to the correct physical domain

Answer(s): C,E

Explanation:


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/L2_config/b_Cisco_APIC_Layer_2_Configuration_Guide/ b_Cisco_APIC_Layer_2_Configuration_Guide_chapter_011.html



Several production and development database servers exist in the same EPG and IP subnet. The IT security policy is to prevent connections between production and development. Which attribute must be used to assign the servers to different microsegments?

  1. data center
  2. VM name
  3. IP address
  4. VMM domain

Answer(s): B

Explanation:


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/3-x/virtualization/b_ACI_Virtualization_Guide_3_1_1/ b_ACI_Virtualization_Guide_3_1_1_chapter_0100.html#concept_D527CF389D4440E69A288093516B3643



Viewing Page 11 of 106
