Cisco® 350-601 Exam (page: 15)
Cisco® Implementing and Operating Data Center Core Technologies (DCCOR)
Updated on: 01-Sep-2025

Viewing Page 15 of 106
350-601 PDF 549 Questions

Refer to the exhibit. A network engineer is implementing a configuration checkpoint on a Cisco Nexus 9000 Series Switch. The configuration must skip any existing vPC configuration errors and must complete if there are any configuration errors. The engineer finished the vPC domain configuration part. Which command completes the checkpoint implementation?

  1. best-effort
  2. stop-at-first-failure
  3. atomic
  4. verbose

Answer(s): A

Explanation:

The available options are:
1. atomic(default) Rollback only if there are no errors
2. Best-Effort: Rollback and skip any errors
3. Stop at First Failure : Rollback and stop if an error occurs


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/system_management/configuration/guide/ b_Cisco_Nexus_9000_Series_NX-OS_System_Management_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX-
OS_System_Management_Configuration_Guide_7x_chapter_01000.pdf



An engineer must implement a VXLAN-based data center interconnect. The long-distance transport provided by a service provider is IP-based, supports a maximum MTU of 1554 bytes, and does not support outbound traffic replication. Which action must be taken to build the data center interconnect?

  1. Announce host reachability over BGP.
  2. Create an IP access list and associate it with VNI to replicate traffic to remote VTEPs.
  3. Configure a route map to associate the IPs of the remote VTEPs.
  4. Implement BGP EVPN ingress replication.

Answer(s): D

Explanation:


Reference:

https://www.cisco.com/c/en/us/products/collateral/switches/nexus-9000-series-switches/white-paper-c11-739942.html



An engineer must perform an initial configuration of VXLAN Tunnel End-Point functionality on the Cisco Nexus 9000 Series platform. All the necessary features are already enabled on the switch. Which configuration set must be used to accomplish this goal?

  1. NX9K(config)# interface loopback0 NX9K(config-if)# ip address 10.10.10.11/32 NX9K(config)# interface VLAN10 NX9K(config-if)# ip unnumbered loopback0 NX9K(config)# interface nve1 NX9K(contig-if-nve)# source-interface loopback0
  2. NX9K(config)# interface loopback0 NX9K(config-if)# ip address 10.10.10.11/32 NX9K(config)# interface overlay0 NX9K(config-if-overlay)# source-interface loopback0 NX9K(config)# interface VLAN10 NX9K(contig-if-nve)# source-interface loopback0
  3. NX9K(config)# interface loopback0 NX9K(config-if)# ip address 10.10.10.11/32 NX9K(config)# interface tunnel1 NX9K(config-if)# tunnel source loopback0 NX9K(config)# interface ethernet1/1 NX9K(contig-if)# ip unnumbered loopback0
  4. NX9K(config)# interface loopback0 NX9K(config-if)# ip address 10.10.10.11/32 NX9K(config)# interface nve1 NX9K(config-if-nve)# source-interface loopback0 NX9K(config)# interface ethernet1/1 NX9K(contig-if)# ip unnumbered loopback0

Answer(s): D

Explanation:


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/vxlan/configuration/guide/b_Cisco_Nexus_9000_Series_NX-
OS_VXLAN_Configuration_Guide_7x/b_Cisco_Nexus_9000_Series_NX-OS_VXLAN_Configuration_Guide_7x_chapter_011.html



An engineer must perform a software upgrade on a production Cisco Nexus 7000 Series Switch. Before the upgrade activity, the requirement is for all ports to be shut down and routing protocols to terminate gracefully. Which feature must be used to meet these requirements?

  1. Switch Profile
  2. Service Profile Template
  3. Maintenance Mode Profile
  4. Configuration Profile

Answer(s): C

Explanation:

You can use maintenance mode to isolate a switch from the network in order to perform debugging or an upgrade. When switch maintenance is complete, you can return the switch to normal mode.
When you place the switch in maintenance mode, all protocols are gracefully brought down and all physical ports are shut down. When normal mode is restored, all the protocols and ports are brought back up.


Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus6000/sw/system_management/7x/b_6k_System_Mgmt_Config_7x/ configuring___maintenance_mode.pdf



DRAG DROP (Drag and Drop is not supported)

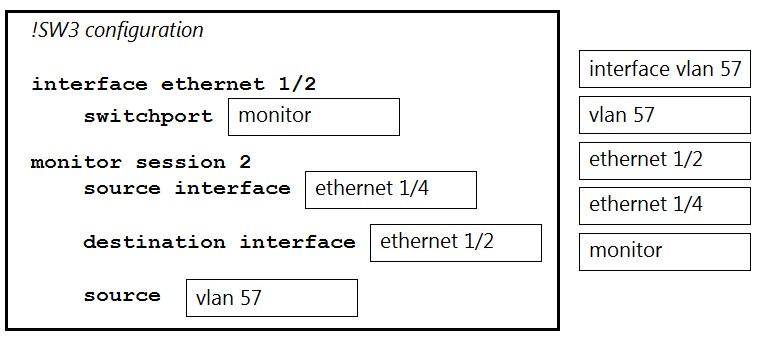

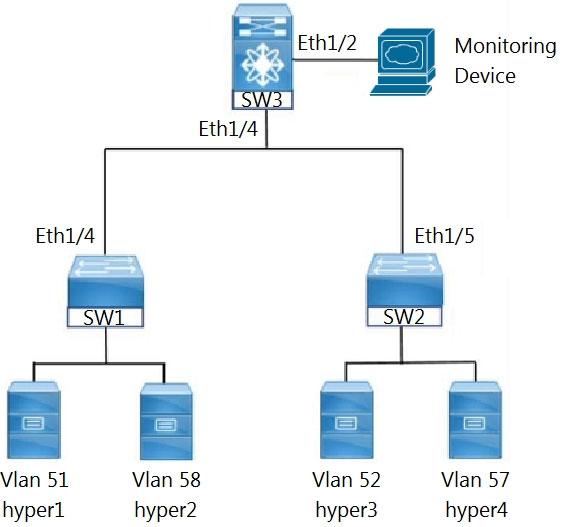

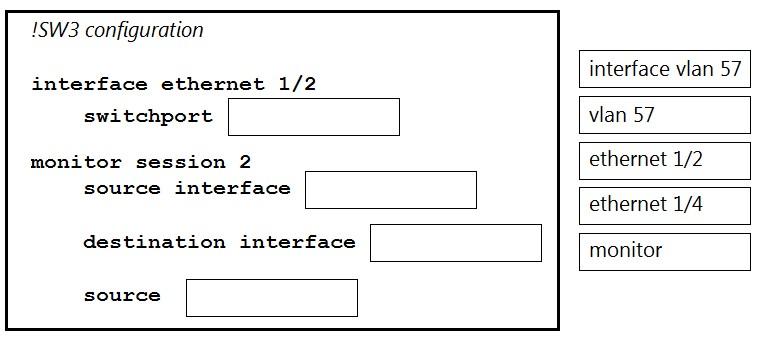

Refer to the exhibit. An engineer must monitor the Ethernet port and the corresponding VLAN traffic for the hyper4 device. The SW3 device is a Cisco Nexus 7000
Series Switch. Drag and drop the code snippets from the right into the boxes in the configuration to meet these requirements.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:



Viewing Page 15 of 106
