QUESTION: 76

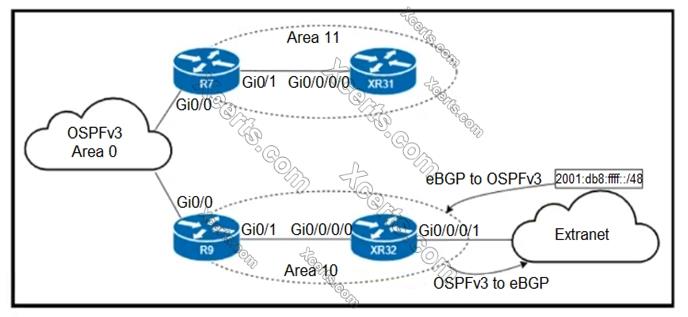

Refer to the exhibit.

An engineer is updating this network to meet these conditions:
-Area 10 will receive inter-area routes and support mutual redistribution of external routes with the extranet.
-The ::/0 route is prohibited in Area 10.
-Area 11 will receive only the ::/0 route from the ABR.
-External route redistribution is not supported in Area 11.
-The ABR in Area 11 will advertise no interarea routes.

Which two configurations must be performed to meet the requirements? (Choose two.)

Configure area 10 as nssa on R9 and XR32
Configure area 11 as stub no-summary on R7 and as stub on XR31
Configure area 11 as nssa no-summary on R7 and as nssa on XR31
Configure area 11 as nssa default-information-originate on R7 and as nssa on XR31
Configure area 10 as stub on R9 and XR32

Answer(s): A,B

Reveal Solution Next Question

QUESTION: 77

A network team has failed to implement IS-IS multitopology. What is the reason for it?

The routing process supported Level 1 only
The router did not support VRFs
The routing process did not support extended metrics
The router did not have Cisco Discovery Protocol and Cisco Express Forwarding disabled

Answer(s): C

Reveal Solution Next Question

QUESTION: 78

ASN 65001 is peering with ASN 65002 to exchange IPv6 BGP routes. All routes that originate in ASN 65001 have a standard community value of 65001:100, and ASN 65002 is allowed to advertise only 2001:db8:aaaa::/48. An engineer needs to update the ASN 65001 route-filtering configuration to meet these conditions:
-Looped routes into ASN 65001 and routes that have traversed 10 or more ASNs must be denied.
-Routes accepted into ASN 65001 must be assigned a community value of 65001:200.

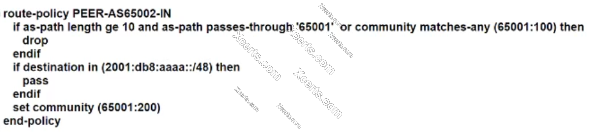

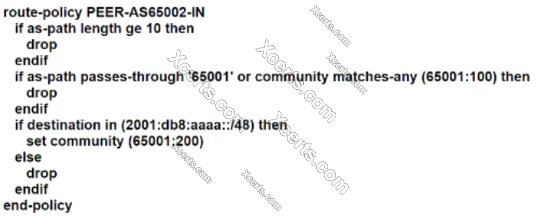

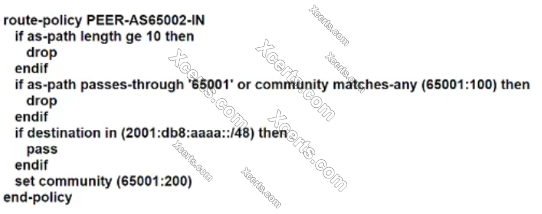

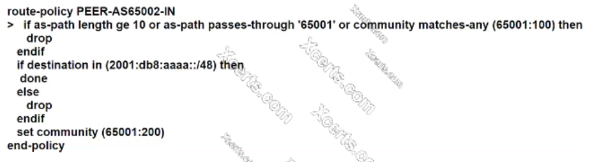

Which configuration must be engineer apply to the ASN 65001 border router?

Answer(s): C

Reveal Solution Next Question

QUESTION: 79

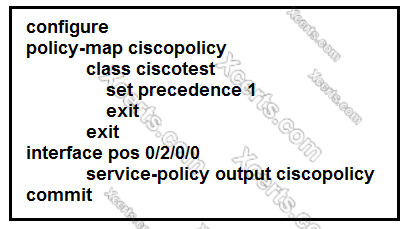

Refer to the exhibit.

An engineer needs to implement this QoS policy on customer’s network due to ongoing slow network issues. What will be the effect on the network when the engineer implements this configuration?

Traffic that is identified in the ciscopolicy class map will be remarked from IP precedence 1 to DSCP AF11 when it exits the pos0/2/0/0 interface
Traffic that is identified in the ciscotest class map will be marked with IP precedence 1 when it exits the pos0/2/0/0 interface
Traffic that is identified in the ciscopolicy class map will be marked with IP precedence 1 when it enters the pos0/2/0/0 interface
Traffic that is identified in the ciscotest class map will be remarked from IP precedence 1 to DSCP AF11 when it enters the pos0/2/0/0 interface

Answer(s): B

Reveal Solution Next Question

QUESTION: 80

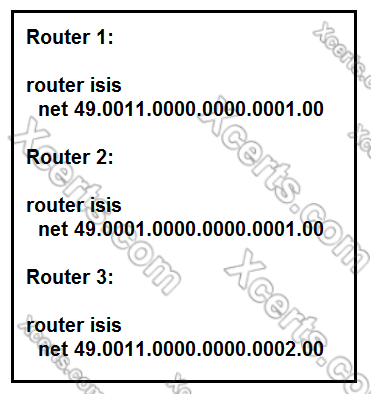

Refer to the exhibit.

Router 4 is added to the network and must be in the same area as router 1. Which NET should the engineer assign?

49.0111.0000.0000.0001.00
49.0001.0000.0000.0004.00
49.0011.0000.0000.0002.00
49.0011.0000.0000.0003.00

Answer(s): D

Reveal Solution Next Question
