Cisco® 350-401 Exam (page: 33)
Cisco® Implementing Enterprise Network Core Technologies (ENCOR)
Updated on: 10-Jan-2026

Viewing Page 33 of 214
350-401 PDF 1067 Questions

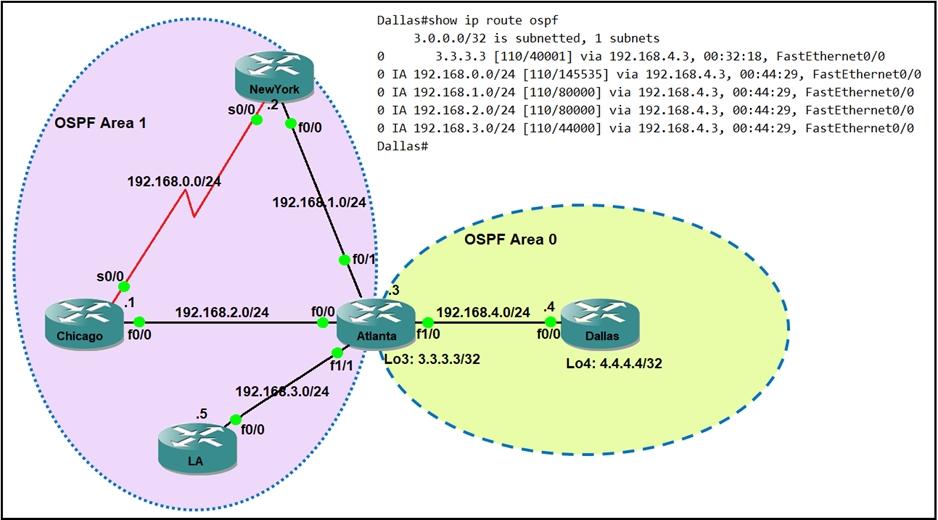

Refer to the exhibit.
Which command when applied to the Atlanta router reduces type 3 LSA flooding into the backbone area and summarizes the inter-area routes on the Dallas router?

  1. Atlanta(config-router)#area 0 range 192.168.0.0 255.255.252.0
  2. Atlanta(config-router)#area 1 range 192.168.0.0 255.255.248.0
  3. Atlanta(config-router)#area 0 range 192.168.0.0 255.255.248.0
  4. Atlanta(config-router)#area 1 range 192.168.0.0 255.255.252.0

Answer(s): D



An engineer must configure interface GigabitEthernet0/0 for VRRP group 10.
When the router has the highest priority in the group, it must assume the master role.
Which command set must be added to the initial configuration to accomplish this task?
Initial Configuration
interface GigabitEthernet0/0
description To IDF A 38-24-044.40
ip address 172.16.13.2 255.255.255.0

  1. standby 10 ip 172.16.13.254 255.255.255.0 standby 10 preempt
  2. vrrp group 10 ip 172.16.13.254 255.255.255.0 vrrp group 10 priority
  3. standby 10 ip 172.16.13.254 standy 10 priority 120
  4. vrrp 10 ip 172.16.13.254 vrrp 10 preempt

Answer(s): D



DRAG DROP (Drag and Drop is not supported)

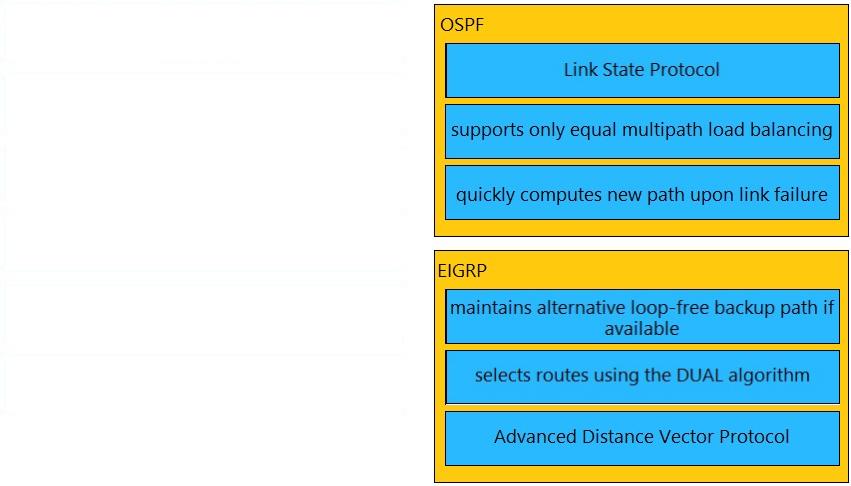

Drag and drop the characteristics from the left onto the routing protocols they describe on the right.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:

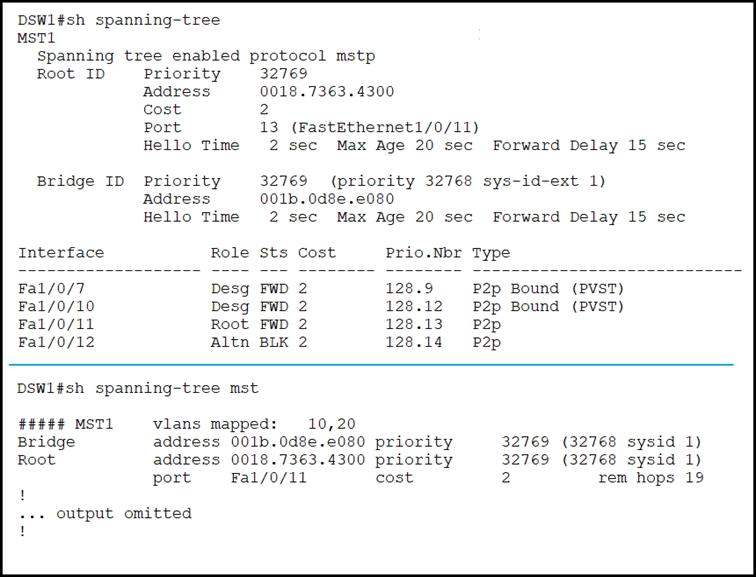

Refer to the exhibit.
Which two commands ensure that DSW1 becomes the root bridge for VLAN 10 and 20? (Choose two.)

  1. spanning-tree mst 1 priority 4096
  2. spanning-tree mst 1 root primary
  3. spanning-tree mst vlan 10,20 priority root
  4. spanning-tree mst 1 priority 1
  5. spanning-tree mstp vlan 10,20 root primary

Answer(s): A,B

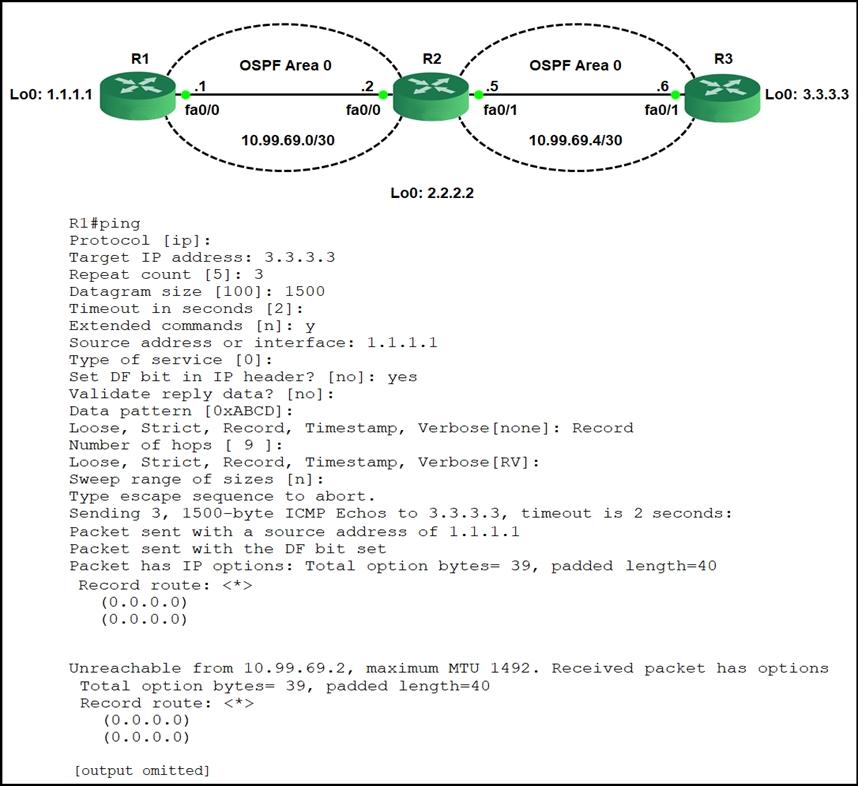

Refer to the exhibit. R1 is able to ping the R3 fa0/1 interface.
Why do the extended pings fail?

  1. The maximum packet size accepted by the command is 1476 bytes.
  2. The DF bit has been set.
  3. R3 is missing a return route to 10.99.69.0/30.
  4. R2 and R3 do not have an OSPF adjacency.

Answer(s): B
