300-510 Exam Questions and Answers | Exam-Dumps (Page: 8)

QUESTION: 36

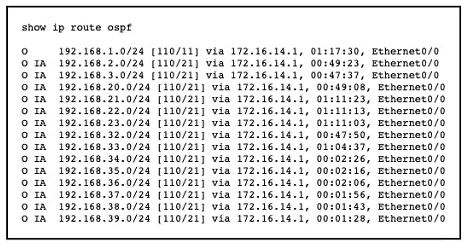

Refer to the exhibit.

An engineer applied the summarization configuration on R1 for four networks (192.168.20.0/24 to 192.168.23.0/24) in area 1 and eight networks (192.168.32.0/24 to 192.168.39.0/24) in area 2 to stop the flooding of all the customer routes. While checking the routing table of R2, the engineer noticed that R1 is still sending only specific routes to R2. Which configuration should the engineer apply on R1 to summarize routes?

Answer(s): D

Reveal Solution Next Question

QUESTION: 37

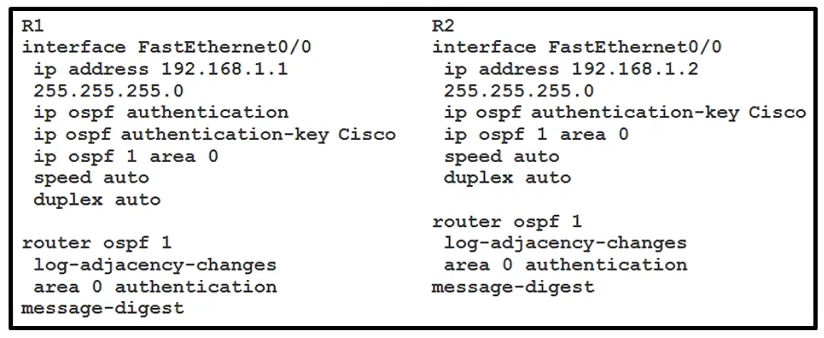

Refer to the exhibit. While applying the configurations on two routers, an engineer notices that OSPF adjacency between them remains down. Through the ping test, the engineer confirmed that both the routers have Layer 3 reachability between them. Which action should the engineer take to make the adjacencies to full?

Enable OSPF just inside the router OSPF process, not in the interfaces of any router
Delete the area 0 authentication message-digest command from the OSPF process in R1
Enter the command ipospf authentication in R2 interface
Delete the area 0 authentication message-digest command from the OSPF process in R2

Answer(s): C

Reveal Solution Next Question

QUESTION: 38

What are three requirements for a static IPv6-in-IPv4 tunnel? (Choose three.)

A dynamic IPv6 address must be configured
A dynamic IPv4 address must be configured
A static IPv4 address must be configured
A static IPv6 address must be configured
Each tunnel endpoint must support IPv4 and IPv6
Cisco Express Forwarding must be enabled

Answer(s): B,D,E

Reveal Solution Next Question

QUESTION: 39

What are two differences between OSPF and IS-IS? (Choose two.)

Unlike IS-IS routers, an OSPF router belongs to only one area in addition to the backbone area
OSPF uses a router ID to identify a router, and IS-IS uses a system ID
OSPF is a link-state routing protocol, and IS-IS is a distance-vector routing protocol
Unlike OSPF, IS-IS supports virtual links
OSPF elects a DR and BDR, and IS-IS elects a DIS

Answer(s): B,E

Reveal Solution Next Question

QUESTION: 40

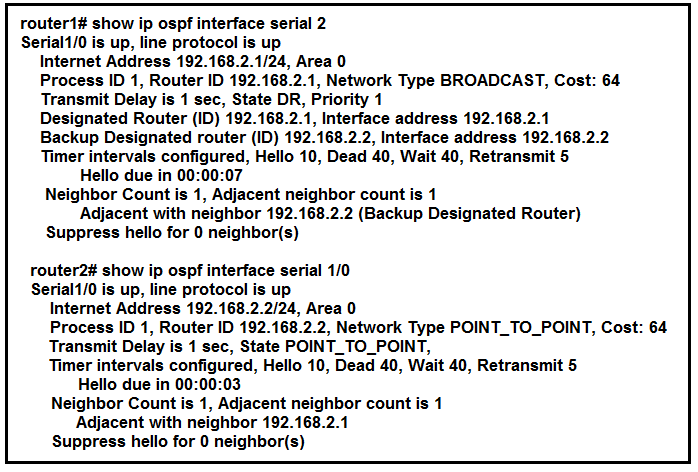

Refer to the exhibit. Router1 and Router2 have shared routes in the OSPF database, but the routes are missing from their routing tables. Checking the prefix-list configuration on both routers, the engineer confirmed all networks are allowed. What action should the engineer take to fix the problem?

Configure interface Serial1/0 on Router1 as a point-to-point interface
Configure the two routers with different process IDs
Switch the DR and BDR roles between the two routers
Configure the two routers with different hello and dead timer values

Answer(s): A

Reveal Solution Next Question
