Cisco® 200-301 Exam (page: 13)
Cisco® Certified Network Associate (CCNA)
Updated on: 25-Dec-2025

Viewing Page 13 of 281
200-301 PDF 1395 Questions

Which two options are the best reasons to use an IPV4 private IP space? (Choose two.)

  1. to enable intra-enterprise communication
  2. to implement NAT
  3. to connect applications
  4. to conserve global address space
  5. to manage routing overhead

Answer(s): A,D

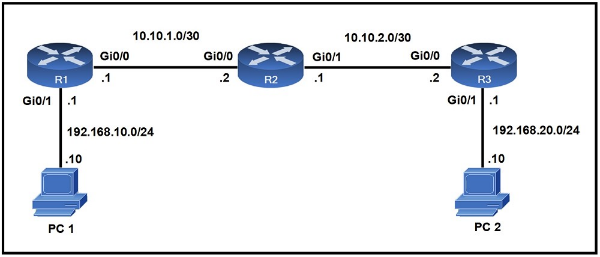

Refer to the exhibit. When PC1 sends a packet to PC2, the packet has which source and destination IP address when it arrives at interface Gi0/0 on router R2?

  1. source 192.168.10.10 and destination 10.10.2.2
  2. source 192.168.20.10 and destination 192.168.20.1
  3. source 192.168.10.10 and destination 192.168.20.10
  4. source 10.10.1.1 and destination 10.10.2.2

Answer(s): C

Explanation:

The source and destination IP addresses of the packets are unchanged on all the way. Only source and destination MAC addresses are changed.



What is the same for both copper and fiber interfaces when using SFP modules?

  1. They support an inline optical attenuator to enhance signal strength
  2. They accommodate single-mode and multi-mode in a single module
  3. They provide minimal interruption to services by being hot-swappable
  4. They offer reliable bandwidth up to 100 Mbps in half duplex mode

Answer(s): C



What are two functions of a server on a network? (Choose two.)

  1. handles requests from multiple workstations at the same time
  2. achieves redundancy by exclusively using virtual server clustering
  3. housed solely in a data center that is dedicated to a single client achieves redundancy by exclusively using virtual server clustering
  4. runs the same operating system in order to communicate with other servers
  5. runs applications that send and retrieve data for workstations that make requests

Answer(s): A,E



Which function is performed by the collapsed core layer in a two-tier architecture?

  1. enforcing routing policies
  2. marking interesting traffic for data policies
  3. applying security policies
  4. attaching users to the edge of the network

Answer(s): A
