Avaya 71300X Exam (page: 3)
Avaya Aura Communication Applications Integration Exam
Updated on: 31-Mar-2026

Viewing Page 3 of 15
71300X PDF 70 Questions

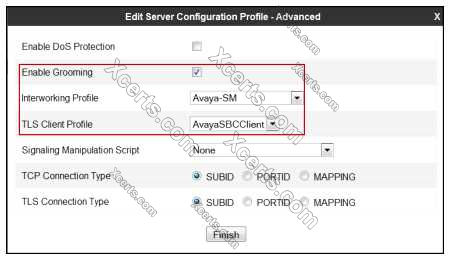

You want to multiplex all remote workers SIP messages to Avaya Aura® Session Manager (SM) over the same TCP connection, rather than open a dedicated TCP connection for each user. Which feature needs to be enabled for Avaya Session Border Controller for Enterprise (SBCE)?

  1. the Enable Grooming feature in the Advanced tab of the Avaya Aura® Session Manager (SM) Server Profile
  2. the Enable Shared Control feature in the Signaling Interface.
  3. the Stream Users Over Transport Link feature in the Signaling Interface
  4. the Share Transport Link feature in the Advanced tab of the Avaya Aura® Session Manager (SM) Server Profile

Answer(s): A

Explanation:

Example:


Reference:

Configuring Remote Workers with Avaya Session Border Controller for Enterprise Rel. 6.2, Avaya Aura® Communication Manager Rel. 6.3 and Avaya Aura® Session Managers Rel. 6.3 - Issue 1.0, page 36
https://downloads.avaya.com/css/P8/documents/100183254



A field engineer runs the Installation Wizard to install the Avaya Session Border Controller for Enterprise (SBCE).
Which statement about the Domain Name Service (DNS) configuration is true?

  1. A DNS address always needs to be configured for both the Primary and Secondary DNS, even if only the DNS is available.
  2. A DNS address does not need to be configured.
  3. A DNS address needs to be configured, even if it is unused and/or unreachable.
  4. A DNS address should not be configured here.

Answer(s): C

Explanation:

The system requires the DNS server to resolve the host names for alarming and remote access name associated with the Avaya Service Center.You must supply a DNS address entry, even if it is unused and/or unreachable.



A company is deploying Avaya Session Border Controller for Enterprise (SBCE) to support SIP trunking.
What is the minimum number of IP-addresses they need to assign to the private and public Network Interface Cards (NICs)?

  1. Two addresses are assigned to the private NIC and two addresses are assigned to the public NIC.
  2. One address is assigned to the private NIC and one address is assigned to the public NIC.
  3. Two addresses are assigned to the private NIC and one address is assigned to the public NI
  4. One address is assigned to the private NIC and two addresses are assigned to the public NIC.

Answer(s): B

Explanation:

Example configuration:


Reference:

Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 305



In Avaya Session Border Controller for Enterprise (SBCE), what is the default state of an Interface?

  1. Deployed
  2. Enabled
  3. Disabled
  4. Active

Answer(s): C

Explanation:

Example:

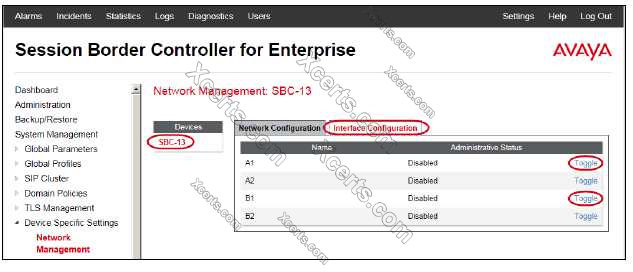

Commission the SBC--SBC Configuration
1. The A1 and B1 interfaces display on the Network Configuration tab.
2. Click on the Interface Configuration tab:

3. Click the Toggle link for both the A1 and the B1 interfaces. The Administrative Status for both A1 and B1 changes to Enabled:


Reference:

Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 203



To set Timers, URI Manipulation, and Header Manipulation that the Avaya Session Border Controller for Enterprise (SBCE) will use when signaling to the far-end server; a profile like "avaya-ru" is provided by default.
When configuring the Server Configuration, you must link to which type of Global profile?

  1. Signaling
  2. Routing
  3. Topology Hiding
  4. Server Interworking

Answer(s): D

Explanation:

The standard Avaya profile "avaya-ru" is cloned for the Call Server Interworking Profile. The Interworking function of the Global Profiles feature enables the SBCE to function in an enterprise VoIP network using different SIP protocols.


Reference:

Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 339



Viewing Page 3 of 15
