Avaya 71300X Exam (page: 2)
Avaya Aura Communication Applications Integration Exam
Updated on: 12-Feb-2026

Viewing Page 2 of 15
71300X PDF 70 Questions

On Avaya Session Border Controller for Enterprise (SBCE), which two ways can be used to view System Logs? (Choose two.)

  1. from CLI execute cat > var > log > Avaya > syslog
  2. from System Manager web GUI > Alarms and Events
  3. from CLI execute cat archive > syslog > ipcs.log
  4. from EMS web GUI SBCE Dashboard access Logs > System Logs

Answer(s): C,D

Explanation:

C: Call Trace data are written to this location:
­ /archive/syslog/ipcs/octeon.log
D: Viewing system logsProcedure
1. Log on to the EMS web interface with administrator credentials.
2. Select the Logs option from the toolbar, and click the System Logs menu. The system displays the Syslog Viewer screen. On this screen, you can specify criteria in the Query Options section to filter the results displayed.
3. In the Start Date and End Date fields, filter the results displayed in a search report to fall within starting and ending dates and times. In previous Avaya SBCE Syslog Viewer windows, there were four separate fields: Start Date, Start Time, End Date, and End Time.


Reference:

Troubleshooting and Maintaining Avaya Session Border Controller for Enterprise (December 2015), page 21
Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 478



In the Avaya Session Border Controller for Enterprise (SBCE), before a traffic carrying Network Interface (A1 or B1) can be pinged, to which state do you have to toggle the status on Device Specific Settings > Network Management / Interfaces?

  1. Enabled
  2. In-Service
  3. Accept Service
  4. Active

Answer(s): A

Explanation:

Commission the SBC--SBC Configuration


3. Click the Toggle link for both the A1 and the B1 interfaces. The Administrative Status for both A1 and B1 changes to Enabled:
Reference: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 203



How many Server Flows and/or Subscriber Flows are required for SIP Trunking?

  1. one Subscriber Flow and two Server Flows
  2. a minimum of two Subscriber Flows
  3. one Subscriber Flow and one Server Flow
  4. a minimum of two Server Flows

Answer(s): A

Explanation:

Two types of flows need to be defined for the proper routing of SIP messages from and to the endpoints and the SIP server.

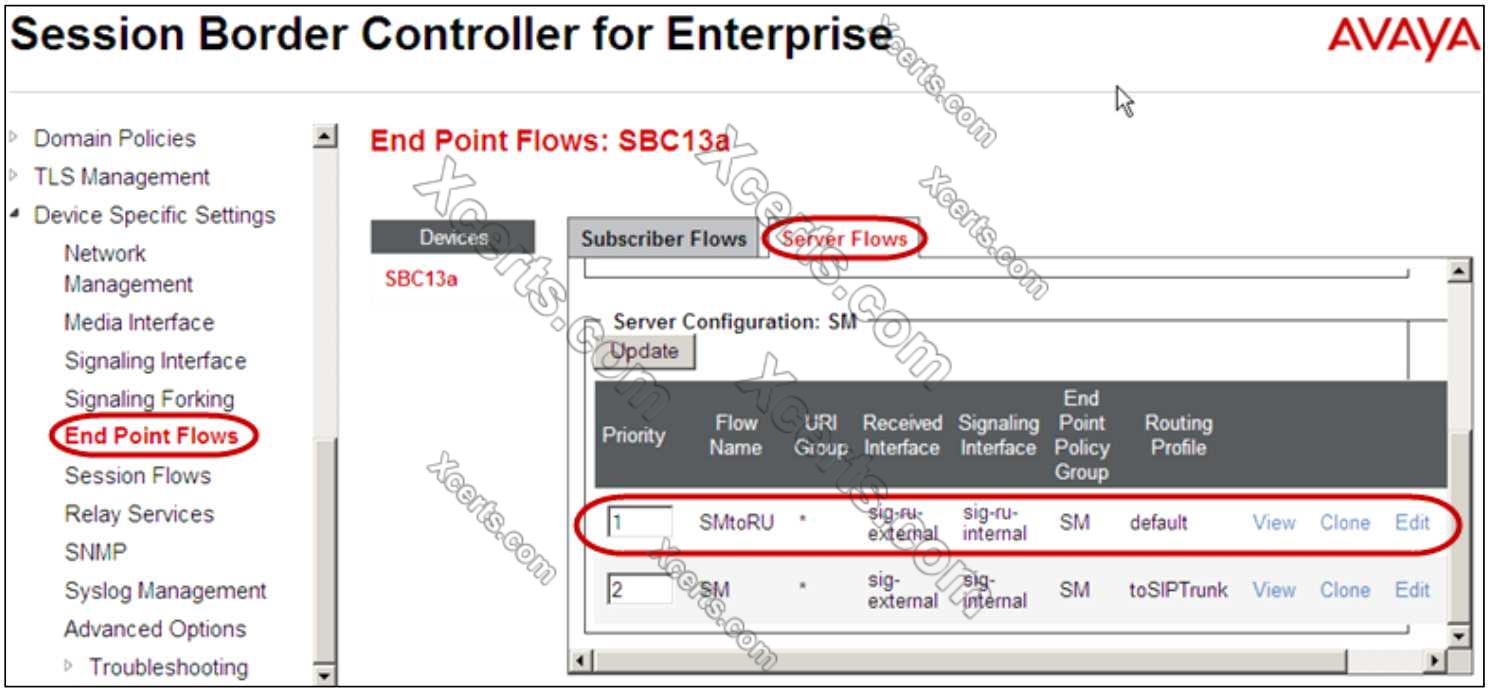

Example, Server Flows:


Reference:

Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 540, 546



In Avaya Session Border Controller for Enterprise (SBCE) 7.x, you need to download the 46xxsettings.txt file to a Remote Worker device.
What needs to be configured under DMZ Services > Relay Services?

  1. Application Relay and File Transfer
  2. Reverse Proxy
  3. Application Relay
  4. Application Relay and Reverse Proxy

Answer(s): C

Explanation:

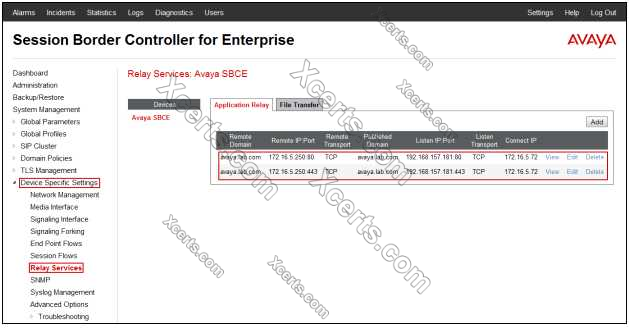

Relay Services are used to define how file transfers (e.g., for phone firmware upgrades and configuration), are routed to the Remote Worker endpoints. Example: 2 For accessing the file server using HTTPS protocol The following screenshot shows the newly created Relay Services


Reference:

Configuring Remote Workers with Avaya Session Border Controller for Enterprise Rel.
6.2, Avaya Aura
Communication Manager Rel. 6.3 and Avaya Aura Session Managers Rel. 6.3 - Issue 1.0, page 73 https://downloads.avaya.com/css/P8/documents/100183254



When planning the Avaya Session Border Controller for Enterprise (SBCE) for SIP Trunking, what is a good practice to adopt?

  1. Name Interfaces consistently, for example, A1 for Internal network to Call Server and B1 for external to Trunk Server.
  2. Name all internal and external interfaces exactly the same.
  3. Use the same IP address on both, internal and external sides of the network.
  4. Use one Avaya Session Border Controller for Enterprise on the internal and external sides of the network.

Answer(s): A

Explanation:

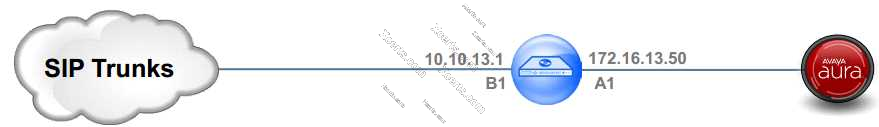

Use the same interface mapping throughout! Examples in this section use:


Reference:

Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 304



Viewing Page 2 of 15
