QUESTION: 6

Scenario 3:
After resolving numerous connectivity issues throughout the various branch sites, connectivity between applications and users is finally present. The network administrator is informed that during certain tests, applications are not performing as they are expected to. Users report that call quality has not fully improved and that some of their calls either drop or have poor voice quality where the conversation is breaking up. Other users are noticing that file transfers are slower than expect. A group of users from a few sites have reported slowness in accessing internal and external applications.
Exhibit.
Users at a remote office are complaining about poor performance with certain applications. The network administrator has already configured Business Policies based on these requirements.
What is the sequence of parameters that the administrator can check to troubleshoot this problem? (Choose two.)

Change the bandwidth measurement under WAN Overlay Advanced Settings.
Check underlay network (bandwidth, latency, jitter, packet loss).
Under Monitor, check Routing tab.
Review Business Policies configuration and match them against the business requirements.

Answer(s): B,D

Reveal Solution Next Question

QUESTION: 7

Scenario 3:
After resolving numerous connectivity issues throughout the various branch sites, connectivity between applications and users is finally present. The network administrator is informed that during certain tests, applications are not performing as they are expected lo. Users report that call quality has not fully improved and that some of their calls either drop or have poor voice quality where the conversation is breaking up. Other users are noticing that file transfers are slower than expect. A group of users from a few sites have reported slowness in accessing internal and external applications.
Exhibit.
Users are complaining that web pages to certain web sites are very slow to load and at times unresponsive. The network administrator has verified that the traffic is going correctly out the underlay.
What should the administrator check next?

Verify if Path-MTU Discovery is disabled.
Verify if there is latency, loss, or jitter on the underlay.
Verify the Business Policy flows are matching.
Verify if routes to Gateways are present in the Overlay Flow Control (OFC).

Answer(s): A

Reveal Solution Next Question

QUESTION: 8

Scenario 1:
A network administrator is tasked with enabling SD-WAN at three branch locations. A topology has been provided for reference. For each site, the administrator is having issues bringing edges online,

as another administrator has gone ahead and created a configuration ahead of time. The organization has several branch sites. One is an Internet-only site and two are Hybrid locations with both internet and MPLS. The last location is MPLS only. There are hub data center locations in this environment as well. Please refer to the topology.

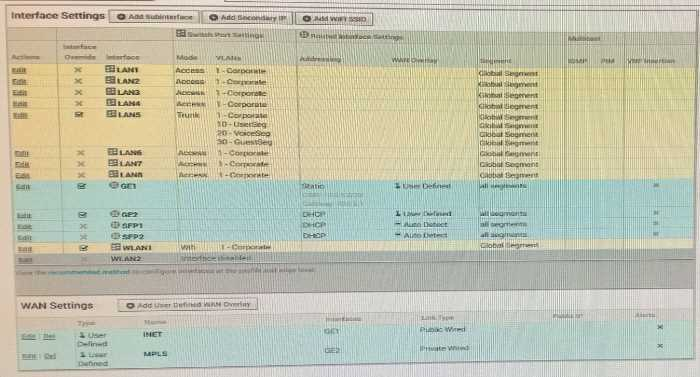

Exhibit.

The network administrator determines the issue preventing the Dallas Branch from coming online.
Refer to the Exhibit(s).
What must the administrator do for the Edge to communicate with the Orchestrator and other branches?

Reverse the WAN Overlay configurations
Update the Orchestrator to the latest version as it enables "Auto WAN Swapping"
Delete the User Defined WAN Overlays as the Orchestrator will discover these automatically on MPLS and Internet
Create a User-defined WAN Overlay to bond both interfaces

Answer(s): A

Reveal Solution Next Question

QUESTION: 9

Scenario 2:
After completing the branch activation activities for all required branches, the network administrator attempts to test connectivity between the various branches and between the hubs and branches. The administrator notices a lack of connectivity despite being certain that configurations have been complete. The administrator also observed that several users are reporting intermittent connectivity to some of the applications they are accessing. Other users are reporting no access to these applications. Other users at some of the branches claim they cannot get to certain public resources. The administrator wants to ensure that all sites can talk to each other and all resources are accessible.
Exhibit.
A network administrator has received an email from the applications development team requesting connectivity to their AWS VPC.
The administrator has configured the tunnel via the VMware SD-WAN Gateway. The tunnel status icon has not turned green.
Where are two places the administrator must check? (Choose two.)

Determine if the DH parameter on the Edge has been configured.
Determine if the PSK is mismatched between the AWS side and the VeloCloud Edge.
Determine if the NVS has been enabled and assigned to a profile.
Determine if the PSK is mismatched between the AWS side and the VeloCloud Gateway.

Answer(s): B,D

Reveal Solution Next Question

QUESTION: 10

Scenario 2:
After completing the branch activation activities for all required branches, the network administrator attempts to test connectivity between the various branches and between the hubs and branches. The administrator notices a lack of connectivity despite being certain that configurations have been complete. The administrator also observed that several users are reporting intermittent connectivity to some of the applications they are accessing. Other users are reporting no access to these applications. Other users at some of the branches claim they cannot gel to certain public resources. The administrator wants to ensure that all sites can talk to each other and all resources are accessible.
Exhibit.
A business policy is created and saved.
How can the network administrator verify the business policy is working?

Select a VCE > Test & Troubleshoot > Remote diagnostics and select List Active flows and check the flows to see what Business policy is applied under the Business policy column.
Executing Route table dump under VCE > Test St Troubleshoot > Remote Diagnostics and select Route Table dump and look for business policy applied in the Route table Dump stats.
Check under Monitor > Applications tab and check the listing of applications at the bottom of the screen and the category of the type of traffic there.
Check under the Monitor > Business Priority tab for Business policy statistics.

Answer(s): B

Reveal Solution Next Question
