QUESTION: 16

If a house key, a wooden spoon, a plastic hanger, and a wool jacket are all the same temperature, which one feels the coldest?

key
spoon
hanger
jacket

Answer(s): B

Explanation:

The key will feel coldest because metal is a better conductor than the other materials.

Reveal Solution Next Question

QUESTION: 17

In the figure above, assume the valves are all closed.
To fill the tank, but to prevent it from filling entirely, which valves should be open?

1 and 2 only
1, 2, and 3 only
1, 2, and 4 only
1, 2, 3, and 5 only

Answer(s): D

Explanation:

Opening Valves 1 and 2 allows water to enter the tank.
Opening Valves 3 and 5 prevents water from filling the tank entirely. Opening Valve 4 allows water to leave the tank.

Reveal Solution Next Question

QUESTION: 18

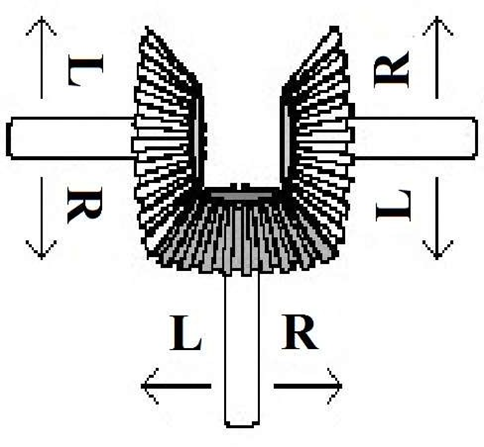

If Gear A is turned to the left _____________.

Gear B turns to the right and Gear C turns to the left.
Gear B turns to the left and Gear C turns to the left.
Gear B turns to the right and Gear C turns to the right.
Gear B turns to the left and Gear C turns to the right.

Answer(s): A

Explanation:

Gears with their teeth together in mesh turn in opposite directions.
Gear A turns Gear B in the opposite direction (right), and Gear B turns Gear C in the opposite direction (left).

Reveal Solution Next Question

QUESTION: 19

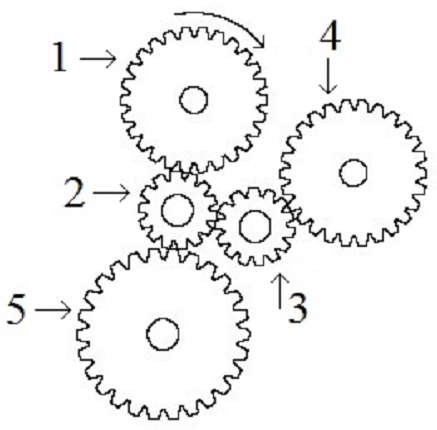

If Gear 1 moves in a clockwise direction, which other gears also turn clockwise?

3 and 5
3, 4, and 5
2 and 5
3 and 4

Answer(s): A

Explanation:

Gears with their teeth together in mesh turn in opposite directions.
Gear 1 turns clockwise. Gear 2, in mesh with Gear 1, turns counterclockwise. Gear 3, in mesh with Gear 2, turns clockwise.
Gear 4, in mesh with Gear 3, turns counterclockwise. Gear 5, in mesh with Gear 2, turns clockwise.

Reveal Solution Next Question

QUESTION: 20

The pressure gauge in the figure above shows a reading of __________.

15.0
19.5
21.0
23.0

Answer(s): C

Explanation:

The gauge shows a reading of 21.

Reveal Solution Next Question
