Free Desktop-Specialist Exam Questions and Answers (Page: 8)

QUESTION: 36

What does the box in a box plot represent?

Maximum value of the data
Minimum value of the data
The interquartile range
The median of the middle half of the data points

Answer(s): C

Explanation:

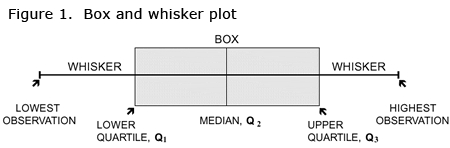

In a box and whisker plot:
1) The ends of the box are the upper and lower quartiles, so the box spans the interquartile range
2) The median is marked by a vertical line inside the box
3) The whiskers are the two lines outside the box that extend to the highest and lowest observations.

Reveal Solution Next Question

QUESTION: 37

Which of the following are interactive elements that can be added to a dashboard for users?

URL Action
Filter Action
Highlight Action
Edit Tooltip Action

Answer(s): A,B,C

Explanation:

We can perform filter, URL and highlight actions out of the above given choices on a dashboard.

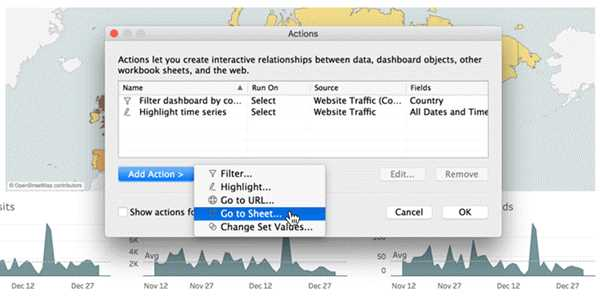

Please refer to the image below:

Reference:

https://help.tableau.com/current/pro/desktop/en-us/actions_dashboards.htm

Reveal Solution Next Question

QUESTION: 38

What does it imply if a field has a blue background?

It is continuous
It is discrete
It is a dimension
It is a measure

Answer(s): B

Explanation:

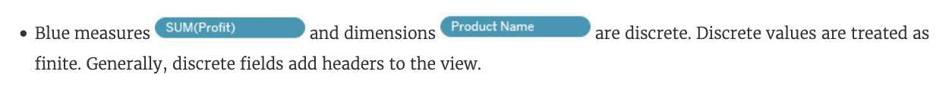

When you connect to a new data source, Tableau assigns each field in the data source as dimension or measure in the Data pane, depending on the type of data the field contains. You use these fields to build views of your data.

Reference:

https://help.tableau.com/current/pro/desktop/en-us/datafields_typesandroles.htm

Reveal Solution Next Question

QUESTION: 39

For creating variable sized bins we use __________________

Calculated Fields
Table Calculations
Sets
Groups

Answer(s): A

Explanation:

One way to view a measure in Tableau Desktop is to split it into bins. You can think of bins as buckets based on a range of values. For example, say you have a measure that represents age. Instead of aggregating the measure to calculate the average age, you can bin the measure to define age groups:
05, 610, 1115, and so on. Then you can count the number of people in each age group.

Create a calculated field for variable bin size
Step 1
Select Analysis > Create Calculated Field.
Step 2

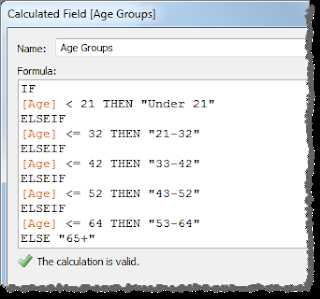

In the Calculated Field dialog box, complete the following steps:

Reference:

https://riti-ritesh.blogspot.com/2016/07/creating-variable-sized-bins_8.html

Reveal Solution Next Question

QUESTION: 40

True or False: A reference line cannot be added from the Analytics Pane

True
False

Answer(s): B

Explanation:

You can add a reference line to any continuous axis in the view.
To add a reference line:

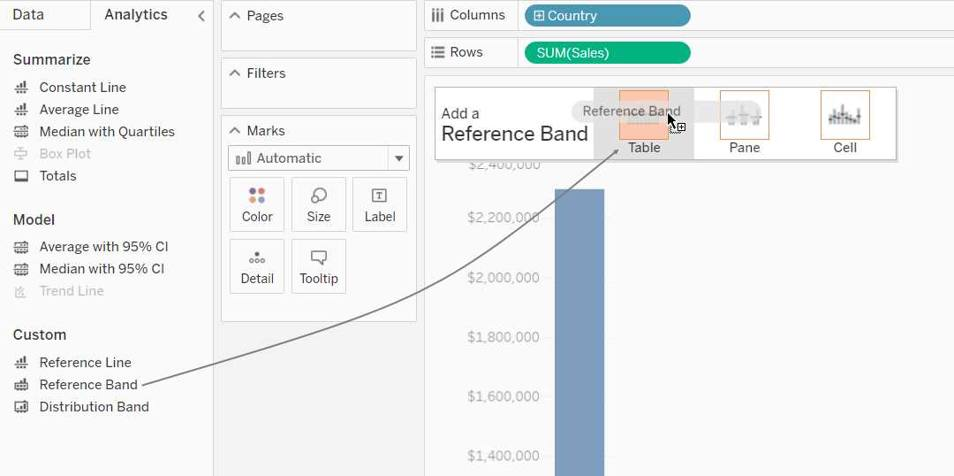

Drag Reference Line from the Analytics pane into the view. Tableau shows the possible destinations. The range of choices varies depending on the type of item and the current view. In a simple case, the drop target area offers three options:

Reference:

https://help.tableau.com/current/pro/desktop/en-us/reference_lines.htm

Reveal Solution Next Question
