OMG-OCUP2-ADV300 Exam Questions and Answers

QUESTION: 11

Choose the correct answer :

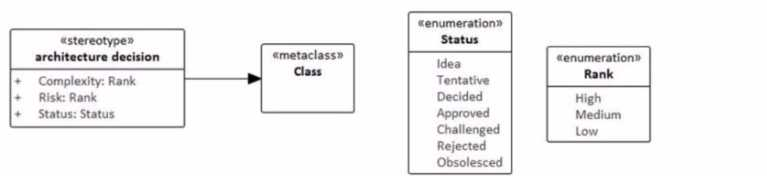

Given the following fragment from a profile definition:

Which statement is correct regarding the application of the profile?

A class stereotyped as an «architecture decision» must contain attributes named Complexity. Risk, and Status with the designated Enumeration types
A class stereotyped as an «architecture decisions will have Stereotype Properties named Complexity. Risk, and Status with the Enumeration types designated in the profile.
A class stereotyped as an «architecture decision» must contain attributes named Complexity. Risk, and Status and they may be any user-defined type.
A class stereotyped as an «architecture decisions must contain exactly three attributes with user- defined names, two of which are of type Rank, and one of type Status.

Answer(s): B

Explanation:

In UML, a stereotype is a mechanism that extends the vocabulary of the UML in order to create new model elements. The given profile fragment defines a stereotype «architecture decision» that extends the metaclass Class. This stereotype includes three properties: Complexity, Risk, and Status, each typed by specific enumerations: Rank and Status.
When a stereotype is applied to a UML element, it does not create physical attributes on the element; instead, it enables the element to carry additional information as specified by the stereotype -- in this case, as Stereotype Properties. These properties are effectively tagged values that are associated with the stereotyped element. Hence, when a class is stereotyped as an «architecture decision», it will have the ability to hold values for Complexity, Risk, and Status according to the types defined by the enumerations in the profile. This is consistent with the rules defined in the UML 2.x Superstructure Specification for profiles and stereotypes.

Reveal Solution Next Question

QUESTION: 12

Choose the correct answer :
Which capability Is provided by the Profile mechanism?

storing user-specific configurations of model settings
creating new metamodel elements for specific purposes
adapting existing metamodel elements for specific purposes
configuring model libraries and a set of keywords to be used for a model

Answer(s): C

Explanation:

The Profile mechanism in UML provides the capability to adapt existing metamodel elements for specific purposes. Profiles allow modelers to extend the standard UML metamodel with additional semantics by defining stereotypes, tagged values, and constraints that are specific to a particular domain, platform, or methodology. This means that profiles tailor the existing UML metamodel elements to create domain-specific models without changing the underlying metamodel itself. This adaptation mechanism is described in the UML 2.x Superstructure and Infrastructure Specifications, which detail how profiles can be used to customize the UML for particular domains or purposes.

Reveal Solution Next Question

QUESTION: 13

Choose the correct answer :
Let E be a UML 2.5 NamedElement with a name property of '_name" and with a nameExpression property of "_expresslon".
Which one presentation or set of presentations of the name of E in a tool conforms to the OMG specification?

_name
_expression
S_expression$ OR _name
S_expression$
_expression
OR
_name:_expressk>n
UML 2.5 no longer includes a nameExpression properly within NamedElements.

Answer(s): C

Explanation:

In UML 2.5, a NamedElement can have a name attribute, which is a string representing the element's name, and a nameExpression attribute, which is a ValueSpecification used to specify the element's name in a more dynamic way. The presentation of the name of a NamedElement in a tool that conforms to the OMG specification could either be the literal name (as specified in the name attribute) or the evaluated expression from the nameExpression property. Therefore, a tool may choose to present either the simple name or the evaluated expression or allow toggling between the two. The specification does not mandate a single fixed presentation, allowing for flexibility in how tools display the name. This conforms to the OMG's UML 2.5 specification, which describes the properties of NamedElement and their presentations within tools.

Reveal Solution Next Question

QUESTION: 14

Choose the correct answer :
In a model of a commercial transaction, actors might exchange euros, pesos, and dollars Which figure illustrates compliant use of UML information items for these currency exchanges?

Figure 1
Figure 2
Figure 3
Figure 4

Answer(s): B

Explanation:

In UML, an InformationItem represents an abstraction of all those elements in a UML model that have an information-bearing feature. It is depicted as a classifier with the keyword «informationItem». An InformationItem does not have direct instances and serves as a mechanism to handle unspecified, untyped information in a model. In the context of a commercial transaction model, currencies such as euros, pesos, and dollars can be abstractly represented as InformationItems to signify that they are used as a form of data exchange but without specifying the concrete structure or data type. Figure 2 correctly uses InformationItem notation, with the «informationItem» keyword and the directed association pointing from the Currency InformationItem to the Euro, Peso, and Dollar, which are likely representations or manifestations of the Currency. This complies with the UML specification for representing abstract entities in models that are involved in the exchange or flow of information.

Reveal Solution Next Question

QUESTION: 15

Choose the correct answer :
Consider the following diagram fragment:

Which statement is correct about the diagram fragment?

The diagram fragment is a valid UML diagram.
To use the template List. Company must be a bound element to List.
List cannot be used by Company unless Company is also a template.
List cannot be used as a data type, only a bound element to List can.

Answer(s): D

Explanation:

The provided diagram fragment seems to indicate a situation involving a template. In UML, a template is a parameterizable element, and a bound element is a specific manifestation of that template wherein the parameters have been replaced with actual values or types. If 'List' is a template class, it cannot be directly used as a type. Instead, one must use a bound element of the List, meaning the template parameters of List must be bound to actual types before it can be used.

For instance, if List is a template expecting a type T, then a concrete class might be List<Customer> or List<Order>, where Customer or Order are actual types replacing the template parameter T. This use of templates and bound elements is according to the UML specification, which details how templates are defined and instantiated within UML models.

Reveal Solution Next Question
