OMG-OCSMP-MBI300 Exam Questions and Answers

QUESTION: 9

Choose the correct answer

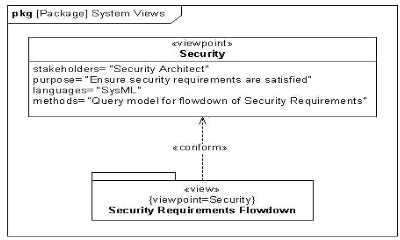

Given the following diagram:

Which statement is true?

The Security viewpoint conforms to the requirements specified by the Security view
The Security view is intended to address the purpose specified by the Security viewpoint
The Security view imports the Security viewpoint to ensure the security requirements are satisfied
The Security viewpoint imports the model elements associated with flowing down the security requirements

Answer(s): B

Reveal Solution Next Question

QUESTION: 10

Choose the correct answer.

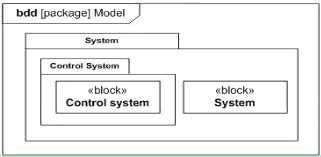

Given the following diagram:

Which diagram is correct?

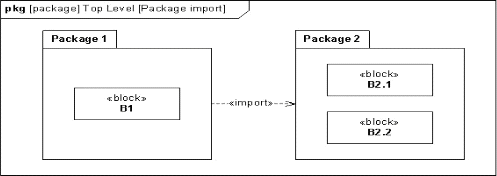

A)

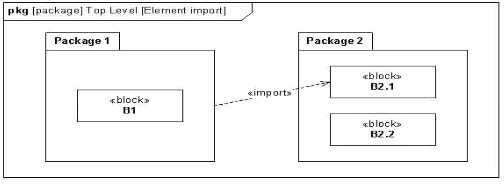

B)

C)

D)

Option A
Option B
Option C
Option D

Answer(s): C

Reveal Solution Next Question

QUESTION: 11

Choose the correct answer
How would a modeler refine a use case textual narrative?

provide a detailed definition of the use case using a behavioral diagram
specify all of the triggers preconditions, and post conditions for the use case
specify all extension points for extend use cases and specify all secondary actors
provide a complete textual description of the main flow and alternative/exceptional flows for the use case

Answer(s): A

Reveal Solution Next Question

QUESTION: 12

Choose the correct answer.
Given the following diagram fragment:

What does the multiplicity at the actor end mean?

At most two Initiator actor instances can perform the use case
Two Initiator actor instances are required to trigger the use case
Two Initiator actor instances are required to participate in the use case.
Multiplicities carry no meaning on use case diagrams

Answer(s): C

Reveal Solution Next Question

QUESTION: 13

Choose the correct answer
How ate use cases and requirements used for requirements analysis in SysML?

in a SysML model, either use cases or requirements are modeled, but never both
Use cases are a relic from UML and are. strictly speaking, useless in a SysML model
Use cases are good for capturing functional requirements. For nonfunctional requirements, the requirement element is needed
Use cases are the basis for all requirements in a model. Requirements refine the use cases by adding additional information through then properties.

Answer(s): C

Reveal Solution Next Question

QUESTION: 14

Choose the correct answer
How can the composition (black diamond) relationship be used to relate Requirements?

Composition allows requirements to inherit properties and requirements relationships
Composition allows role names to be assigned to sub-requirements thus providing a contextual reference
Composition allows a particularly useful requirement to be reused by multiple higher level requirements or specifications
Composition allows a requirement to be decomposed into sub-requirements as long as they don't add to or change the meaning of the original requirement.
Requirements cannot use composition. They are not classifiers

Answer(s): B

Reveal Solution Next Question

QUESTION: 15

Choose the correct answer
How is a testCase used to validate a requirement?

The testCase model element can be used in SystvIL but it only applies to software
Validation of a requirement can be indicated using a satisfiedBy relationship to a testCase
Only the verdict model element (which can be a property of a testCase) can have a verifies relationship to a requirement.
A requirement can have a vehfiedBy relationship to a testCase even if the test has not yet been conducted or even fully specified
testCase is part of the UML Testing Profile and cannot be used with SysML.

Answer(s): B

Reveal Solution Next Question

QUESTION: 16

Choose the correct answer
Which SysML construct is used in an activity diagram to associate an actor of a use case with the actions that actor performs?

an activity partition enclosing the actions the actor performs
an action allocation of the actor to the actions that actor performs
an association Between the actor and the actions that actor performs
an object node to represent the actor and object flows tying that actor to the actions it performs

Answer(s): D

Reveal Solution Next Question
