Microsoft AZ-305 Exam (page: 11)
Microsoft Designing Azure Infrastructure Solutions
Updated on: 01-Aug-2025

Viewing Page 11 of 59
AZ-305 PDF 317 Questions

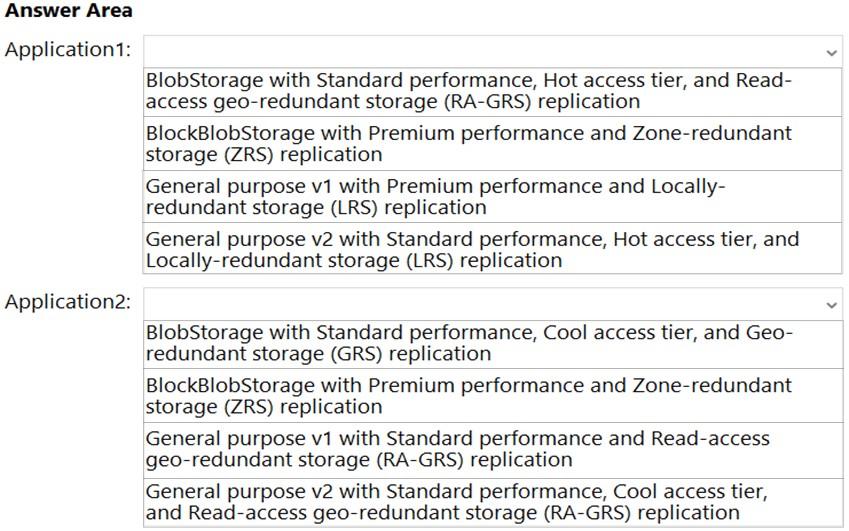

HOTSPOT (Drag and Drop is not supported)
You need to recommend an Azure Storage account configuration for two applications named Application1 and Application2. The configuration must meet the following requirements:
-Storage for Application1 must provide the highest possible transaction rates and the lowest possible latency.
-Storage for Application2 must provide the lowest possible storage costs per GB.
-Storage for both applications must be available in an event of datacenter failure.
-Storage for both applications must be optimized for uploads and downloads.
What should you recommend? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

  1. See Explanation section for answer.

Answer(s): A

Explanation:

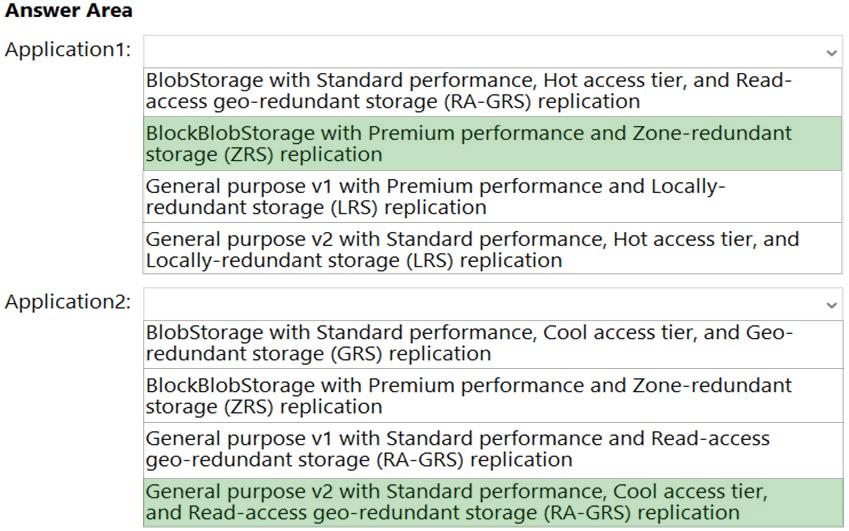

Box 1: BlobStorage with Premium Performance,ג€¦
Application1 requires high transaction rates and the lowest possible latency. We need to use Premium, not Standard.
Box 2: General purpose v2 with Standard Performance,..
General Purpose v2 provides access to the latest Azure storage features, including Cool and Archive storage, with pricing optimized for the lowest GB storage prices. These accounts provide access to Block Blobs, Page Blobs, Files, and Queues. Recommended for most scenarios using Azure Storage.


Reference:

https://docs.microsoft.com/en-us/azure/storage/common/storage-account-upgrade



HOTSPOT (Drag and Drop is not supported)
Your company develops a web service that is deployed to an Azure virtual machine named VM1. The web service allows an API to access real-time data from
VM1.

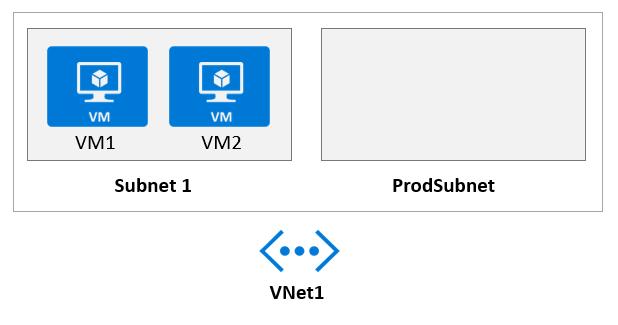

The current virtual machine deployment is shown in the Deployment exhibit.
The chief technology officer (CTO) sends you the following email message: "Our developers have deployed the web service to a virtual machine named VM1.
Testing has shown that the API is accessible from VM1 and VM2. Our partners must be able to connect to the API over the Internet. Partners will use this data in applications that they develop."

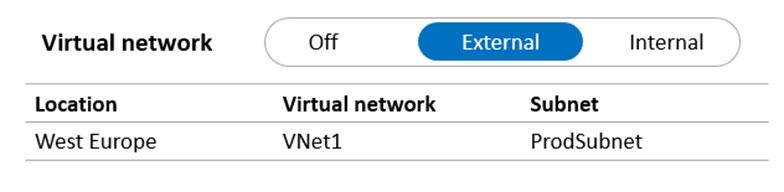

You deploy an Azure API Management (APIM) service. The relevant API Management configuration is shown in the API exhibit.

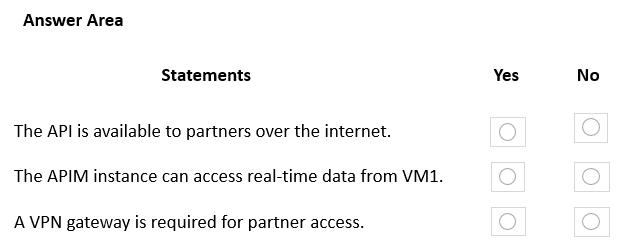

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:


  1. See Explanation section for answer.

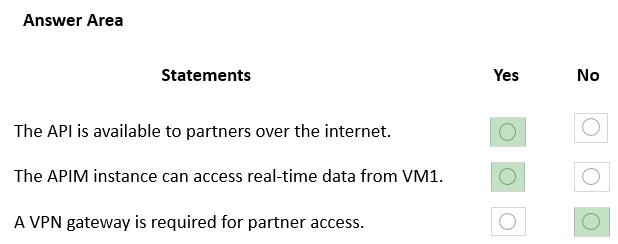

Answer(s): A

Explanation:


Reference:

https://docs.microsoft.com/en-us/azure/api-management/api-management-using-with-vnet



You are designing a SQL database solution. The solution will include 20 databases that will be 20 GB each and have varying usage patterns.
You need to recommend a database platform to host the databases. The solution must meet the following requirements:
-The solution must meet a Service Level Agreement (SLA) of 99.99% uptime.
-The compute resources allocated to the databases must scale dynamically.
-The solution must have reserved capacity.
Compute charges must be minimized.
What should you include in the recommendation?

  1. an elastic pool that contains 20 Azure SQL databases
  2. 20 databases on a Microsoft SQL server that runs on an Azure virtual machine in an availability set
  3. 20 databases on a Microsoft SQL server that runs on an Azure virtual machine
  4. 20 instances of Azure SQL Database serverless

Answer(s): A

Explanation:

The compute and storage redundancy is built in for business critical databases and elastic pools, with a SLA of 99.99%.
Reserved capacity provides you with the flexibility to temporarily move your hot databases in and out of elastic pools (within the same region and performance tier) as part of your normal operations without losing the reserved capacity benefit.


Reference:

https://azure.microsoft.com/en-us/blog/understanding-and-leveraging-azure-sql-database-sla/

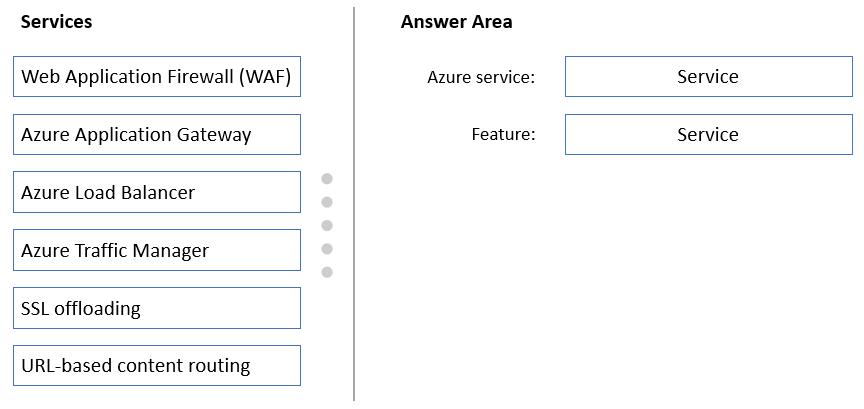

DRAG DROP (Drag and Drop is not supported)
Your company has an existing web app that runs on Azure virtual machines.
You need to ensure that the app is protected from SQL injection attempts and uses a layer-7 load balancer. The solution must minimize disruptions to the code of the app.
What should you recommend? To answer, drag the appropriate services to the correct targets. Each service may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Select and Place:

  1. See Explanation section for answer.

Answer(s): A

Explanation:

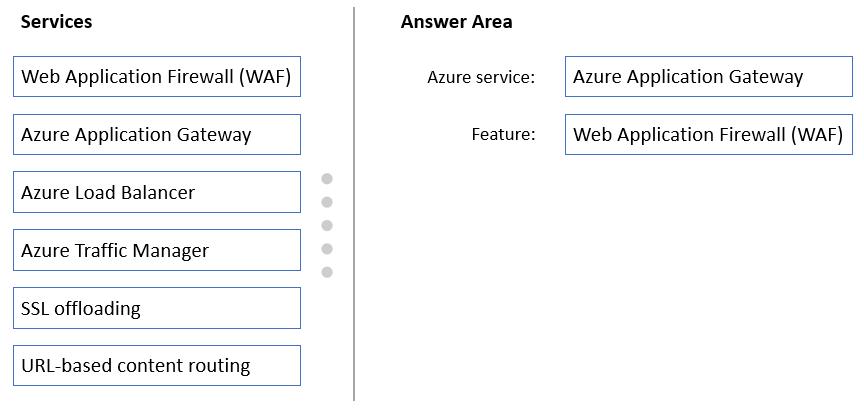

Box 1: Azure Application Gateway
The Azure Application Gateway Web Application Firewall (WAF) provides protection for web applications. These protections are provided by the Open Web
Application Security Project (OWASP) Core Rule Set (CRS).
Box 2: Web Application Firewall (WAF)


Reference:

https://docs.microsoft.com/en-us/azure/web-application-firewall/ag/application-gateway-customize-waf-rules-portal



Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
Your company deploys several virtual machines on-premises and to Azure. ExpressRoute is deployed and configured for on-premises to Azure connectivity.
Several virtual machines exhibit network connectivity issues.
You need to analyze the network traffic to identify whether packets are being allowed or denied to the virtual machines.
Solution: Use Azure Advisor to analyze the network traffic.
Does this meet the goal?

  1. Yes
  2. No

Answer(s): B

Explanation:

Instead use Azure Network Watcher IP Flow Verify, which allows you to detect traffic filtering issues at a VM level.
Note: IP flow verify checks if a packet is allowed or denied to or from a virtual machine. The information consists of direction, protocol, local IP, remote IP, local port, and remote port. If the packet is denied by a security group, the name of the rule that denied the packet is returned. While any source or destination IP can be chosen, IP flow verify helps administrators quickly diagnose connectivity issues from or to the internet and from or to the on-premises environment.


Reference:

https://docs.microsoft.com/en-us/azure/network-watcher/network-watcher-ip-flow-verify-overview



Viewing Page 11 of 59
