QUESTION: 6

Refer to Exhibit.

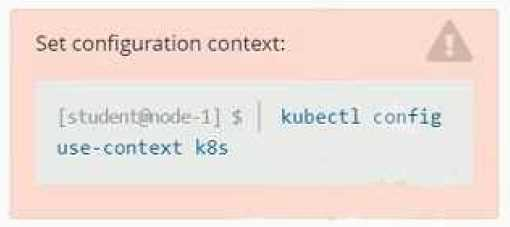

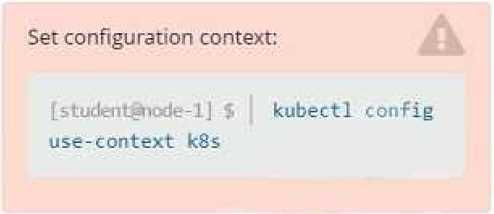

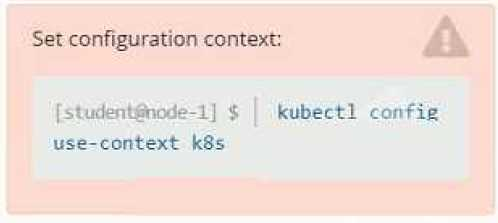

Set Configuration Context:
[student@node-1] $ | kubectl
Config use-context k8s
Context
A pod is running on the cluster but it is not responding.

Task:
The desired behavior is to have Kubemetes restart the pod when an endpoint returns an HTTP 500 on the /healthz endpoint. The service, probe-pod, should never send traffic to the pod while it is failing.
Please complete the following:
-The application has an endpoint, /started, that will indicate if it can accept traffic by returning an HTTP 200. If the endpoint returns an HTTP 500, the application has not yet finished initialization.
-The application has another endpoint /healthz that will indicate if the application is still working as expected by returning an HTTP 200. If the endpoint returns an HTTP 500 the application is no longer responsive.
-Configure the probe-pod pod provided to use these endpoints
-The probes should use port 8080

See Explanation section for answer.

Answer(s): A

Explanation:

Solution:
To have Kubernetes automatically restart a pod when an endpoint returns an HTTP 500 on the /healthz endpoint, you will need to configure liveness and readiness probes on the pod. First, you will need to create a livenessProbe and a readinessProbe in the pod's definition yaml file. The livenessProbe will check the /healthz endpoint, and if it returns an HTTP 500, the pod will be restarted. The readinessProbe will check the /started endpoint, and if it returns an HTTP 500, the pod will not receive traffic.
Here's an example of how you can configure the liveness and readiness probes in the pod definition yaml file:
apiVersion: v1
kind: Pod metadata:
name: probe-pod spec:
containers:
- name: probe-pod image: <image-name>
ports:
- containerPort: 8080
livenessProbe:
httpGet:
path: /healthz port: 8080
initialDelaySeconds: 15
periodSeconds: 10
failureThreshold: 3
readinessProbe:
httpGet:
path: /started port: 8080
initialDelaySeconds: 15
periodSeconds: 10
failureThreshold: 3
The httpGet specifies the endpoint to check and the port to use. The initialDelaySeconds is the amount of time the pod will wait before starting the probe. periodSeconds is the amount of time between each probe check, and the failureThreshold is the number of failed probes before the pod is considered unresponsive.
You can use kubectl to create the pod by running the following command:
kubectl apply -f <filename>.yaml
Once the pod is created, Kubernetes will start monitoring it using the configured liveness and readiness probes. If the /healthz endpoint returns an HTTP 500, the pod will be restarted. If the /started endpoint returns an HTTP 500, the pod will not receive traffic. Please note that if the failure threshold is set to 3, it means that if the probe fails 3 times consecutively it will be considered as a failure.
The above configuration assumes that the application is running on port 8080 and the endpoints are available on the same port.

Reveal Solution Next Question

QUESTION: 7

Refer to Exhibit.

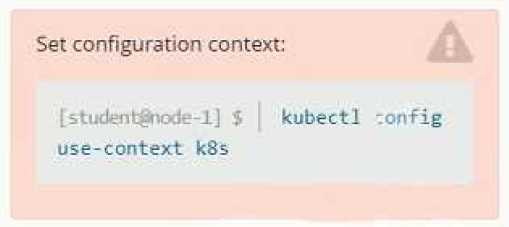

Set Configuration Context:
[student@node-1] $ | kubectl
Config use-context k8s
Context
You sometimes need to observe a pod's logs, and write those logs to a file for further analysis.

Task:
Please complete the following;

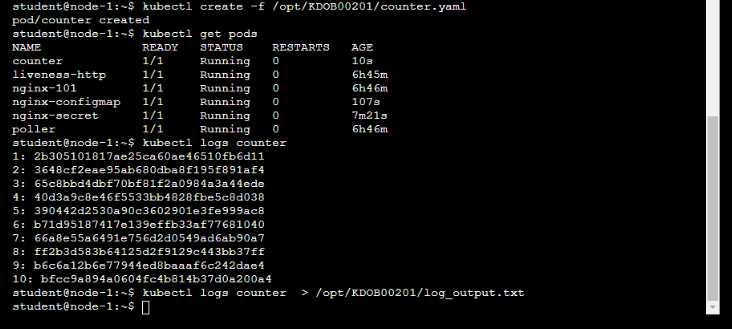

-Deploy the counter pod to the cluster using the provided YAMLspec file at /opt/KDOB00201/counter.yaml
-Retrieve all currently available application logs from the running pod and store them in the file /opt/KDOB0020l/log_Output.txt, which has already been created

See Explanation section for answer.

Answer(s): A

Explanation:

Solution:
To deploy the counter pod to the cluster using the provided YAML spec file, you can use the kubectl apply command. The apply command creates and updates resources in a cluster.
kubectl apply -f /opt/KDOB00201/counter.yaml
This command will create the pod in the cluster. You can use the kubectl get pods command to check the status of the pod and ensure that it is running.
kubectl get pods

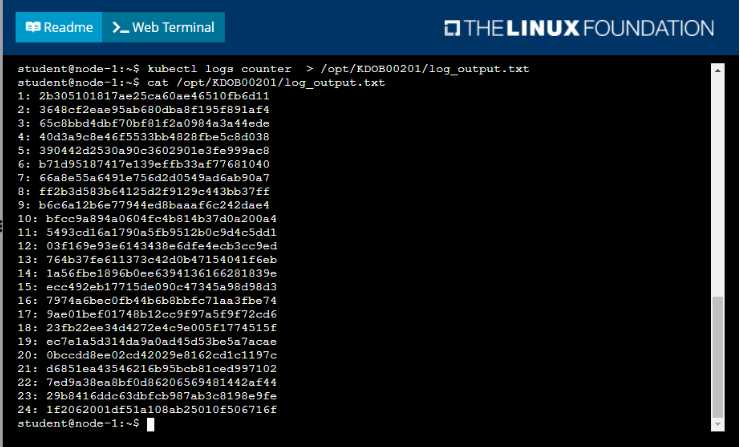

To retrieve all currently available application logs from the running pod and store them in the file /opt/KDOB0020l/log_Output.txt, you can use the kubectl logs command. The logs command retrieves logs from a container in a pod.
kubectl logs -f <pod-name> > /opt/KDOB0020l/log_Output.txt Replace <pod-name> with the name of the pod.
You can also use -f option to stream the logs.
kubectl logs -f <pod-name> > /opt/KDOB0020l/log_Output.txt & This command will retrieve the logs from the pod and write them to the /opt/KDOB0020l/log_Output.txt file.
Please note that the above command will retrieve all logs from the pod, including previous logs. If you want to retrieve only the new logs that are generated after running the command, you can add the --since flag to the kubectl logs command and specify a duration, for example --since=24h for logs generated in the last 24 hours.
Also, please note that, if the pod has multiple containers, you need to specify the container name using -c option.
kubectl logs -f <pod-name> -c <container-name> > /opt/KDOB0020l/log_Output.txt The above command will redirect the logs of the specified container to the file.

Reveal Solution Next Question

QUESTION: 8

Refer to Exhibit.

Context
It is always useful to look at the resources your applications are consuming in a cluster.
Task:

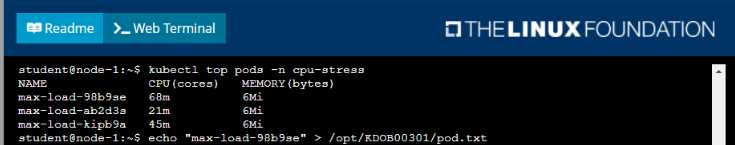

-From the pods running in namespace cpu-stress , write the name only of the pod that is consuming the most CPU to file /opt/KDOBG030l/pod.txt, which has already been created.

See Explanation section for answer.

Answer(s): A

Explanation:

Solution:

Reveal Solution Next Question

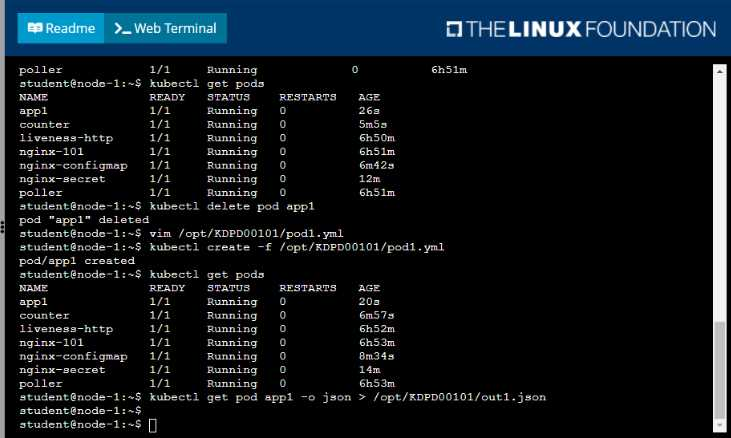

QUESTION: 9

Context
Anytime a team needs to run a container on Kubernetes they will need to define a pod within which to run the container.
Task:
Please complete the following:
-Create a YAML formatted pod manifest

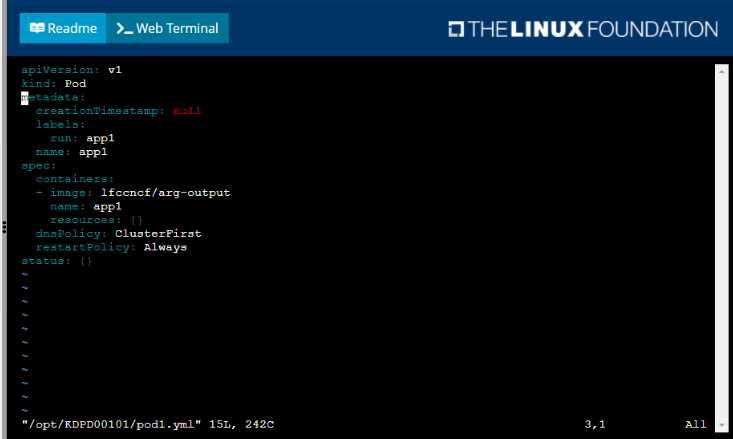

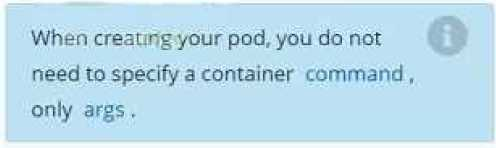

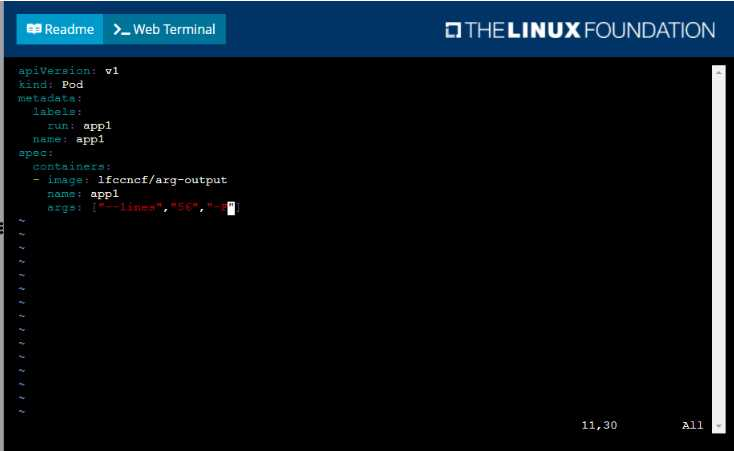

/opt/KDPD00101/podl.yml to create a pod named app1 that runs a container named app1cont using image Ifccncf/arg-output with these command line arguments: -lines 56 -F

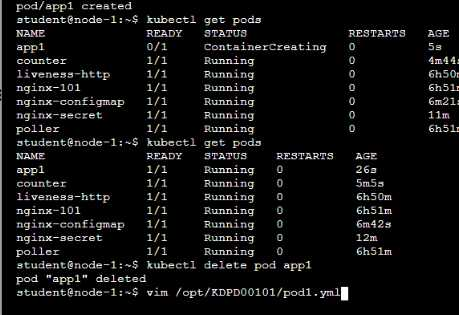

-Create the pod with the kubect1 command using the YAML file created in the previous step

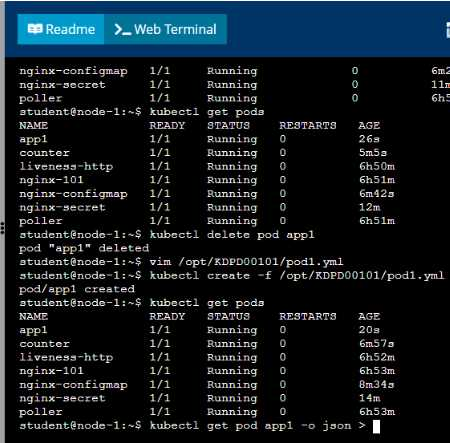

-When the pod is running display summary data about the pod in JSON format using the kubect1 command and redirect the output to a file named /opt/KDPD00101/out1.json

-All of the files you need to work with have been created, empty, for your convenience

See Explanation section for answer.

Answer(s): A

Explanation:

Solution:

Reveal Solution Next Question

QUESTION: 10

Refer to Exhibit.

Task:

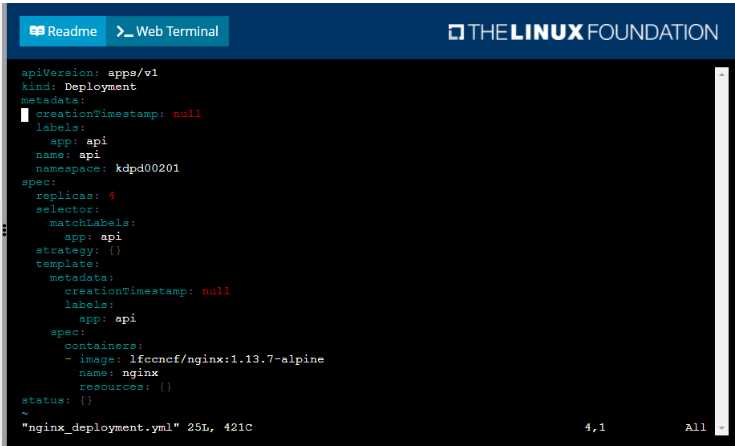

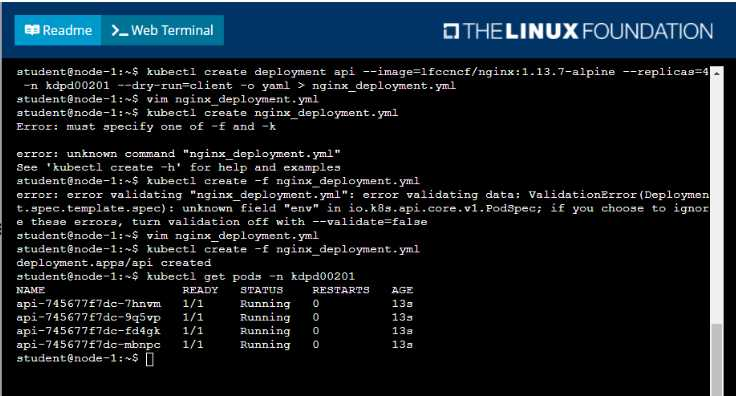

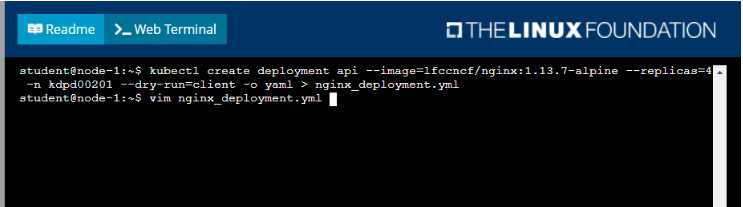

Create a new deployment for running.nginx with the following parameters;

-Run the deployment in the kdpd00201 namespace. The namespace has already been created
-Name the deployment frontend and configure with 4 replicas
-Configure the pod with a container image of lfccncf/nginx:1.13.7

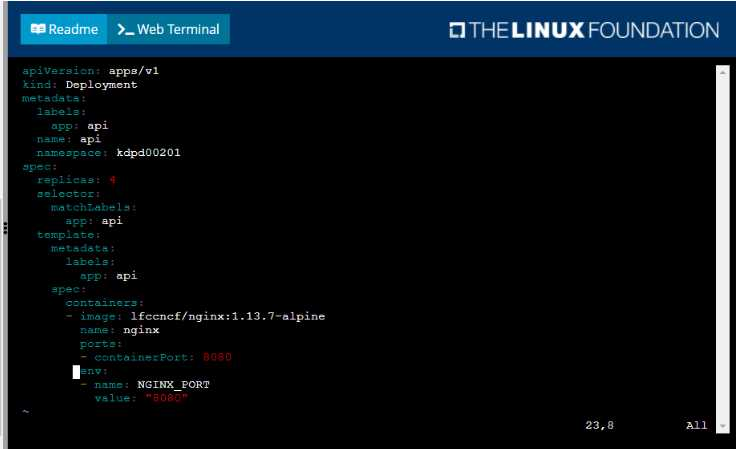

-Set an environment variable of NGINX__PORT=8080 and also expose that port for the container above
