Juniper JN0-663 Exam (page: 3)
Juniper Service Provider Routing and Switching, Professional (JNCIP-SP)
Updated on: 25-Dec-2025

Viewing Page 3 of 21

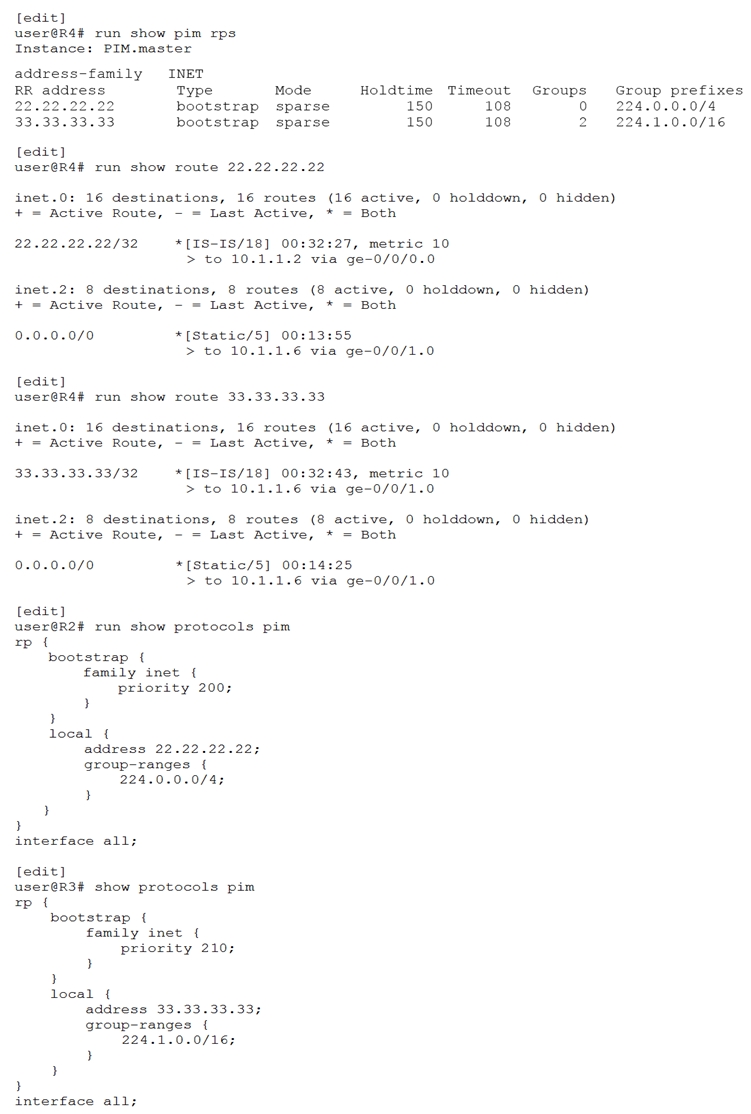

R4 is directly connected to both RPs (R2 and R3). R4 is currently sending all joins upstream to R3 but you want to load balance the joins between both RPs.


Referring to the exhibit, which configuration change will solve this issue?

  1. Configure the join-load-balance parameter under PIM on R4.
  2. Configure the default route in inet.2 on R4 from R3 as the next hop to both R3 and R2.
  3. Configure the group-range parameter to be the same on R2 and R3.
  4. Configure the bootstrap priority on R2 to be the same as R3.

Answer(s): A

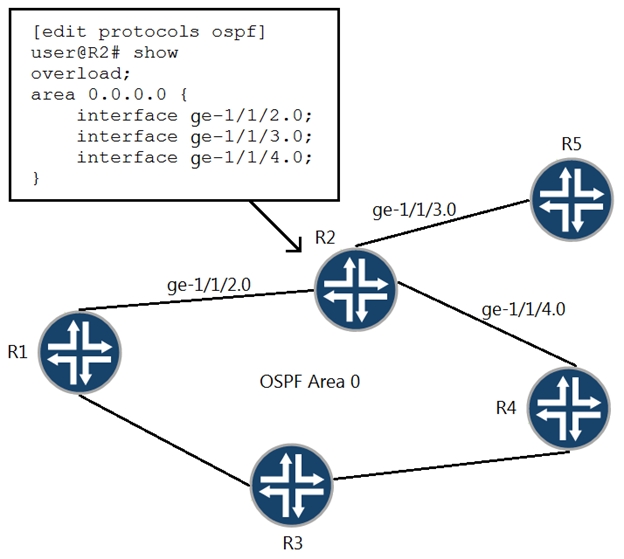

Referring to the exhibit, which two statements are correct? (Choose two.)

  1. R2 stops sending LSAs into the network.
  2. The OSPF interface metrics on R2 are all set to 65535.
  3. R1 will never forward transit traffic through R2.
  4. Transit traffic from R1 to R4 will traverse R3.

Answer(s): B,D

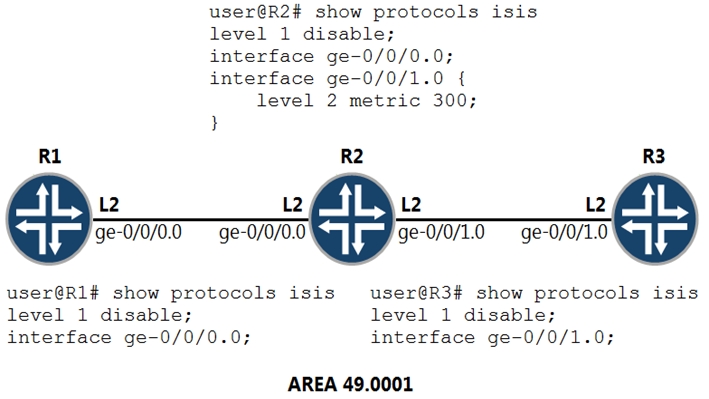

Referring to the exhibit, what will the IS-IS cost be for R1 to reach R3?

  1. 73
  2. 20
  3. 301
  4. 310

Answer(s): D

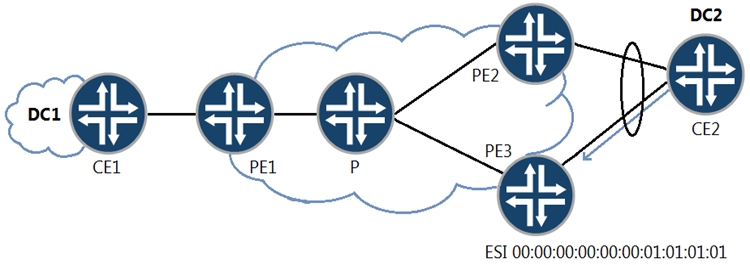

Referring to the exhibit, traffic sent from CE-A2 to PE3 does not loop back to CE-A2 through PE2. Winch two EVPN functions accomplish this task? (Choose two.)

  1. multicast ingress replication
  2. aliasing
  3. split horizon
  4. designated forwarder election

Answer(s): C,D



Which two types of LSAs have an area scope? (Choose two.)

  1. Type 2
  2. Type 5
  3. Type 11
  4. Type 7

Answer(s): A,C
