QUESTION: 9

When there are multiple redundant links in the IS-S network, multiple equal-cost routes may appear. Regarding equal-cost routes in an IS-IS network, which of the following descriptions is wrong?

When the number of equal-cost routes in the networking is greater than the number configured through commands, and the priorities of these routes are the same, the route with the higher System ID of the next hop device is preferred for load sharing.
If negative arbitration sharing is configured, the traffic will be evenly distributed to each link.
After the equal-cost routing priority is configured, when the IS-IS device forwards the traffic that reaches the destination network segment, it will not adopt the load sharing method, but will forward the traffic to the next-hop with the highest priority.
For each route in the equal-cost route, the priority can be specified, and the route with the higher priority will be preferred. The rest are used as backup routes.

Answer(s): C

Reveal Solution Next Question

QUESTION: 10

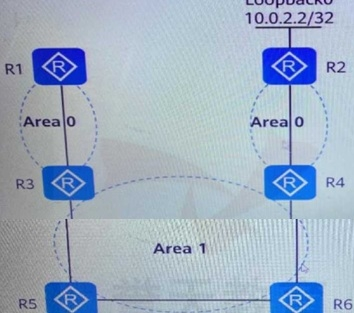

As shown in the figure, all routers run OSPF.

Which of the following statements is correct?

R2 generates Router LSA in both area 1 and area 0
R2 forwards the Router LSA generated by R3 to R1
R2 forwards the Router LSA generated by R1 to R3
R2 only generates Router LSA in area 0

Answer(s): A

Reveal Solution Next Question

QUESTION: 11

What is the value of OSPF and BFD linkage?

The hello sending interval of OSPF is at the second level, which is faster than BFD inductive link state
The sending interval of BFD packets can reach the millisecond level, which is slower than the OSPF
inductive link state
Through the BFD detected at the millisecond level, the OSPF status is associated to achieve the purpose of
OSPF quickly inductive link state
Any change in the BFD status will not affect the OSPF neighbor status

Answer(s): C

Reveal Solution Next Question

QUESTION: 12

According to this figure, which of the following is the correct description of the IPv6 routing information calculated by the R4 router through IS-IS?

R4 has 1 IS-IS default route
R4 has 2 equal-cost IS-IS default routes
R4 has 2 unequal IS-IS default routes
R4 has no IS-IS routing entry

Answer(s): B

Reveal Solution Next Question

The routing attributes of the three routing entries are shown in the figure. Assuming that the next hop of the three routing entries are all reachable, when the three routing entries arrive at the BP router in sequence, by default, BGP will finally select one route entry?

Route B
Route C
Route A

Answer(s): C

Reveal Solution Next Question

QUESTION: 14

As shown in the figure, Client1 and Client2 act as clients of RR1 and RR2 at the same time, RR1 and RR2 are in the same Cluster, and R has introduced 10 routes. Assume that the BCP configuration is correct.

The neighbor relationship has been established. How many routing entries are there in the BGP routing table of Client2 ultimately?

Answer(s): B

Reveal Solution Next Question

QUESTION: 15

Which of the following is not a hardware preparation item for cutover?

Test the operation of the board
Power-on test
Device version check
Cable connectivity test

Answer(s): C

Reveal Solution Next Question

QUESTION: 16

When troubleshooting dual-master faults in a VRRP backup group, which of the following statements is wrong?

There is no need to check whether the switch port that transmits the VRRP advertisement message is in the same VLAN
Need to check whether the VRRP group ID on the interface is the same
Need to check whether the interface IP address is in the same network segment
Need to check whether the virtual IP addresses of the VRRP group are the same

Answer(s): A

Reveal Solution Next Question
