Huawei HCIP-Datacom-Advanced Routing & Switching Technology V1.0 H12-831_V1.0 Dumps in PDF

Free Huawei H12-831_V1.0 Real Questions (page: 3)

H12-831_V1.0 PDF — 603 Questions

When troubleshooting the EBGP neighbor relationship, you found that two directly connected devices use Loopback ports to establish a connection, so execute display current-configuration configuration bgp to view the configuration of peer ebgp-max-hop hop-count.
Which of the following statements is correct?

  1. hop-count must be greater than 2
  2. hop-count must be greater than 15
  3. hop-count must be greater than 1
  4. hop-count must be greater than 255

Answer(s): C



When a fault occurs, the fault can be classified to reduce the scope of fault location.
Which of the following is not an interface configuration fault?

  1. The duplex modes of the interfaces on both ends are inconsistent
  2. IP address conflict
  3. Inconsistent interface authentication
  4. The receiving and emitting power of both ends is inconsistent

Answer(s): D



If you want to check files under Flash, which command should use?

  1. dir sdl:
  2. dir sd0:
  3. display patch-information
  4. dir flash:

Answer(s): D



As shown in the figure, MPLS LSP is configured in the network, and the goal is to establish an LDP session between SWA and SWB, then which of the following statement is correct?

  1. The configuration is correct
  2. No need to enable MPLS globally
  3. No need to enable MPLS on the port
  4. Two devices mpls lsr-id cannot be configured as the same

Answer(s): D

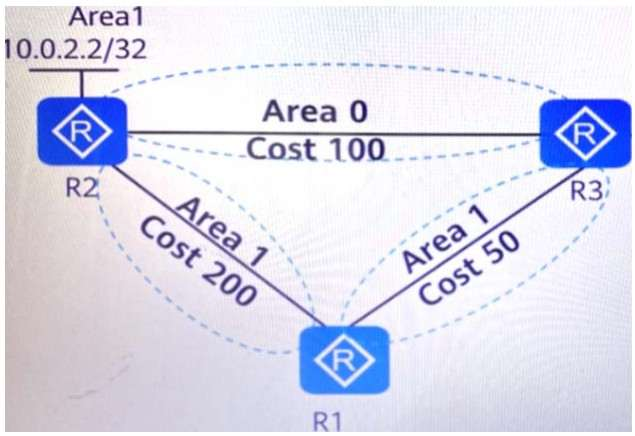

As shown in the figure, the cost value of the link that all interfaces of the router enable DSPF is identified in the figure.

The Loopback D interface of R2 is advertised in area 1. Then the cost value of R1 to 10.2/32 is:

  1. 200
  2. 150
  3. 50
  4. 100

Answer(s): A



As shown in the figure, all interfaces of the router enable OSPF. The ip address identified in the figure is the IP address of the device's Loopback 0 port. R1, R2, R3EJLoopbacD are advertised in area 1, and Loopbacfk D of R4 is advertised in area D, the Loopback D of R5 is advertised in area 2.
Which of the following addresses can ping each other?

  1. 10.0.3.3 and 10.0.5.5
  2. 10.0.4.4 and 10.0.2.2
  3. 10.0.2.2 and 10.0.3.3
  4. 10.0.2.2 and 10.0.5.5

Answer(s): C



According to this picture, we can judge:

  1. The system ID of R1 is ee8c.a0c2.bafl
  2. R1 has both leve1-1 and level-1-2 link state information
  3. R1 only has link state information for leve1-2
  4. In the leve1-2 network, there are a total of 8 routers

Answer(s): A

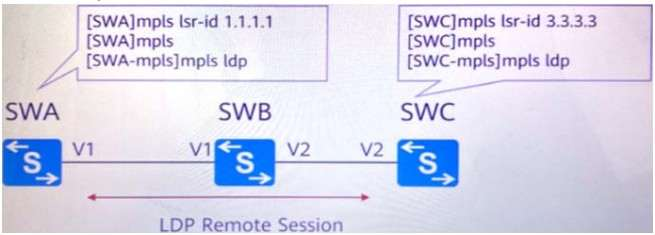

In the network shown in the figure below, if you want to implement a remote LDP session between SWA and SWC, which statement is correct?

  1. No need to specify the lsr-id of the correct equivalent
  2. The configuration in the figure can be achieved
  3. Need to create a remote peer, and then specify the lsr-id of the peer
  4. Need to be equipped with a straight connection port to establish a TCP connection

Answer(s): C
