QUESTION: 21

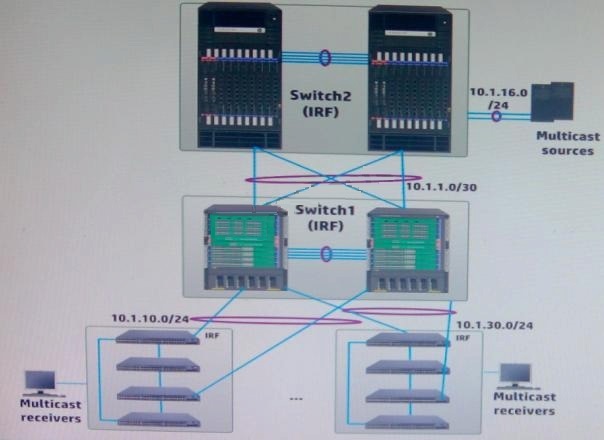

Refer to the exhibit.

All connections between switches are 10 Gbps. Switch is an Intelligent Resilient Framework (IRF) group with two member. Switch2 is an IRF group with two members. Switch1 and Switch2 route all traffic.
A network architect is designing a solution for a finance company. One of the primary applications is a multicast application that delivers stock information to IP video screens across the site. The network architect is seeking a multicast solution that meets these needs:
What is the best solution for this environment and these needs?

Protocol Independent Multicast (PIM) Dense Mode (DM).
Protocol Independent Multicast (PIM) Sparse Mode (SM) with switch 1 and switch 2 configured as candidate Rendezvous Points (C-RPs), and switch1 and Switch2 also configured as Bootstrap Router (BSRs).
Protocol Independent Multicast (PIM) Dense Mode (DM) with Switch1 and Switch2 set as the DM Master Router. Switch1 has a higher MR priority for an address associated with the multicast application.
Protocol independent Multicast (PIM) Sparse Mode (SM) with switch1 and Switch2 set as the static Rendezvous Points (RPs). Switch1 has a higher RP priority for an address associated with the multicast application.

Answer(s): D

Reveal Solution Next Question

QUESTION: 22

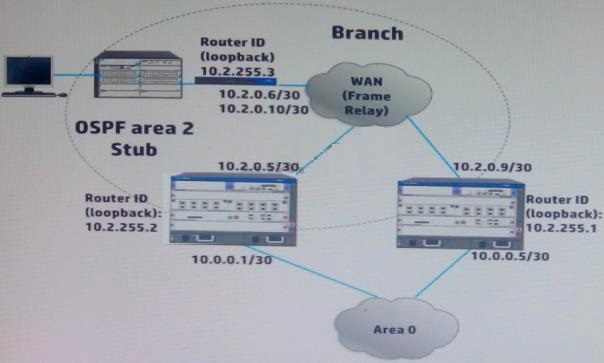

Refer to the exhibit.

The branch routers have E1 lines into the Frame Relay Service provider network. The exhibit shows just one branch, but the network actually has 30 branches. The HP 6600 Series routers, which are the area border routers (ABRs), have E2 lines into the Frame Relay network.
The routers in the exhibit Open Shortest Path First (OSPF). The enable OSPF on network follows:
The customer requires resilience at the WAN core. Which design change best supports that requirement?

Add additional links from the HP 6600 Series routers to the WAN
On each branch router, add a floating static route to one of the ABRs in case the OSPF solution fails
Add a Gigabit link between the HP 6600 Series router with a network in area 0 and area 2.
At each branch, add a redundant link between the switch and the router

Answer(s): C

Reveal Solution Next Question

QUESTION: 23

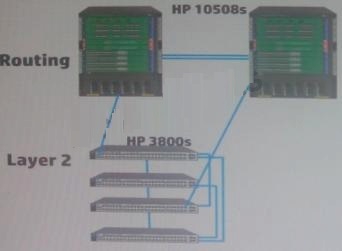

Refer to the exhibit.

A network architect has planned redundant links as shown in the exhibit. What should the network architect do to ensure that the redundant link design is truly resilient?

Implement the features such as link aggregation, backplane stacking, and intelligent Resilient Framework (IRF)
Add another link between the Layer 2 switches and the core so that up to the two links can fail
Implement a feature such as bidirectional forwarding detection (BFO) on each redundant link
Make sure that each HP 10508 switch is configured as a root in one Multiple Spanning Tree Protocol (MSTP) instance

Answer(s): C

Reveal Solution Next Question

QUESTION: 24

A network architect is compiling information about the total cost ownership (TCO) for a proposal.
Which factors play a role in TCO?

Cost of remediation due to a future security breach
Cost of regulatory fines associated with non-compliance
Cost of upgrading modules for the proposal
Cost of powering the solution

Answer(s): D

Reveal Solution Next Question

QUESTION: 25

Refer to the exhibit.

A network architect is designing the logical topology for a campus LAN networking solution. The customer requires support for 2400 edge ports, which is provided by 10 intelligent Resilient Framework (IRF) groups at the access layer. This customer does not have a wireless network nor anticipants adding one in the next two years. However, the customer does want to authenticate users with 802.1X and use the network RADIUS server to divide users from different groups into different VLANs. The customer has three user groups, each of which includes between 600 and 900 users.
Additionally, the customer understands that the RADIUS server will require several policies but wants to keep these policies as simple and easy to maintain as possible.
How can the network architect ensure that the solution meets the customer needs and also follows best practice?

Assign a /23 subnet to each VLAN so that the VLAN can accommodate the required number of users, even if users connect multiple devices
Plan a different VLAN ID and subnet address for each user group on each access layer IRF group.
Either core or access layer routing will work for this solution
Use access layer routing. Assign a different subnet to VLAN2 on one access layer IRF group then the VLAN2 on the another access layer group
Plan a solution for designing dissolvable agents to the endpoints so that they can complete 802.1X authentication seamlessly

Answer(s): B

Reveal Solution Next Question
