Fortinet NSE7_SDW-7.2 Exam (page: 4)
Fortinet NSE 7 - SD-WAN 7.2
Updated on: 12-Feb-2026

Viewing Page 4 of 21
NSE7_SDW-7.2 PDF 99 Questions

Which two settings can you configure to speed up routing convergence in BGP? (Choose two.)

  1. update-source
  2. set-route-tag
  3. holdtime-timer
  4. link-down-failover

Answer(s): C,D



Refer to the exhibits.

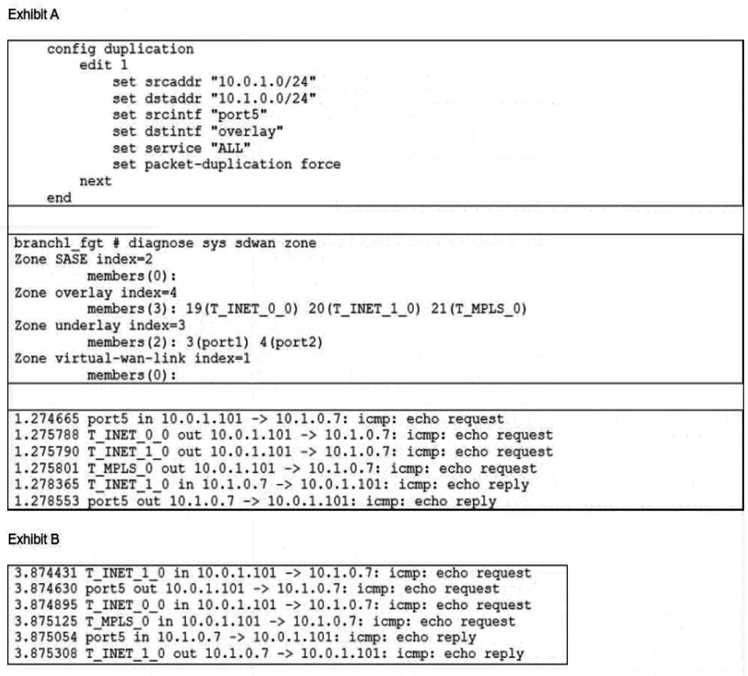

Exhibit A shows the packet duplication rule configuration, the SD-WAN zone status output, and the sniffer output on FortiGate acting as the sender. Exhibit B shows the sniffer output on a FortiGate acting as the receiver.

The administrator configured packet duplication on both FortiGate devices. The sniffer output on the sender FortiGate shows that FortiGate forwards an ICMP echo request packet over three overlays, but it only receives one reply packet through T_INET_1_0.

Based on the output shown in the exhibits, which two reasons can cause the observed behavior? (Choose two.)

  1. On the receiver FortiGate, packet-de-duplication is enabled.
  2. The ICMP echo request packets sent over T_INET_0_0 and T_MPLS_0 were dropped along the way.
  3. The ICMP echo request packets received over T_INET_0_0 and T_MPLS_0 were offloaded to NPU.
  4. On the sender FortiGate, duplication-max-num is set to 3.

Answer(s): A,D



Which SD-WAN setting enables FortiGate to delay the recovery of ADVPN shortcuts?

  1. hold-down-time
  2. link-down-failover
  3. auto-discovery-shortcuts
  4. idle-timeout

Answer(s): A



Refer to the exhibits.

Exhibit A -



Exhibit B -

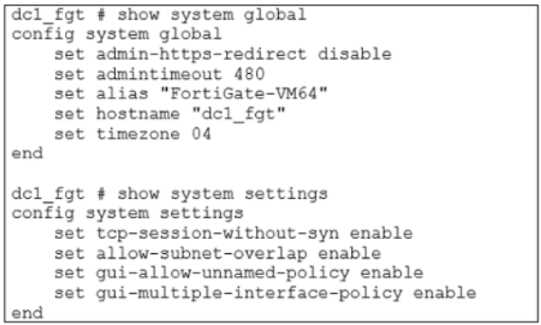

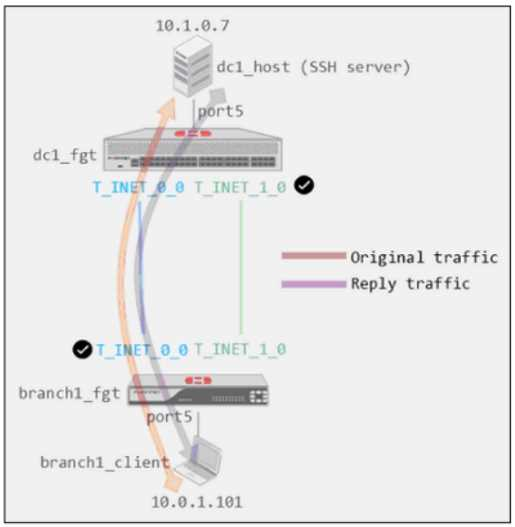

Exhibit A shows a site-to-site topology between two FortiGate devices: branch1_fgt and dc1_fgt. Exhibit B shows the system global and system settings configuration on dc1_fgt.

When branch1_client establishes a connection to dc1_host, the administrator observes that, on dc1_fgt, the reply traffic is routed over T_INET_0_0, even though T_INET_1_0 is the preferred member in the matching SD-WAN rule.

Based on the information shown in the exhibits, what configuration change must be made on dc1_fgt so dc1_fgt routes the reply traffic over T_INET_1_0?

  1. Enable auxiliary-session under config system settings.
  2. Disable tp-session-without-syn under config system settings.
  3. Enable snat-route-change under config system global.
  4. Disable allow-subnet-overlap under config system settings.

Answer(s): A



What three characteristics apply to provisioning templates available on FortiManager? (Choose three.)

  1. You can apply a system template and a CLI template to the same FortiGate device.
  2. A CLI template can be of type CLI script or Perl script.
  3. A template group can include a system template and an SD-WAN template.
  4. A template group can contain CLI templates of both types.
  5. Templates are applied in order, from top to bottom.

Answer(s): B,D,E

Explanation:

According to the FortiManager Administration Guide, provisioning templates are used to configure

FortiGate devices in a consistent and efficient way. There are different types of templates, such as system, IPsec, SD-WAN, certificate, and CLI templates. Some characteristics of provisioning templates are:

You can apply a system template and a CLI template to the same FortiGate device, as long as they do not have conflicting settings1.

A CLI template can be of type CLI script or Perl script. A CLI script template contains FortiOS CLI commands, while a Perl script template contains Perl code that can generate FortiOS CLI commands2.

A template group can include a system template and an SD-WAN template, as well as other types of templates. A template group is a collection of templates that can be applied to multiple devices at once3.

A template group can contain CLI templates of both types, as long as they do not have conflicting settings2.

Templates are applied in order, from top to bottom. The order of the templates in a template group determines the order in which they are applied to the devices3.
