FCSS_CDS_AR-7.6 Exam Questions and Answers

QUESTION: 9

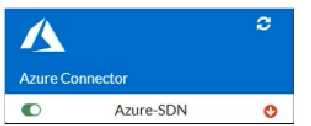

Refer to the exhibit.

You are troubleshooting a Microsoft Azure SDN connector issue on your FortiGate VM in Azure.
Which command can you use to examine details about API calls sent by the connector?

diag debug application cloud-connector -l
diag test application azd 1
diag debug application azd 1
get system sdn-connector

Answer(s): C

Reveal Solution Next Question

As part of your organization's monitoring plan, you have been tasked with obtaining and analyzing detailed information about the traffic sourced at one of your FortiGate EC2 instances.
What can you do to achieve this goal?

Use AWS CloudTrail to capture and then examine traffic from the EC2 instance.
Create a virtual public cloud (VPC) flow log at the network interface level for the EC2 instance.
Add the EC2 instance as a target in CloudWatch to collect its traffic logs.
Configure a network access analyzer scope with the EC2 instance as a match finding.

Answer(s): B

Reveal Solution Next Question

QUESTION: 11

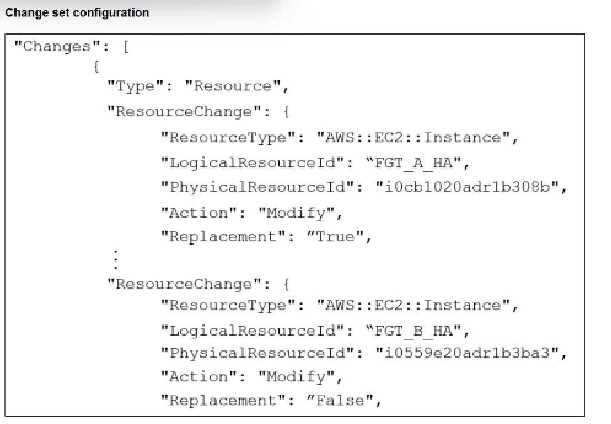

Refer to the exhibit.

Refer to the exhibit.
You are managing an active-passive FortiGate HA cluster in AWS that was deployed using

CloudFormation. You have created a change set to examine the effects of some proposed changes to the current infrastructure. The exhibit shows some sections of the change set.
What will happen if you apply these changes?

This deployment can be done without any traffic interruption.
Both FortiGate VMs will get a new PhysicalResourceId.
The updated FortiGate VMs will not have the latest configuration changes.
CloudFormation checks if you will surpass your account quota.

Answer(s): B

Reveal Solution Next Question

QUESTION: 12

Refer to the exhibit.

What is the purpose of this section of an Azure Bicep file?

To restrict which FortiOS versions are accepted for deployment
To indicate the correct FortiOS upgrade path after deployment
To add a comment with the permitted FortiOS versions that can be deployed
To document the FortiOS versions in the resulting topology

Answer(s): A

Reveal Solution Next Question

QUESTION: 13

In an SD-WAN TGW Connect topology, which three initial steps are mandatory when routing traffic from a spoke VPC to a security VPC through a Transit Gateway? (Choose three.)

From the security VPC TGW subnet routing table, point 0.0.0.0/0 traffic to the FortiGate internal port.
From the security VPC TGW subnet routing table, point 0.0.0.0/0 traffic to the TGW.
From both spoke VPCs and the security VPC, point 0.0.0.0/0 traffic to the Internet Gateway.
From the security VPC FortiGate internal subnet routing table, point 0.0.0.0/0 traffic to the TGW.
From the spoke VPC internal routing table, point 0.0.0.0/0 traffic to the TGW.

Answer(s): A,D,E

Reveal Solution Next Question

QUESTION: 14

An AWS administrator must ensure that each member of the cloud deployment team has the correct permissions to deploy and manage resources using CloudFormation. The administrator is researching which tasks must be executed with CloudFormation and therefore require CloudFormation permissions.
Which task is run using CloudFormation?

Deploying a new pod with a service in an Elastic Kubernetes Service (EKS) cluster using the kubectl command
Installing a Helm chart to deploy a FortiWeb ingress controller in an EKS cluster
Creating an EKS cluster with the eksctl create cluster command
Changing the number of nodes in an EKS cluster from AWS CloudShell

Answer(s): D

Reveal Solution Next Question

QUESTION: 15

An administrator decides to use the Use managed identity option on the FortiGate SDN connector with Microsoft Azure. However, the SDN connector is failing on the connection.
What must the administrator do to correct this issue?

Make sure to add the Client Secret on the FortiGate side of the configuration.
Make sure to add the Tenant ID on the FortiGate side of the configuration.
Make sure to enable the system-assigned managed identity on Azure.
Make sure to set the type to system managed identity on FortiGate SDN connector settings.

Answer(s): C

Reveal Solution Next Question

QUESTION: 16

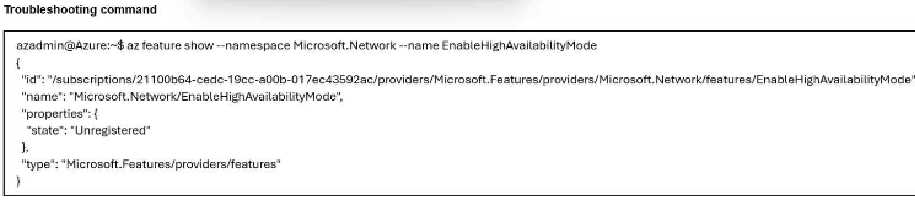

Refer to the exhibit.

Refer to the exhibit.
A Managed Security Service Provider (MSSP) administration team is trying to deploy a new HA cluster in Azure to filter traffic to and from a client that is also using Azure. However, every deployment attempt fails, and only some of the resources are deployed successfully.
While troubleshooting this issue, the team runs the command shown in the exhibit.
What are the implications of the output of the command?

The team will not be able to deploy an A-P FortiGate HA cluster with Azure Gateway Load Balancer.
The team will not be able to deploy an A-P FortiGate HA cluster with Azure Load Balancer.
The team will not be able to deploy an active-passive (A-P) FortiGate high availability (HA) cluster with SDN connector.
The team will not be able to deploy an active-active (A-A) FortiGate HA cluster with Azure Load Balancer.

Answer(s): D

Reveal Solution Next Question
