Citrix Architecting a Networking Solution 1Y0-440 Exam Questions in PDF

Scenario: A Citrix Architect needs to deploy SAML integration between NetScaler (Identity Provider) and ShareFile (Service Provider). The design requirements for SAML setup are as follows:

-NetScaler must be deployed as the Identity Provider (IDP).
-ShareFile server must be deployed as the SAML Service Provider (SP).
-The users in domain workspacelab.com must be able to perform Single Sign-on to ShareFile after authenticating at the NetScaler.
-The User ID must be UserPrincipalName.
-The User ID and Password must be evaluated by NetScaler against the Active Directory servers SFO-ADS-001 and SFO-ADS-002.
-After successful authentication, NetScaler creates a SAML Assertion and passes it back to ShareFile.
-Single Sign-on must be performed.
-SHA 1 algorithm must be utilized.

The verification environment details are as follows:

-Domain Name: workspacelab.com
-NetScaler AAA virtual server URL https://auth.workspacelab.com
-ShareFile URL https://sharefile.workspacelab.com

Which SAML IDP action will meet the design requirements?

What can help a Citrix Architect prepare to discuss time scales and resource requirements?

Scenario: A Citrix Architect holds a design discussion with a team of Workspacelab members, and they capture the following requirements for the NetScaler design project.


-A pair of NetScaler MPX appliances will be deployed in the DMZ network and another pair in the internal network.
-High availability will be accessible between the pair of NetScaler MPX appliances in the DMZ network.
-Multi-factor authentication must be configured for the NetScaler Gateway virtual server.
-The NetScaler Gateway virtual server is integrated with the StoreFront server.
-Load balancing must be deployed for users from the workspacelab.com domain.
-The workspacelab users should be authenticated using Cert Policy and LDAP.
-All the client certificates must be SHA 256-signed, 2048 bits, and have UserPrincipalName as the subject.
-Single Sign-on must be performed between StoreFront and NetScaler Gateway.

After deployment, the architect observes that LDAP authentication is failing.

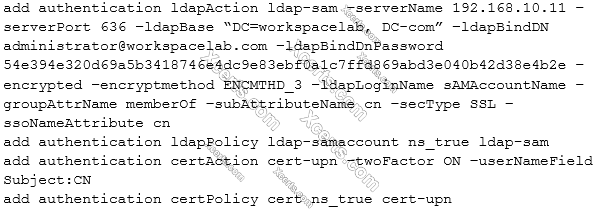

Click the Exhibit button to review the output of aaad debug and the configuration of the authentication policy.

Exhibit 1


Exhibit 2


What is causing this issue?

Which markup language can a Citrix use along with NITRO API to create a StyleBook?

Scenario: The Workspacelab team has configured their NetScaler Management and Analytics (NMAS) environment. A Citrix Architect needs to log on to the NMAS to check the settings.

Which two authentication methods are supported to meet this requirement? (Choose two.)
