QUESTION: 6

DRAG DROP (Drag and Drop is not supported)

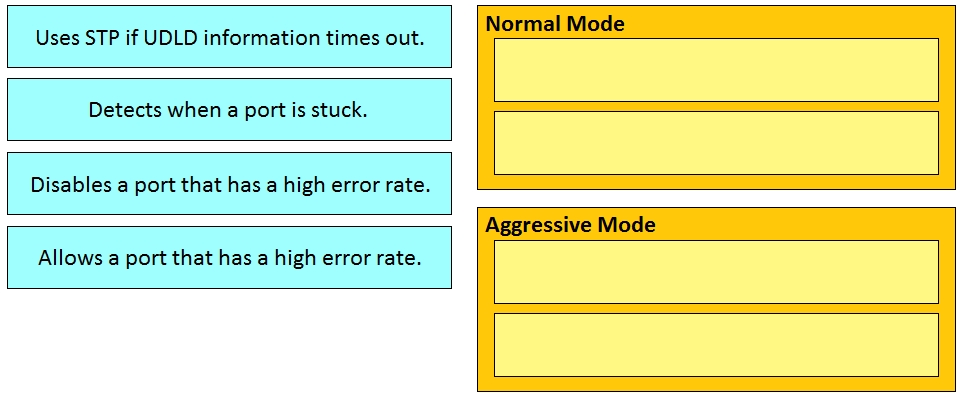

Drag the appropriate from the left onto the current UDLD modes of operation on the right.

See Explanation section for answer.

Answer(s): A

Explanation:

Reference:

https://www.cisco.com/c/en/us/support/docs/lan-switching/spanning-tree-

protocol/10591-77.html

Reveal Solution Next Question

QUESTION: 7

What is a design consideration when implementing FSPF?

Routes are based on the domain ID.
Routes are based on the distance vector protocol.
FSPF runs only on F Ports.
FSPF runs on a per-chassis basis.

Answer(s): A

Reference:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/5_0/configuration/guide s/ fabric/nxos/cli_fabric/fspf.html

Reveal Solution Next Question

QUESTION: 8

Which two features are provided by deploying an OOB management network in a Cisco Nexus data center? (Choose two.)

Layer 3 path for monitoring purposes
Layer 2 path for server traffic
Layer 2 path for a vPC peer link
Layer 3 path for vPC keepalive packets
Layer 3 path for server traffic

Answer(s): B,C

Reference:

https://www.cisco.com/c/dam/en/us/td/docs/solutions/CVD/Aug2014/CVD-

DataCenterDesignGuide-AUG14.pdf

Reveal Solution Next Question

The management of the Cisco Nexus switches is provided over an isolated put-of-band network. The VDC feature is configured on the Cisco Nexus core switches. How is out-of-band management access provided for each VDC?

All the VDC have the same out-of-band IP address.
Each VDC has a dedicated out-of-band Ethernet management port.
Each VDC has a unique out-of-band IP address from the same IP subnet.
Each VDC has a unique out-of-band IP address from different IP subnets among VDCs.

Answer(s): C

Reveal Solution Next Question

QUESTION: 10

Which two configurations allow for routing traffic between two VDCs? (Choose two.)

Connect the VDCs to an external Layer 3 device.
Cross-connect the ports between the VDCs.
Create VRF-aware software infrastructure interfaces.
Create a policy map in the default VDC that routes traffic between the VDCs.
Create interfaces in the VDC that can be accessed by another VDC.

Answer(s): A,D

Explanation:

The Cisco NX-OS software does not support direct communication between VDCs on a single physical device. You must make a physical connection from a port allocated to one VDC to a port allocated to the other VDC to allow the VDCs to communicate.

Reveal Solution Next Question
