QUESTION: 6

Review the following expression rule:

union(ri!fruit, ri!vegetables)

The rule inputs are configured as text arrays.

What is the expected output?

All items in ri!fruit followed by items in ri!vegetables, including duplicate values.
Only items that are in both ri!fruit and ri!vegetables.
All items in ri!fruit and ri!vegetables combined, with duplicates removed.

Answer(s): C

Explanation:

The union() function in Appian combines the elements of two or more arrays into a single array, removing any duplicate values. Given that the rule inputs ri!fruit and ri!vegetables are configured as text arrays, the expected output of union(ri!fruit, ri!vegetables) would be an array containing all unique items from both ri!fruit and ri!vegetables, with any duplicates removed. This function is useful for combining lists without repetition, ensuring a clean, unique set of elements.

Reference:

Appian Documentation - Expression Functions

Reveal Solution Next Question

QUESTION: 7

You need to pass data into a process from other parts of your Appian application.

Which configuration is required in your process model?

Toggle the Parameter field to 'True" on the configuration of a process variable.
Create process variables on the Data Management tab of Process Model Properties.
Add an interface as a Process Start Form.

Answer(s): B

Explanation:

To pass data into a process from other parts of an Appian application, you need to configure process variables. This is done on the Data Management tab within the Process Model Properties. Here, you can define process variables that can receive data from external sources, such as interfaces, other processes, or direct user input, when the process is started. These variables serve as placeholders for the data that will be used throughout the execution of the process.

Reference:

Appian Documentation - Process Model Properties

Reveal Solution Next Question

QUESTION: 8

HOTSPOT (Drag and Drop is not supported)

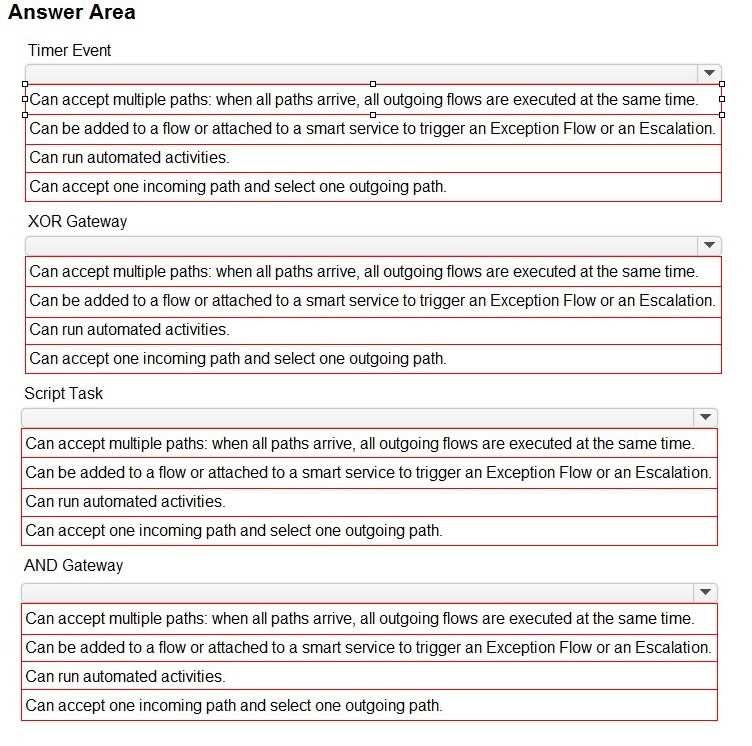

Match each node to the correct description for the node.

Note: Each description will be used once. To change your responses, you may deselect your response by clicking the blank space at the top of the selection list.

See Explanation section for answer.

Answer(s): A

Explanation:

Timer Event: Can accept one incoming path and select one outgoing path.

XOR Gateway: Can accept multiple paths; when all paths arrive, all outgoing flows are executed at the same time.

Script Task: Can run automated activities.

AND Gateway: Can accept multiple paths; when all paths arrive, all outgoing flows are executed at the same time.

Timer Events in a process model are used to delay the process flow until a specific time condition is met. They are configured to have one input and one output.

XOR Gateways are decision points that can diverge the process into different paths based on conditions. If used to converge, they bring together different paths but will continue as soon as one of the incoming paths is activated.

Script Tasks are automated activities within a process that run scripts or expressions without user intervention.

AND Gateways are used to synchronize parallel flows in a process.
When used to converge parallel paths, they wait for all incoming paths to complete before continuing.

Reference:

Appian Documentation: Process Modeler Objects

Reveal Solution Next Question

QUESTION: 9

You have a record type, ABC_Author, backed by a database table.

You need to retrieve the total number of authors without loading all the data.

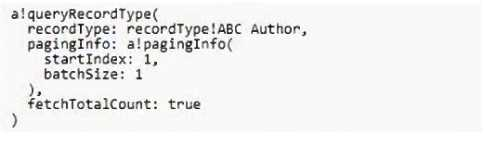

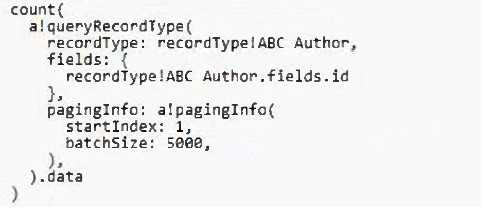

According to Appian best practices, which code snippet accomplishes this goal in the most efficient way?

Answer(s): B

Explanation:

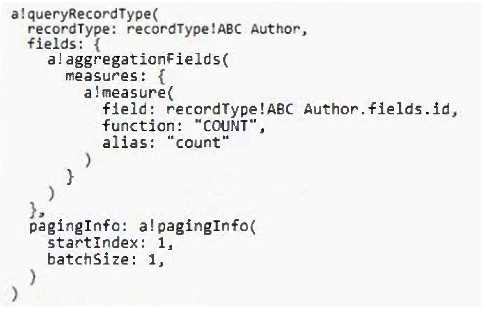

According to Appian best practices, the most efficient way to retrieve the total number of authors without loading all the data is to use a query that includes an aggregation function. Option B uses an aggregation field with a COUNT function, which is designed to return the number of rows that match a query without the need to retrieve and load all row data, thus optimizing performance.

Reference:

Appian Documentation: a!queryRecordType Function

Reveal Solution Next Question

QUESTION: 10

You are creating a new customer onboarding application. Documents are required from customers for verification and onboarding purposes. You need to store these documents within Appian.

Which two areas in Appian should you configure? (Choose two.)

Knowledge Center
Decision Object
Folder
Feed

Answer(s): A,C

Explanation:

In Appian, to store documents such as those required for customer onboarding, you should configure a Knowledge Center and within that, Folders. The Knowledge Center in Appian serves as the top- level container for storing and organizing documents and folders. Folders within a Knowledge Center provide a way to categorize and manage access to documents, making them an essential part of document management in Appian applications. Decision Objects and Feeds are not related to document storage.

Reference:

Appian Documentation - Knowledge Centers and Folders

Reveal Solution Next Question
