Alcatel-Lucent 4A0-M01 Exam (page: 6)
Alcatel-Lucent IP/MPLS Mobile Backhaul Transport
Updated on: 25-Dec-2025

Viewing Page 6 of 31
4A0-M01 PDF 150 Questions

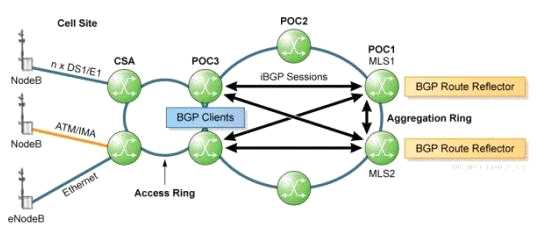

Click on the exhibit.



Given the topology shown:
With Border Gateway Protocol (BGP) peer tracking enabled, what will router MLS1 do if the Interior

Gateway Protocol (IGP) removes the route to its BGP peer MLS2 system ID?

  1. It will look for an alternate route reflection peer
  2. It will shut down BGP route reflection
  3. It will set its peering session state to connect
  4. It will try to peer with one of the POC3 routers

Answer(s): C



Click on the exhibit.



Given the topology and the Multiprotocol Label Switching (MPLS) Label Switch Path (LSP) and path configurations shown:
You wish to protect the LSP POC3-1_POC3-2 with a manual bypass tunnel.
Which statement correctly describes the manual bypass tunnel configuration requirement for the ring topology shown?

  1. All nodes must have manual bypass enabled in the MPLS context
  2. All nodes must have fast reroute facility enabled in the MPLS context.
  3. The bypass tunnel first hop must avoid the protected LSP's tail end router
  4. Each node must have a bypass-only tunnel configured to terminate on POC3-2

Answer(s): C

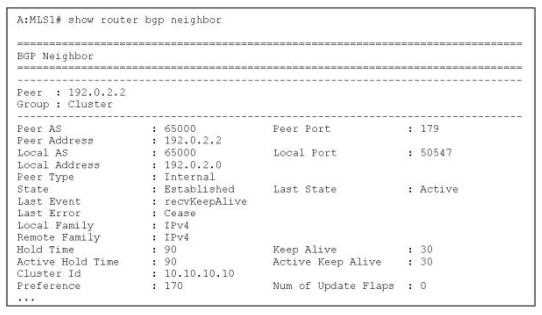

Click on the exhibit.



Which field in the show command result indicates that the router MLS1 is configured as a Border Gateway Protocol (BGP) route reflector?

  1. Peer Type;
  2. Group:
  3. Peer AS:
  4. Cluster Id:

Answer(s): D

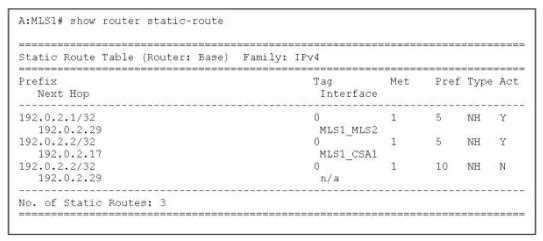

Click on the exhibit.



With the information given, why is the second static route to prefix 192.0.2.2/32 inactive?

  1. The second route is a black hole static route
  2. The static route is missing a next hop entry
  3. A route with a better preference is active
  4. The next hop interface is unreachable

Answer(s): C

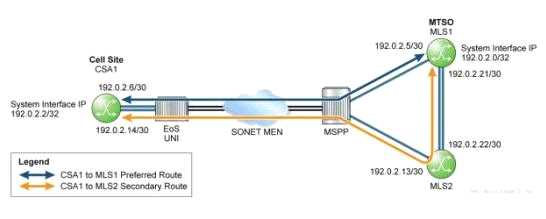

Click on the exhibit.



You wish to configure a secondary static route on MLS1 targeting the CSA1 system interface. The route must forward packets over the secondary route path as shown in the diagram. Given the following:
· BFD must be enabled on the preferred route
· BFD is configured on the interfaces
· The MLS1 router must choose the preferred route in normal operations Which command example correctly configures the secondary static route on MLS1?

  1. configure router static-route 192 0.2.2/32 next-hop 192.0.2.6 bfd-enable
  2. configure router static-route 192.0.2.6/32 next-hop 192.0.2.22 bfd-enable
  3. configure router static-route 192.0.2.2/32 next-hop 192.0.2.14 precedence 10
  4. configure router static-route 192.0.2.2/32 next-hop 192.0.2.22 precedence 10

Answer(s): D



Viewing Page 6 of 31
