Salesforce Analytics-DA-201 Exam (page: 3)
Salesforce Certified Tableau Data Analyst
Updated on: 11-Dec-2025

Explanation:

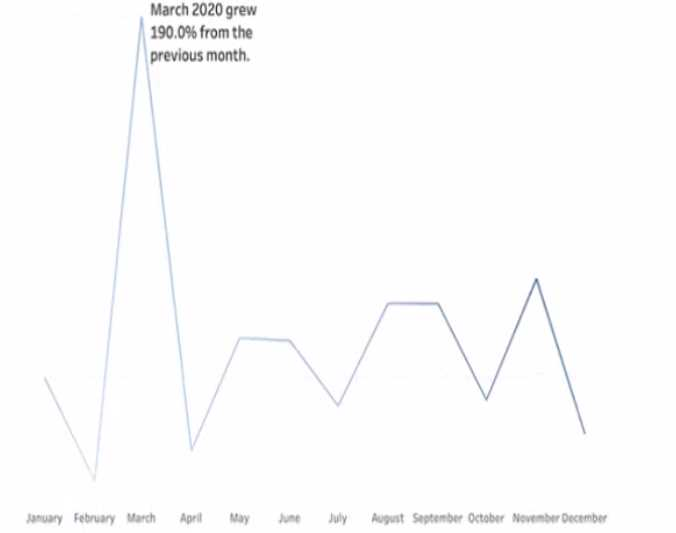

To add a comment to March 2020 on a line chart, you need to annotate that mark. You can right-click on the mark and select Annotate > Mark from the menu. This will open a dialog box where you can type your comment and format it as you like. You can also drag and drop the annotation to position it on the worksheet. Dragging the growth rate to Text on the Marks card will add a label to every mark on the line chart, enabling captions will show a description of the worksheet at the bottom, and adding a tooltip will show a text box when users hover over a mark.

Reference:

https://help.tableau.com/current/pro/desktop/en-us/formatting_annotations.htm https://help.tableau.com/current/pro/desktop/en-us/formatting_annotations_create.htm To add a comment to a specific point on a line chart, such as March 2020 in the provided visualization, you would use the 'Annotate' feature. Right-clicking on the data point for March 2020 and selecting 'Annotate' allows you to add a text annotation directly to the chart, which can be used to highlight and comment on that particular data point.

Explanation:

To combine two sets, they must have at least one dimension in common. In this case, Customers of 2020 and Top N Customers both have Customer Name as a dimension, so they can be combined using set operations such as union, intersection, or difference. Sellers of 2020 and Top N Products have different dimensions (Seller Name and Product Name), so they cannot be combined.

Reference:

https://help.tableau.com/current/pro/desktop/en-us/sets.htm https://help.tableau.com/current/pro/desktop/en-us/sets_create.htm#combine-sets In Tableau, sets can be combined if they are created from the same dimension. From the options provided, "Customers of 2020" and "Top N Customers" are likely created from the same dimension (Customers). Therefore, these two sets can be combined to create a new set that includes or excludes members based on the combined criteria. Combining sets like "Top N Products" with "Customers of 2020" would not be feasible unless they are from the same dimension, which is typically not the case.

Explanation:

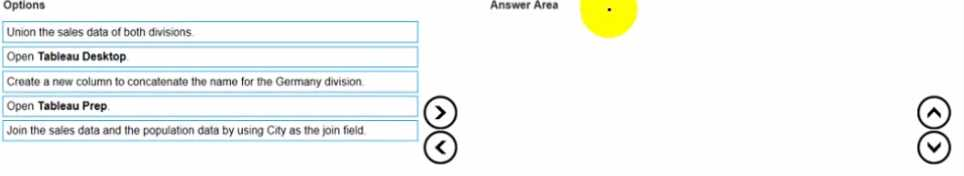

1) Open Tableau prep
2) Create a new column ...
3) Union the sales ...
4) Join the sales ...

Reference:

https://help.tableau.com/current/prep/en-us/prep_get_started.htm https://help.tableau.com/current/prep/en-us/prep_union.htm https://help.tableau.com/current/prep/en-us/prep_clean.htm https://help.tableau.com/current/prep/en-us/prep_join.htm

Explanation:

Explanation:

To filter the table to show the members of the Top10 set and the Bottom10 set, you need to do the following steps:

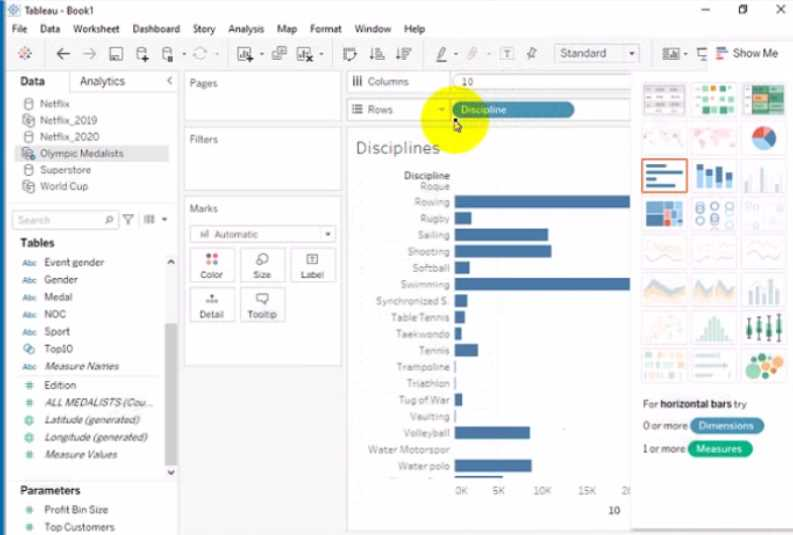

Open the link to Book1 found on the desktop. This will open the Tableau workbook that contains the Disciplines worksheet.
Click on the Disciplines tab at the bottom of the workbook to open the worksheet. You will see a table that shows the disciplines, sales, and profit for each salesperson.

Click on the drop-down arrow next to Salesperson on the Filters shelf. This will open a menu that allows you to filter by different criteria.
Select Set from the menu. This will show you the sets that are available for the Salesperson field. You will see Top10 and Bottom10 as two sets that have been created based on the sales ranking. Check the boxes next to Top10 and Bottom10. This will filter the table to show only the members of these two sets. You can also click on All to deselect all other values. Click OK to apply the filter. You will see that the table now shows 20 rows, 10 for each set.

Reference:

https://help.tableau.com/current/pro/desktop/en-us/sets.htm https://help.tableau.com/current/pro/desktop/en-us/filtering.htm

Explanation:

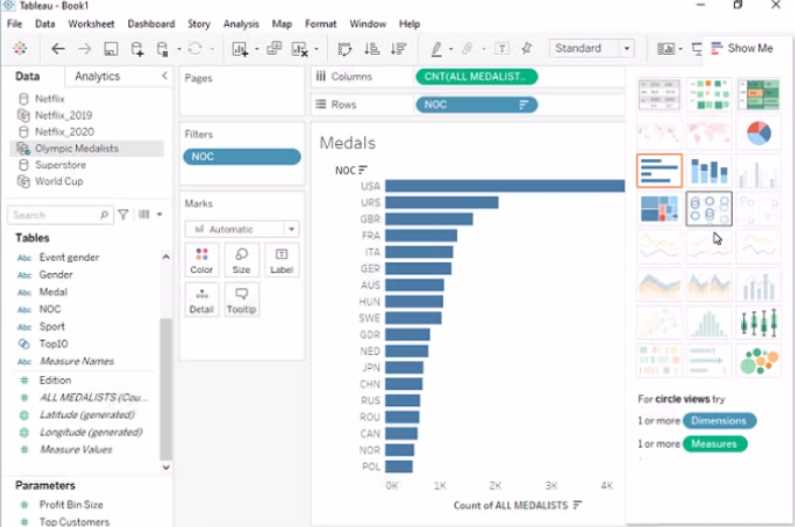

To filter the table to show the Top 10 NOC based on the number of medals won, you need to do the following steps:
Open the link to Book1 found on the desktop. This will open the Tableau workbook that contains the Disciplines worksheet.
Click on the Disciplines tab at the bottom of the workbook to open the worksheet. You will see a table that shows the NOC, discipline, and medals for each country.

Drag Medals from the Measures pane to the Filters shelf. This will open a dialog box that allows you to filter by different criteria.
Select Top from the dialog box. This will show you options to filter by the top or bottom values of a field.
Enter 10 in the text box next to By field. This will filter by the top 10 values of Medals. Select NOC from the drop-down list next to By field. This will filter by the top 10 values of NOC based on Medals.
Click OK to apply the filter. You will see that the table now shows only 10 rows, one for each NOC with the highest number of medals.

Reference:

https://help.tableau.com/current/pro/desktop/en-us/filtering.htm https://help.tableau.com/current/pro/desktop/en-us/filtering_topn.htm

Explanation:

To split the Customer Name field into two fields named First Name and Last Name, you need to do the following steps:
Open the link to Book1 found on the desktop. This will open the Tableau workbook that uses the Superstore data source.
Go to the Data Source tab at the bottom of the workbook to see the data source page. You will see a table that shows the fields and values from the Superstore data source. Right-click on Customer Name in the table and select Split from the menu. This will split the field into two fields based on a separator, which is a space by default. You will see two new fields named Customer Name - Split 1 and Customer Name - Split 2 in the table. Right-click on Customer Name - Split 1 and select Rename from the menu. Type First Name as the new name and press Enter. This will rename the field as First Name. Right-click on Customer Name - Split 2 and select Rename from the menu. Type Last Name as the new name and press Enter. This will rename the field as Last Name.

Reference:

https://help.tableau.com/current/pro/desktop/en-us/datasource_prepare.htm https://help.tableau.com/current/pro/desktop/en-us/split.htm https://help.tableau.com/current/pro/desktop/en-us/renamefield.htm

Explanation:

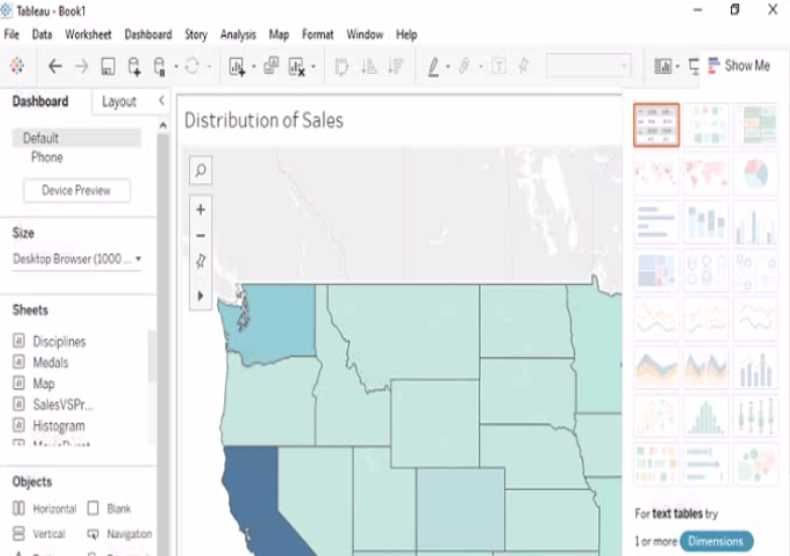

To create a filled map to show the distribution of total Sales by State across the United States, you need to do the following steps:
Open the link to Book1 found on the desktop. This will open the Tableau workbook that uses the Superstore data source.
Click on the Map tab at the bottom of the workbook to open the Map worksheet. You will see a blank worksheet with no marks.
Drag State from the Dimensions pane to Detail on the Marks card. This will create a map that shows each state as a mark. You may need to zoom in or out to see the whole map.

Drag Sales from the Measures pane to Color on the Marks card. This will create a filled map that shows the distribution of total Sales by State across the United States. The color legend will show you the range of values and colors for Sales.
Optionally, you can adjust the color scheme, transparency, size, and borders of the marks by clicking on the Color menu on the Marks card. You can also add labels, tooltips, or filters to enhance your map.

Reference:

https://help.tableau.com/current/pro/desktop/en-us/maps.htm https://help.tableau.com/current/pro/desktop/en-us/maps_howto_filled.htm https://help.tableau.com/current/pro/desktop/en-us/marks_markproperties_color.htm
