An API specification is designed using RAML. What is the next step to create a REST Connector from this API specification?
Answer(s): B
API Exchange creates REST conenctor automtaically once API is published. Hence correct answer is Publish the API specification to Any point Exchange

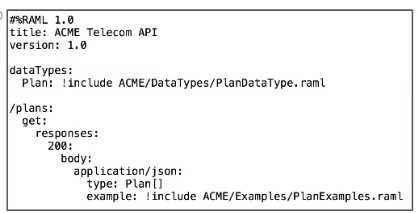

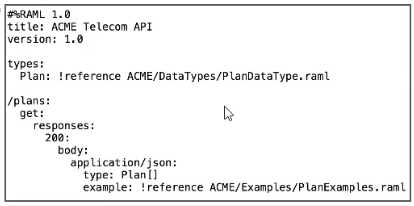

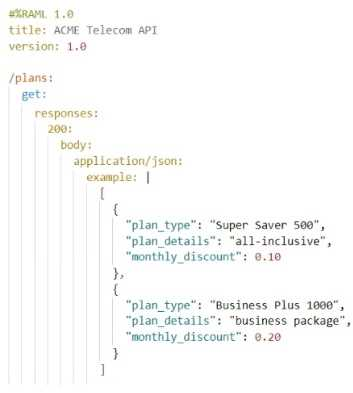

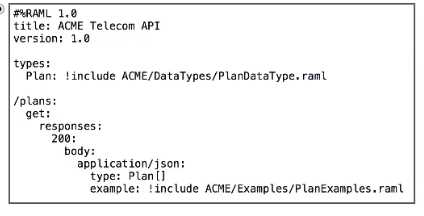

Refer to the exhibit.The API needs to be updated using the company-wide standard for the Plan data type. The Object data type has already been published in Anypoint Exchange with the global reference .ACME/DataTypes/PlanDataType.raml.What is a valid RAML specification that reuses the Plan data type?A)B)C)D)
Answer(s): D
As can be seen in RAML, POST expects input in application/json format which eliminates two of the options as two options are in xml format.Now out of the two remaining options, one has id field in request which is only mentioned for get response and not for POST request. Hence id field is not expected in POST request.Hence correct answer is{"name": "GoerdiLa Forge","address": "1 Westland CA","customer_since": "2014-01-04","balance": "4829.29","bank_agend_id": "12556"}
What execution model is used by For Each and Batch Job scopes?
Answer(s): A

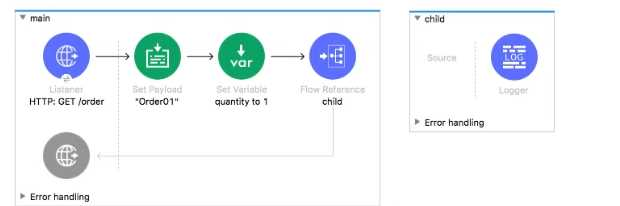

Refer to the exhibit.The main flow contains a Flow Reference for the child flow. What values are accessible in the child flow after a web client submits a request to http://localhost:8081/order? color=red?

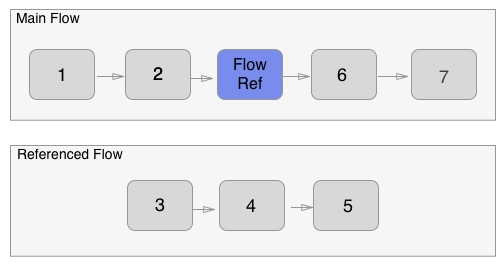

Flow Reference ComponentFlow Reference routes the Mule event to another flow or subflow, executes all processors in the referenced flow, and then routes the event back within the same Mule application. The following diagram shows the order of processing when one flow references another:When the main flow is triggered, the Mule event travels through and executes the flow until the event reaches the Flow Reference. The event then travels through and executes the referenced flow from beginning to end, and then returns to the main flow. This process enables you to treat the entire referenced flow like a single component in your current flow.Mule Ref Doc : https://docs.mulesoft.com/mule-runtime/4.3/flowref-about Correct answer is payload quantity var color query param

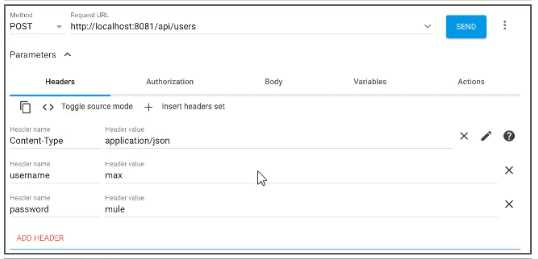

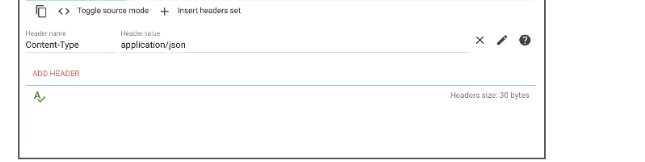

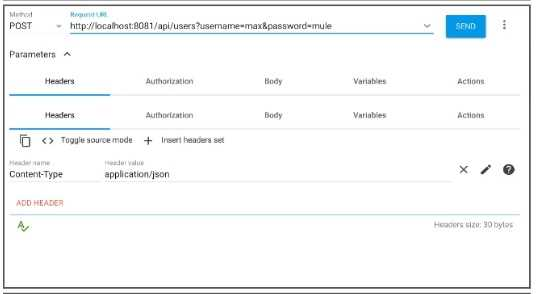

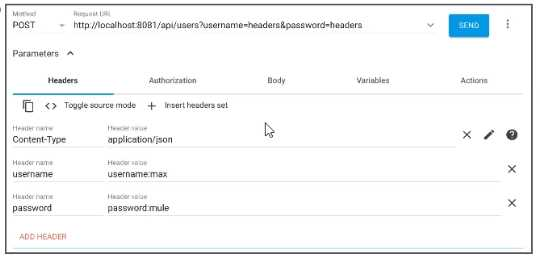

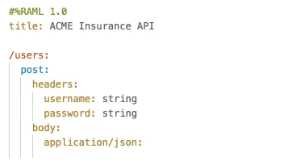

Refer to the exhibit.What is the correct way to create a user?A)B)C)D)

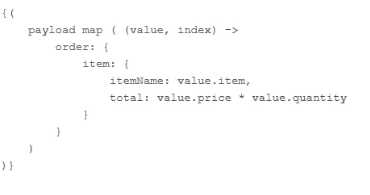

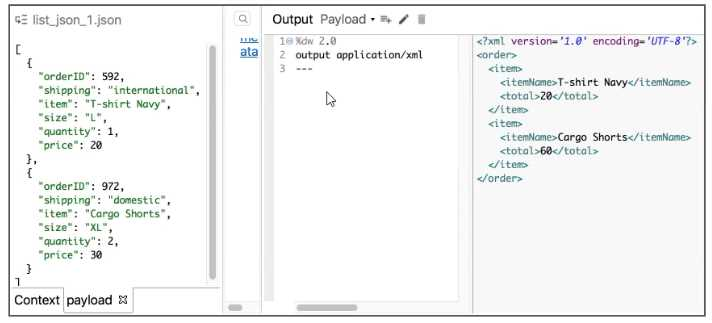

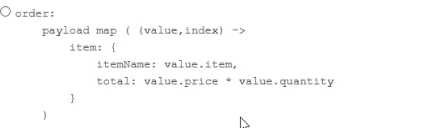

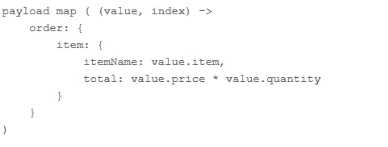

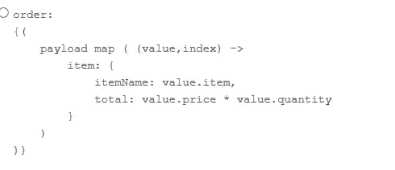

Refer to the exhibit.What Database expression transforms the input to the output? A)B)C)D)
This kind of questions are best solved with filtering technique. Key thing to note here is XML attributes are always access by @ notation. So in this example orderId can be accessed as @OrderId which makes option 3 and option 4 false. Now difference in optin and option 2 is in mapping of lineItemPrice. Correct syntax to format a String in Numbse is value.price as Number. Hence option 2 is correct
An On Table Row Database listener retrieves data from a table that contains record_id, an increasing numerical column.How should the listener be configured so it retrieves new rows at most one time?

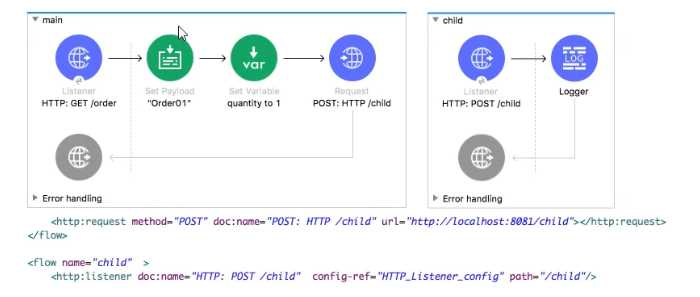

Refer to the exhibits.The main flow contains an HTTP Request. The HTTP Listeners and HTTP Request use default configurations.What values are accessible in the child flow after a web client submits a request to http://localhost:8081/order? col or = red?
