QUESTION: 6

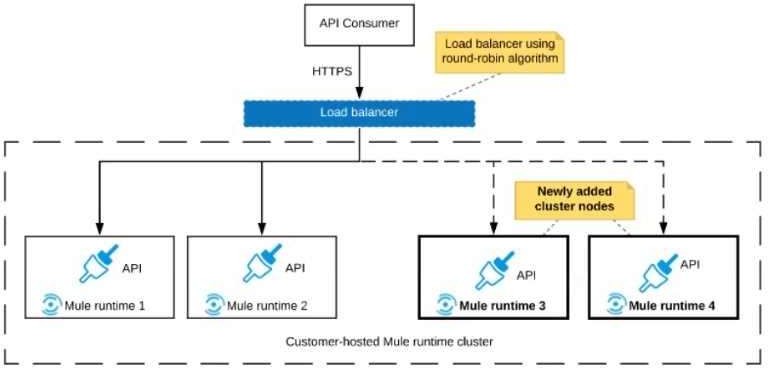

Refer to the exhibit.

An organization uses a 2-node Mute runtime cluster to host one stateless API implementation. The API is accessed over HTTPS through a load balancer that uses round-robin for load distribution.
Two additional nodes have been added to the cluster and the load balancer has been configured to recognize the new nodes with no other change to the load balancer.
What average performance change is guaranteed to happen, assuming all cluster nodes are fully operational?

50% reduction in the response time of the API
100% increase in the throughput of the API
50% reduction In the JVM heap memory consumed by each node
50% reduction In the number of requests being received by each node

Answer(s): D

Reveal Solution Next Question

QUESTION: 7

An integration Mule application is deployed to a customer-hosted multi-node Mule 4 runtime duster. The Mule application uses a Listener operation of a JMS connector to receive incoming messages from a JMS queue.
How are the messages consumed by the Mule application?

Depending on the JMS provider's configuration, either all messages are consumed by ONLY the primary cluster node or else ALL messages are consumed by ALL cluster nodes
Regardless of the Listener operation configuration, all messages are consumed by ALL cluster nodes
Depending on the Listener operation configuration, either all messages are consumed by ONLY the primary cluster node or else EACH message is consumed by ANY ONE cluster node
Regardless of the Listener operation configuration, all messages are consumed by ONLY the primary cluster node

Answer(s): C

Explanation:

Correct answer is Depending on the Listener operation configuration, either all messages are consumed by ONLY the primary cluster node or else EACH message is consumed by ANY ONE cluster node
For applications running in clusters, you have to keep in mind the concept of primary node and how the connector will behave. When running in a cluster, the JMS listener default behavior will be to receive messages only in the primary node, no matter what kind of destination you are consuming from. In case of consuming messages from a Queue, you’ll want to change this configuration to receive messages in all the nodes of the cluster, not just the primary.

This can be done with the primaryNodeOnly parameter:
<jms:listener config-ref="config" destination="${inputQueue}" primaryNodeOnly="false"/>

Reveal Solution Next Question

QUESTION: 8

An Integration Mule application is being designed to synchronize customer data between two systems. One system is an IBM Mainframe and the other system is a Salesforce Marketing Cloud (CRM) instance. Both systems have been deployed in their typical configurations, and are to be invoked using the native protocols provided by Salesforce and IBM.

What interface technologies are the most straightforward and appropriate to use in this Mute application to interact with these systems, assuming that Anypoint Connectors exist that implement these interface technologies?

IBM: DB access CRM: gRPC
IBM: REST CRM:REST
IBM: Active MQ CRM: REST
IBM: CICS CRM: SOAP

Answer(s): D

Explanation:

Correct answer is IBM: CICS CRM: SOAP
* Within Anypoint Exchange, MuleSoft offers the IBM CICS connector. Anypoint Connector for IBM CICS Transaction Gateway (IBM CTG Connector) provides integration with back-end CICS apps using the CICS Transaction Gateway.
* Anypoint Connector for Salesforce Marketing Cloud (Marketing Cloud Connector) enables you to connect to the Marketing Cloud API web services (now known as the Marketing Cloud API), which is also known as the Salesforce Marketing Cloud. This connector exposes convenient operations via SOAP for exploiting the capabilities of Salesforce Marketing Cloud.

Reveal Solution Next Question

QUESTION: 9

What is required before an API implemented using the components of Anypoint Platform can be managed and governed (by applying API policies) on Anypoint Platform?

The API must be published to Anypoint Exchange and a corresponding API instance ID must be obtained from API Manager to be used in the API implementation
The API implementation source code must be committed to a source control management system (such as GitHub)
A RAML definition of the API must be created in API designer so it can then be published to Anypoint Exchange
The API must be shared with the potential developers through an API portal so API consumers can interact with the API

Answer(s): A

Explanation:

Context of the question is about managing and governing mule applications deployed on Anypoint platform.
Anypoint API Manager (API Manager) is a component of Anypoint Platform that enables you to manage, govern, and secure APIs. It leverages the runtime capabilities of API Gateway and Anypoint Service Mesh, both of which enforce policies, collect and track analytics data, manage proxies, provide encryption and authentication, and manage applications.
Mule Ref Doc : https://docs.mulesoft.com/api-manager/2.x/getting-started-proxy

Reference:

https://docs.mulesoft.com/api-manager/2.x/api-auto-discovery-new-concept

Reveal Solution Next Question

QUESTION: 10

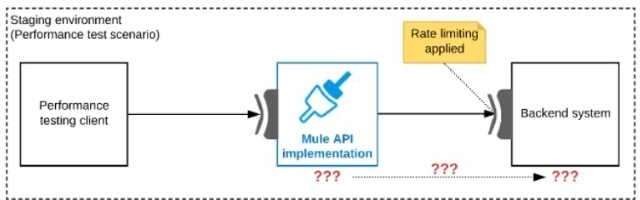

Refer to the exhibit.

One of the backend systems invoked by an API implementation enforces rate limits on the number of requests a particular client can make. Both the backend system and the API implementation are deployed to several non-production environments in addition to production.

Rate limiting of the backend system applies to all non-production environments. The production environment, however, does NOT have any rate limiting.

What is the most effective approach to conduct performance tests of the API implementation in a staging (non-production) environment?

Create a mocking service that replicates the backend system's production performance characteristics. Then configure the API implementation to use the mocking service and conduct the performance tests
Use MUnit to simulate standard responses from the backend system then conduct performance tests to identify other bottlenecks in the system
Include logic within the API implementation that bypasses invocations of the backend system in a performance test situation. Instead invoking local stubs that replicate typical backend system responses then conduct performance tests using this API Implementation
Conduct scaled-down performance tests in the staging environment against the rate limited backend system then upscale performance results to full production scale

Answer(s): A

Explanation:

Correct answer is Create a mocking service that replicates the backend system’s production performance characteristics. Then configure the API implementation to use the mocking service and conduct the performance tests
* MUnit is for only Unit and integration testing for APIs and Mule apps. Not for performance Testing, even if it has the ability to Mock the backend.
* Bypassing the backend invocation defeats the whole purpose of performance testing. Hence it is not a valid answer.
* Scaled down performance tests cant be relied upon as performance of API's is not linear against load.

Reveal Solution Next Question
